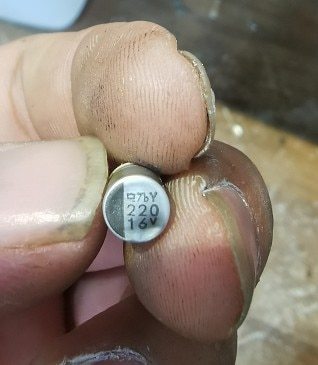

Here are the details regarding the 16V 220µF small electrolytic capacitors commonly prone to failure in automotive ECU audio circuits:
---
Technical Specifications
Parameter Specification
Nominal Capacitance 220 µF (microfarads)
Rated Voltage 16 VDC (maximum DC operating voltage)
Capacitance Tolerance ±20% (standard)
Polarity Polarized
Construction Type Fixed capacitor, aluminum electrolytic
Operating Temperature Range -40°C to +105°C (standard); -55°C to +105°C (wide temperature range)
Rated Life 2,000 hours @ 105°C (standard); 3,000–12,000 hours (long-life type)
Ripple Current 105 mA – 400 mA (@ 105°C, 120Hz–100kHz)
Leakage Current ≤ 0.03 CV or 3 µA (@ 1 minute)
Dissipation Factor (DF) ≤ 20% (@ 120Hz, 20°C)
ESR (Equivalent Series Resistance) 84 mΩ – 340 mΩ (lower for Low-ESR types)
Physical Dimensions (Common Specifications)
Package Type Diameter Height Lead Spacing
Radial Lead (Standard) 6.3 mm 7.0 mm – 12.5 mm 2.5 mm
Radial Lead (Low Profile) 6.3 mm 5.0 mm – 7.0 mm 2.5 mm
SMD (Surface Mount) 6.3 mm 5.4 mm – 8.0 mm -
SMD (Large Package) 8.0 mm 10.0 mm – 12.5 mm -
---
Pin Definition (Radial Lead / SMD)
Identifier Function Description
Positive (+) Anode Long lead (radial) or marked end (SMD)
Negative terminal (-) Cathode Short lead (radial), marked with a gray/black stripe
Case Shielding/Heat dissipation Aluminum case; in some models, the case is connected to the negative terminal
> Polarity identification: The end of the capacitor case with the gray/white stripe is the negative terminal (-), while the other end is the positive terminal (+). SMD packages typically feature a marked line indicating the positive terminal. ---
Typical Application Circuits
1. Automotive ECU Audio Power Amplifier Power Supply Filtering
```
+12V (Regulated automotive battery voltage)
│
├──┬──────────────┐
│ │ │
│ Voltage Regulator IC │
│ (e.g., 7812) │
│ │ │
├──┴──┐ │
│ │ │
├─Vin─┤ │
│ │ │
│ 16V/220µF │
│ C1 (+) │
│ │ │
│ C1 (-) ────────┤→ GND
│ │
├─Vout────────────┤→ +5V / +3.3V Power supply for audio circuit
│ │
│ 16V/220µF │
│ C2 (+) │
│ │ │
│ C2 (-) ────────┤→ GND
│ │
└─────────────────┘
│
GND
```
- C1: Input filter capacitor; smooths the regulator input voltage and suppresses automotive power supply ripple.
- C2: Output filter capacitor; stabilizes the power supply for the audio circuit and reduces noise.
- Characteristics: Automotive power supplies have high noise levels (ignition pulses, alternator ripple), requiring high-capacitance filtering.
2. Audio Signal Coupling/Decoupling Circuit
```
Pre-stage audio output
│
├──┬──────────────┐
│ │ │
│ 16V/220µF │
│ C_couple (+) │
│ │ │
│ C_couple (-) ──┤→ Power amplifier input
│ │
│ 16V/220µF │
│ C_decouple (+) │
│ │ │
│ C_decouple (-)─┤→ GND
│ │
└─────────────────┘
│
GND
```
- C_couple: Coupling capacitor; blocks DC while passing AC to transmit the audio signal.
- C_decouple: Decoupling capacitor; filters out high-frequency power supply noise and stabilizes the operating point.
- Characteristics: Audio circuits require high power supply purity; capacitor failure can lead to noise and distortion.
3. ECU Audio Power Amplifier Output Filtering (BTL/OCL Circuits)
```
Power Amp IC Output
│
├──┬──────────────┐
│ │ │
│ Inductor L │
│ │ │
├──┴──┐ │
│ │ │
├─16V/220µF─┐ │
│ C_filt(+)│ │
│ │ │ │
│ C_filt(-)├─────┤→ Speaker
│ │ │
└───────────┘ │
│
GND
```
- C_filt: LC filter capacitor; filters out high-frequency carrier signals from the switching amplifier to recover the audio signal.
- Characteristics: Class-D topology is commonly used in automotive audio amplifiers; output filter capacitors must withstand significant ripple currents.
---
Key Characteristic Curves
Parameter Condition Typical Value
Capacitance vs. Temp. -40°C to +105°C -20% to +20% (Reference: 20°C)
ESR vs. Temp. -40°C to +105°C ESR increases 2–3 times at low temperatures
Ripple Current vs. Freq. 120Hz / 100kHz Higher ripple current allowed at 100kHz
Lifetime vs. Temp. Per 10°C decrease Lifetime doubles (Arrhenius Law)
Leakage Current vs. Voltage At rated voltage Increases with applied voltage
---
Failure Mode Analysis
Failure Mode Cause Symptoms
Electrolyte Dry-out Long-term high-temp. operation (>105°C) Capacitance drop, ESR increase, top bulging
Leakage Overvoltage, reverse polarity, high temp. Terminal corrosion, PCB contamination, short circuit
Bulging/Bursting Overvoltage, excessive ripple current, aging Top safety vent opens, casing deformation
Open Circuit Terminal oxidation, mechanical stress Loss of circuit function, increased noise
Short Circuit Overvoltage breakdown, manufacturing defects Power supply short, fuse blown, component burnout
Parameter Drift Long-term high temp., frequent charge/discharge cycles Audio distortion, increased power supply ripple
Automotive environmental stresses
Stress Factor | Impact
--- | ---
High engine compartment temperatures | Drastic reduction in capacitor lifespan (Arrhenius effect)
High cold-start current | Inrush current surge; accelerated aging
Battery voltage fluctuations | 14.4V charging voltage approaches the 16V rating; limited safety margin
Vibration/Shock | Terminal fatigue; internal connection breakage
Humidity/Salt spray | Terminal corrosion; increased leakage current
---
Selection recommendations (Automotive audio ECU repair)
Parameter | Recommended Value | Explanation
--- | --- | ---
Rated Voltage | ≥ 25V (if original design was 16V) | Increase voltage margin to handle automotive power fluctuations
Operating Temp. | -55°C to +105°C or higher | Wide-temperature range for engine compartment environments
Lifespan | ≥ 5000 hours @ 105°C | Long-life type to reduce rework
Ripple Current | ≥ 1.5x original design value | Handle high ripple in automotive power systems
ESR | Low ESR (≤ 100 mΩ) | Reduce heat generation; improve efficiency
Brand | Nichicon, Rubycon, Panasonic | Automotive-grade or high-reliability series
Certification | AEC-Q200 (Automotive Electronics Council) | Ensure automotive-grade reliability
---
Replacement models and brands
Model/Series | Manufacturer | Features
--- | --- | ---
Nichicon UHE / UHW | Nichicon | 105°C, 7000 hours, high ripple current
Rubycon YXJ / ZLH | Rubycon | 105°C, low ESR, long life
Panasonic FC / FM | Panasonic | Audio-specific, low distortion
Samwha RC / RD | Samwha | Cost-effective, 105°C, 2000–5000 hours
Vishay 037 RSU | Vishay | Automotive-grade, AEC-Q200 certified
Nippon Chemi-Con KZE | Nippon Chemi-Con | Low impedance, high ripple capability
Elna RFS / RJJ | Elna Audio-grade, SILMIC II Series
SMD Alternative Models
Model Manufacturer Package Features
EEE-FK1C221P Panasonic SMD 8×6.2mm 105°C 2000h, AEC-Q200
UUD1C221MNL1GS Nichicon SMD 8×10mm 105°C 5000h, Low ESR
EMZA160ADA221MF80G Chemi-Con SMD 6.3×5.8mm 105°C 2000h
---
Precautions
- Compatibility: Never substitute automotive-grade capacitors with standard consumer-grade ones in automotive ECU audio circuits. When replacing, ensure:
- Capacitance and voltage ratings match or exceed original specifications (voltage margin ≥ 20%)
- Package dimensions match to ensure proper PCB mounting
- Prioritize 105°C long-life types or AEC-Q200 certified products
- Low-ESR types help reduce heat generation and extend service life
- Installation Instructions:
- Polarity: Install strictly according to markings; reverse polarity will cause the capacitor to explode
- Soldering Temperature: Manual soldering ≤ 350°C, ≤ 3 seconds per pin; reflow soldering peak 260°C, ≤ 10 seconds
- Lead Spacing: Standard radial lead spacing is 2.5mm; ensure PCB hole spacing matches
- Heat Dissipation: Avoid dense clustering in high-ripple-current applications; ensure adequate ventilation
- Aging: Electrolytic capacitors unused for long periods may degrade; applying low-voltage power initially is recommended
- Fault Diagnosis:
- Visual Inspection: Bulging tops, leakage, or corroded leads indicate failure
- Capacitance Measurement: Replace if capacitance deviation exceeds ±20%
- ESR Measurement: Replace if ESR exceeds nominal value by 2–3 times
- Circuit Symptoms: Audio noise, distortion, amplifier protection mode activation, or high power supply ripple
- Preventive Measures:
- Improve ECU heat dissipation to lower capacitor operating temperatures
- Check the vehicle charging system to prevent overvoltage (>14.4V)
- Perform regular inspections and maintenance; replace immediately if bulging is detected
- During repair, replace all capacitors of the same type from the same batch simultaneously; avoid mixing new and old components
---
Summary
The 16V 220µF aluminum electrolytic capacitor is one of the most common and failure-prone passive components in automotive ECU/BCM audio circuits. Failure is primarily caused by harsh automotive operating conditions—such as high temperatures, vibration, and voltage fluctuations—as well as the natural aging of the electrolyte; symptoms include capacitance degradation, increased ESR, and bulging or leakage. When repairing automotive audio ECUs, it is recommended to use components rated for 105°C with long-life and low-ESR characteristics, or those certified to the AEC-Q200 automotive standard; additionally, selecting a higher voltage rating (e.g., 25V) helps ensure reliability. As a critical component in audio circuitry, this capacitor directly impacts sound quality, noise levels, and system stability, making it a "vulnerable small capacitor" that requires special attention during automotive electronics repair.
