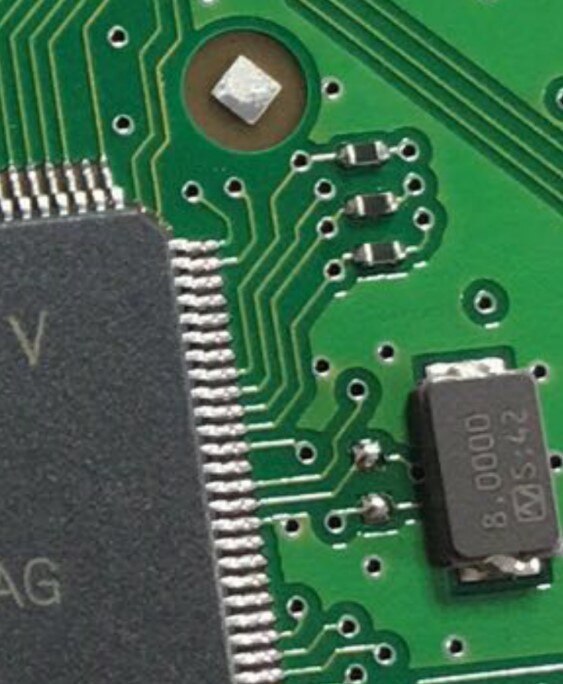

2M25J Ceramic Crystal for Porsche 911 Cayenne Panamera ECU - 25MHz CPU Clock Oscillator SMD
The Ceramic Crystal for Porsche 2M25J parts are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The Ceramic Crystal for Porsche 2M25J components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the Ceramic Crystal for Porsche 2M25J Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The following are detailed specifications for the Porsche 2M25J CPU-side fragile ceramic crystal oscillator:
Technical Specifications
- Frequency: 25 MHz (typical; the “25” in the “2M25J” designation represents 25 MHz)
- Package Type: Surface-mount ceramic package (SMD Ceramic Package)
- Dimensions: Typically 3.2 mm × 2.5 mm or 2.5 mm × 2.0 mm (compact)
- Load capacitance: Typically 12 pF – 20 pF (must match CPU clock input requirements)
- Frequency stability: ±50 ppm to ±100 ppm (typical for ceramic oscillators)
- Operating Temperature Range: -40°C to +85°C (Automotive Grade)
- Aging Rate: ±3 ppm/year (typical)
- Key Features:
- Ceramic material, compact size, low cost
- Built-in load capacitance, reducing the need for external components
- Short startup time, low power consumption
- Fragility: Ceramic packages have low resistance to mechanical shock and are prone to cracking during installation or removal
Fragility Analysis and Repair Precautions
Issue Cause Preventive Measures
Oscillator cracking High brittleness of ceramic material; caused by thermal shock or mechanical stress Use a preheating station to heat evenly and avoid localized high temperatures
Pin detachment Tension or torsion on the pad Secure the PCB before desoldering to prevent movement
Frequency Deviation Damage to internal piezoelectric ceramic layers Verify clock frequency after replacement
Short Circuit Short circuits between adjacent pads caused by broken fragments Clean the pads and ensure no residue remains
Repair Operation Guide
Disassembly Steps
1. Pre-treatment: Remove the BCM module from the vehicle and take photos to document the original wiring.
2. Heating: Use a preheating station set to 150°C – 180°C to evenly heat the back of the PCB for 2–3 minutes.
3. Desoldering: Use a heat gun set to 300°C – 350°C with medium-low airflow, alternating between heating the pins on both sides of the crystal oscillator.
4. Removal: Once the solder has melted, gently grasp the crystal with tweezers; do not pry it off forcefully.
5. Cleaning: Clean the pads with anhydrous alcohol and a soft-bristled brush, and check for cracks or peeling.
Installing the New Crystal
1. Orientation: Confirm that the crystal pins align with the pads. While crystals are typically non-directional, it is recommended to follow the original markings.
2. Pre-tinning: Apply a thin layer of solder paste to the pads and lightly dip the crystal pins in flux.
3. Soldering: Use a heat gun set to 280°C – 320°C to heat evenly from above the crystal, avoiding direct heat on a single point.
4. Cooling: Allow to cool naturally to room temperature; do not blow air on it or cool it rapidly.
5. Testing: Use a multimeter to verify there are no short circuits between pins, and use an oscilloscope to verify the 25 MHz clock output.
Precautions
- Compatibility: Before purchasing, ensure the crystal oscillator frequency is 25 MHz and that the load capacitance matches the 2M25J CPU clock input (typically 12–20 pF).
- Installation Instructions:
- Ceramic crystal oscillators are extremely fragile; do not use metal tools to pry them during installation or removal.
- We recommend using a combination of a preheating station and a heat gun to avoid localized overheating.
- Limit soldering time to 5–10 seconds to prevent thermal stress cracking of the ceramic.
- After replacement, verify the amplitude and frequency stability of the clock signal using an oscilloscope.
- Technical Support: For further technical support, we recommend contacting a Porsche authorized service center or an automotive electronics repair service provider (such as VVDI or Xhorse authorized agents).
Summary
The ceramic crystal oscillator on the side of the Porsche 2M25J CPU is a critical clock component for the BCM module in the 2011–2015 Porsche Cayenne. It uses a 25 MHz ceramic package, offering the advantages of small size and low cost; however, the ceramic material is highly brittle and is extremely prone to cracking during disassembly and repair. Proper preheating, uniform heating, and natural cooling are essential for a successful replacement. It is recommended that a professional technician perform the procedure using a preheating station and a heat gun. After replacement, verify the integrity of the clock signal.
