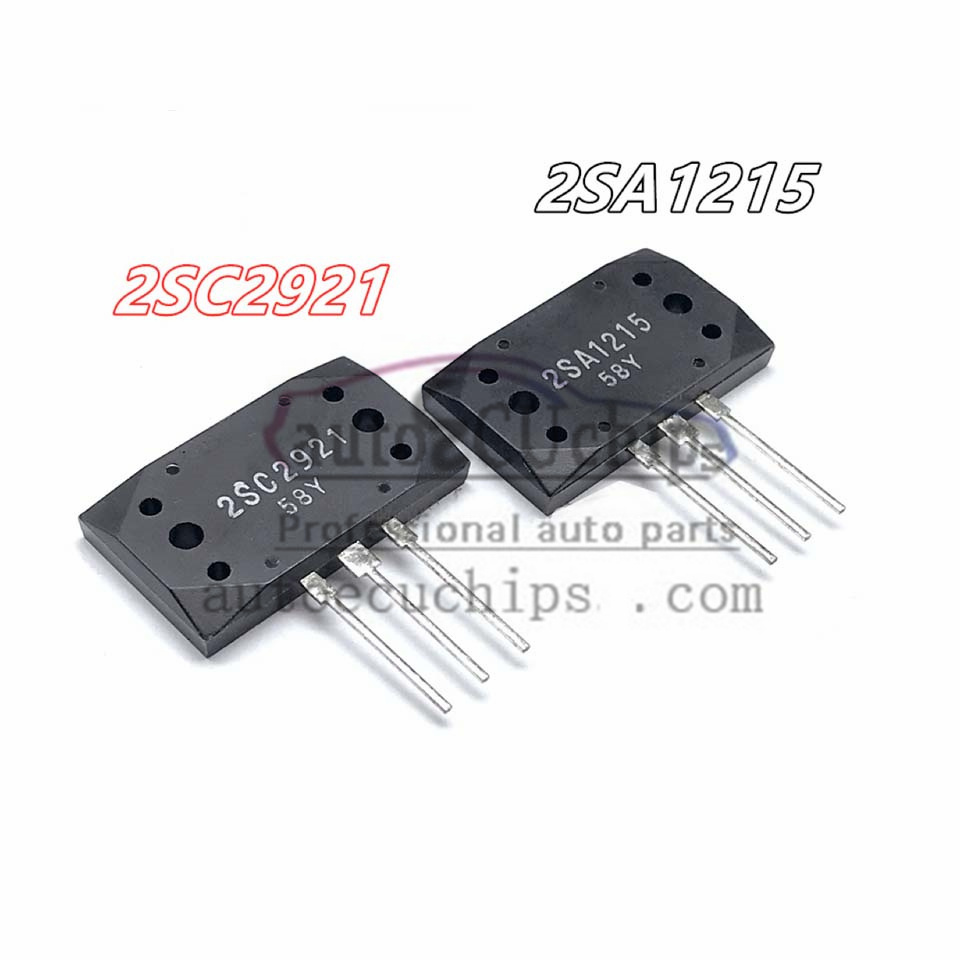

(5Pair=10pcs)A1215 C2921 2SA1215 2SC2921 TO-3P Audio Amplifier Pair tube Repair Driver Chip
The 2SA1215 2SC2921 parts manufactured by SANKEN are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The 2SA1215 2SC2921 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the 2SA1215 2SC2921 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about the 2SA1215 and 2SC2921 chips:
2SA1215 Chip Overview
- Model Number: 2SA1215
- Package Type: MT-200
- Manufacturer: Sanken Electric
- Application Scenario: Mainly used in the output stage of audio amplifiers and general purpose for hi-fi audio amplifiers and other linear applications.
2SA1215 Technical Data
- Maximum collector-emitter voltage (Vceo): -160 V
- Maximum emitter-base voltage (Veb): -5 V
- Maximum collector current (Ic): -15 A
- Maximum power dissipation (Pc): 150 W
- Maximum operating junction temperature (Tj): 150°C
- Conversion frequency (ft): 50 MHz
- Collector capacitance (Cc): 400 pF
- Current Transfer Ratio (hFE) min: 50
- Current Flow Ratio (hFE) Maximum Value: 180
- Current transfer ratio (hFE) conditions: Vce = -4 V, Ic = -5.0 A
- Collector-emitter saturation voltage (Vce(sat)) max: -2.00 V
2SC2921 Chip Overview
- Model No.: 2SC2921
- Package type: MT-200
- Manufacturer: Sanken Electric
- Application Scenario: Mainly used in the output stage of audio amplifiers and general purpose for hi-fi audio amplifiers and other linear applications.
2SC2921 Technical Data
- Maximum collector-emitter voltage (Vceo): 160 V
- Maximum emitter-base voltage (Veb): 5 V
- Maximum collector current (Ic): 15 A
- Maximum power dissipation (Pc): 150 W
- Maximum operating junction temperature (Tj): 150°C
- Conversion frequency (ft): 50 MHz
- Collector capacitance (Cc): 400 pF
- Current Transfer Ratio (hFE) min: 50
- Current Flow Ratio (hFE) Maximum Value: 180
- Current transfer ratio (hFE) conditions: Vce = 4 V, Ic = 5.0 A
- Collector-emitter saturation voltage (Vce(sat)) max: 2.00 V
Applicable brands and devices
- General Purpose: The 2SA1215 and 2SC2921 chips are widely used in high-fidelity audio amplifiers and other linear applications for a wide range of audio equipment, such as home theater systems, stereo sound systems, and more.
Caution
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your equipment.
- Installation Instructions:
- Make sure the chip is mounted in the correct direction and the pins are aligned with the pads on the board.
- During soldering, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
