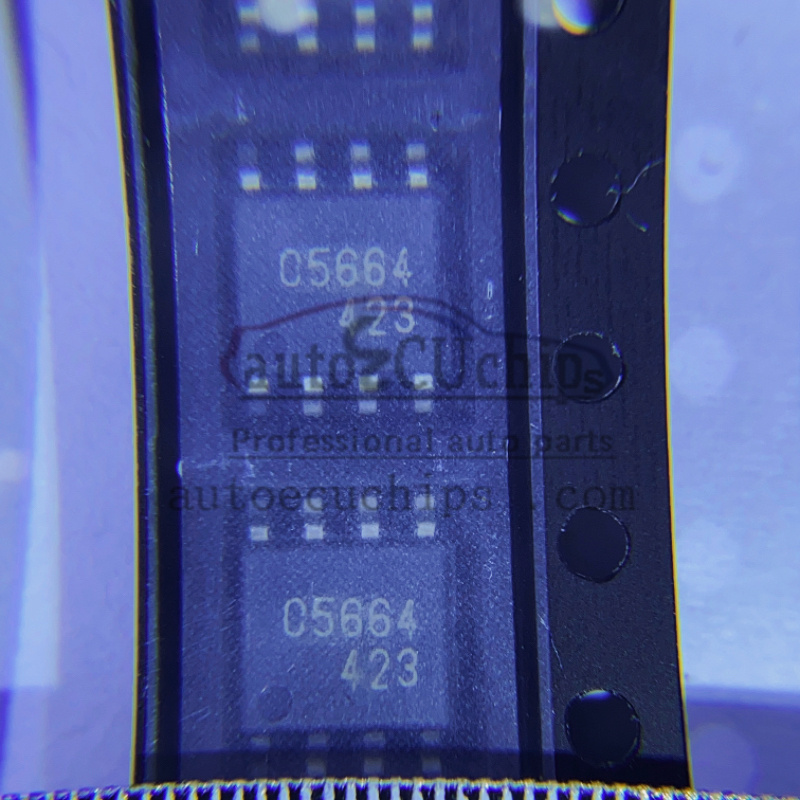

10pcs Original 2SC5664 C5664 SOP8 IC 2SC5664-E1-AZ 2SC5664-E1 Chip Repair Toyota Reiz Camry DENSO fuel injection IC Engine ECU ESP Chipnet
The 2SC5664-E1-AZ parts manufactured by RENESAS are available for purchase at autoecuchips Electronics website. Here you can find a wide variety of types and values of electronic parts from the world's leading manufacturers. The 2SC5664-E1-AZ components of autoecuchips Electronics are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on autoecuchips.com is for reference only. If you did not find what you were looking for, you can get more value information by email, such as the 2SC5664-E1-AZ Inventory quantity, preferential price, and manufacturer. We are always happy to hear from you so feel free to contact us.
2SC5664-E1-AZ is a NPN type high frequency power bipolar transistor (BJT) manufactured by Renesas Electronics, which is widely used in high frequency amplifiers, switching power conversion and other applications. The following are detailed information about this chip:
- Features:
- High frequency (fT typical 100MHz)
- High collector current (IC=3A)
- High collector-emitter voltage (VCEO=130V)
- Low saturation voltage (VCE(sat) max. 0.15V)
- Wide operating temperature range (-55°C to +150°C)
- Lead-free (RoHS compliant)
Technical Data
- Collector-emitter voltage (VCEO): 130V
- Collector Current (IC): 3A
- Emitter-base voltage (VEBO): 6V
- Frequency (fT): 100MHz
- Saturation voltage (VCE(sat)): 0.15V maximum
- Maximum power consumption (Pc): 3W
- Operating temperature range (Tj): -55°C to +150°C
- Package size: SOP-8
Application Scenarios
- High-frequency amplifiers: For high-frequency signal amplification.
- Switching power conversion: Used for high-efficiency power conversion.
- Communication equipment: For high-frequency signal processing in communication modules.
- Industrial automation: For industrial equipment requiring high reliability and precision.
Precautions
- Compatibility: Before purchasing, please make sure the chip is compatible with your application.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
- STORAGE CONDITIONS: It is recommended to store in a dry storage cabinet to avoid humidity.
SUMMARY
The 2SC5664-E1-AZ is a high-performance NPN-type high-frequency power bipolar transistor for a wide range of high-frequency amplifier and switching power conversion applications. Its high frequency, high current and low saturation voltage make it an excellent performer in high frequency signal processing and power management.
