Original 2SK2723 K2723 TO-220F IC Transistor
The 2SK2723 parts manufactured by NEC are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The 2SK2723 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the 2SK2723 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

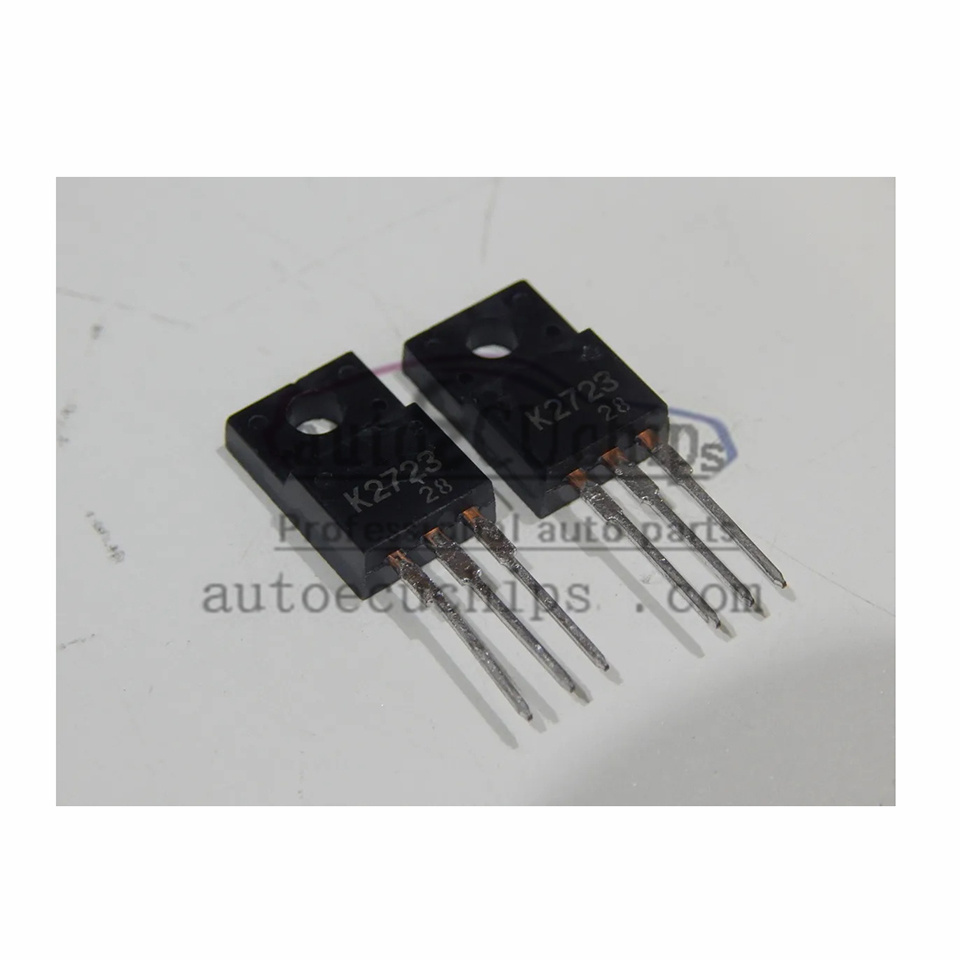

Following are details about 2SK2723 TO-220
- Features:
- High voltage withstand capability
- High current carrying capacity
- Suitable for a variety of high power application scenarios
Technical parameters
- Drain-source voltage (VDS): 1200V max.
- GATE VOLTAGE (VGS): ±20V
- Drain current (ID): 10A (continuous), 20A (pulsed) max.
- On-resistance (RDS(on)): 0.3Ω typical (at VGS=10V)
- Operating Temperature Range:
- Commercial Grade: 0°C to +70°C
- Commercial: 0°C to +70°C Industrial: -40°C to +85°C
- Automotive: -40°C to +150°C
- Package Size:
- TO-220: Length 15.24mm, Width 7.62mm, Pin Spacing 2.54mm
Pin Function
- Pin 1: Drain
- Pin 2: Source
- Pin 3: Gate
Application Scenarios
- Power supply circuits: Used for switching power supplies, DC-DC converters, etc.
- Motor Driver: Used to control the start, stop, and speed of motors.
- Inverter: Used to convert DC power to AC power.
- Automotive electronics: Used for high voltage switching in automotive electronic control units (ECUs).
Precautions
- COMPATIBILITY: Before using, please make sure the chip is compatible with your application, especially the input voltage and logic level.
- STORAGE CONDITIONS: It is recommended to store in a dry storage cabinet to avoid humidity.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
The 2SK2723 is a high-voltage, high-current N-channel MOSFET suitable for a wide range of high-power application scenarios, such as power supply circuits, motor drives, and inverters. Its high voltage tolerance and high current carrying capability make it an excellent performer in high power applications.
