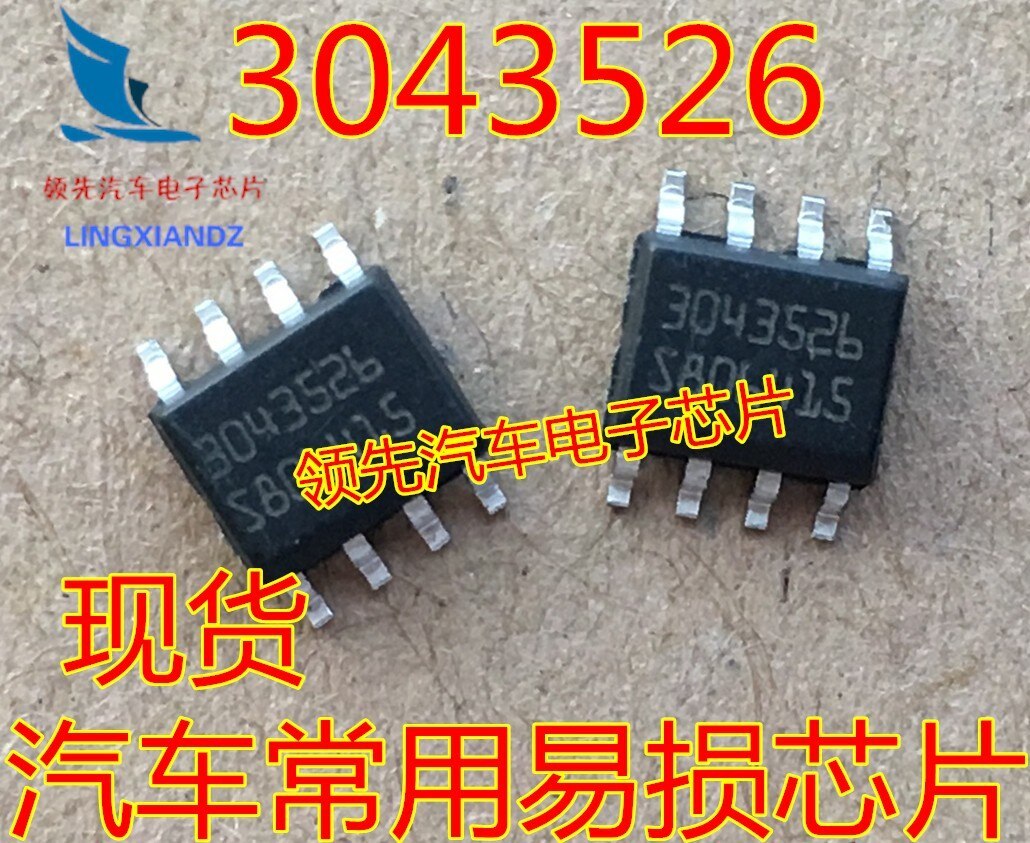

The 3043526 parts manufactured by Bosch are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The 3043526 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the 3043526 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Applicable Vehicle Models and Brands
Brand Typical Vehicle Models System Location
BMW E90, E60, X5 (E70) DME Engine Control Unit
Volkswagen Golf 6, Passat B7, CC ECU Fuel Injection Control
Audi A4 B8, A6 C6, Q5 8R Ignition Coil Control
Mercedes-Benz W212, W204 Fuel Pump Relay Driver
> Note: In the repair manual, the part number is often labeled as “BOSCH 3043526” or “0 304 352 6”.
---
Technical Specifications
Item Value
Operating Voltage 4.5 V – 28 V
Maximum Output Current 1.5 A continuous / 3 A pulse
On-Resistance 40 mΩ (typical)
Switching Frequency 0 – 25 kHz
Protection Features Over-temperature, over-current, short-circuit, clamping
Operating Temperature −40 °C to +150 °C
Number of Pins 8
---
Notes
1. Compatibility: Ensure to verify the ECU version number (e.g., Bosch MED 17.5, MEVD 17.2, etc.) before placing an order.
2. Soldering: For SOP-8, preheat to 120 °C, reflow peak at 250 °C, time < 10 s.
3. Protection: Parallel a freewheeling diode (reverse-parallel 1N5819 or TVS) across the inductive load terminals.
4. Technical Support: If the fault persists after replacement, use an oscilloscope to inspect the drive signal waveform and power supply ripple.
---
For further confirmation of specific vehicle models or to obtain repair case details, please provide the ECU model and fault code, and we will provide more detailed replacement instructions.
