35160WT parts manufactured by ST are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The
35160WT components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the
35160WT Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

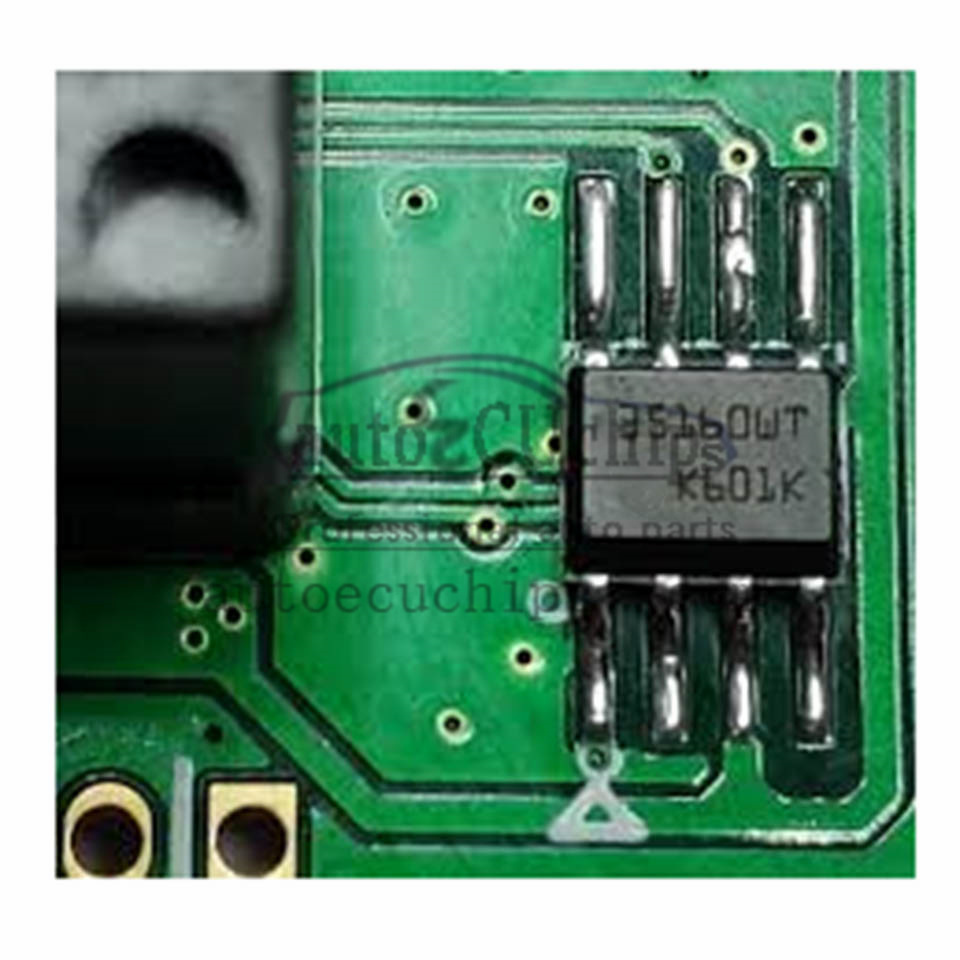

Below are detailed information about the 35160WT chip:
- Features :
- High reliability: Compliant with automotive-grade standards, it can work stably in harsh automotive environments to ensure reliable data storage and reading.
- Fast read/write speed: It supports fast data read/write operation, which can meet the demand of real-time data updating of automobile instruments, such as the fast update of odometer data.
- Low power consumption: In automotive electronic systems, low power consumption helps to reduce energy consumption and improve the overall energy efficiency of the car.
- Data protection function: With data protection mechanism, it can protect the stored data from being lost or damaged in case of power supply voltage fluctuation or system failure.
Technical Parameters
- Operating voltage: typically 4.5V to 5.5V
- Operating temperature range: typically - 40°C to + 125°C (automotive grade)
- Memory capacity: 16Kbit
- Package size: SOP8 package size is approximately 8.0mm x 4.9mm x 1.8mm (depending on the chip package specifications).
- Data retention time: Data retention time of more than 100 years in case of power failure.
- Write cycles : Withstands at least 1,000,000 write cycles.
Applicable Models and Brands
The 35160WT chip is mainly used in the instrument panel of BMW brand automobiles, and the following are some common models:
- BMW F chassis models: e.g. F10 (BMW 5 series), F20 (BMW 1 series), F30 (BMW 3 series), etc.
- BMW G chassis models: e.g. G11 (BMW 7 series), G05 (BMW X5), etc.
Notes
- Compatibility : Before purchasing, be sure to check whether the 35160WT chip is compatible with your BMW model and instrumentation system, we recommend referring to the official BMW service manual or consulting a professional service technician.
- Installation Instructions :
- When soldering, you need to pay attention to the control of temperature and time to avoid damage to the chip, it is recommended to use professional soldering equipment and tools.
- Connect the circuit according to the correct pin definition to prevent the chip from working or being damaged due to wrong wiring, pin 1 is usually VCC, pin 4 is GND, pin 6 is Serial Data Input (SDI), pin 7 is Serial Clock (SCK), and pin 8 is Serial Data Output (SDO), and the specific functions of the pins are subject to the data manual.
- Add necessary protection circuits in the circuit design, such as over-voltage protection and over-current protection, to ensure the stable operation of the chip in the automotive electronic system.
- Use a suitable decoupling capacitor to minimize the impact of power ripple on the chip, usually a 0.1μF ceramic chip capacitor is connected in parallel between VCC and GND.
- Technical Support: If you encounter technical problems while using the 35160WT chip, try the following avenues for support:
- The chip manufacturer's technical support department for chip-related technical advice and solutions.
- Customer service at electronic component distribution platforms to assist with purchasing and product related issues.
- Technical forums and communities to seek help and advice from other engineers and enthusiasts, such as automotive electronics repair forums, MCU-related forums and so on.
- Professional electronic technology consulting companies, providing in-depth technical services and customized solutions.
Summary
35160WT chip is an EEPROM chip with an important role in the BMW automotive instrumentation system, and its high reliability, fast read/write speed and low power consumption make it able to meet the needs of automotive instrumentation for data storage. In the process of procurement and use, pay attention to the compatibility and installation specifications of the chip, and make full use of the available technical support resources to ensure its stable operation in the automotive electronic system.
