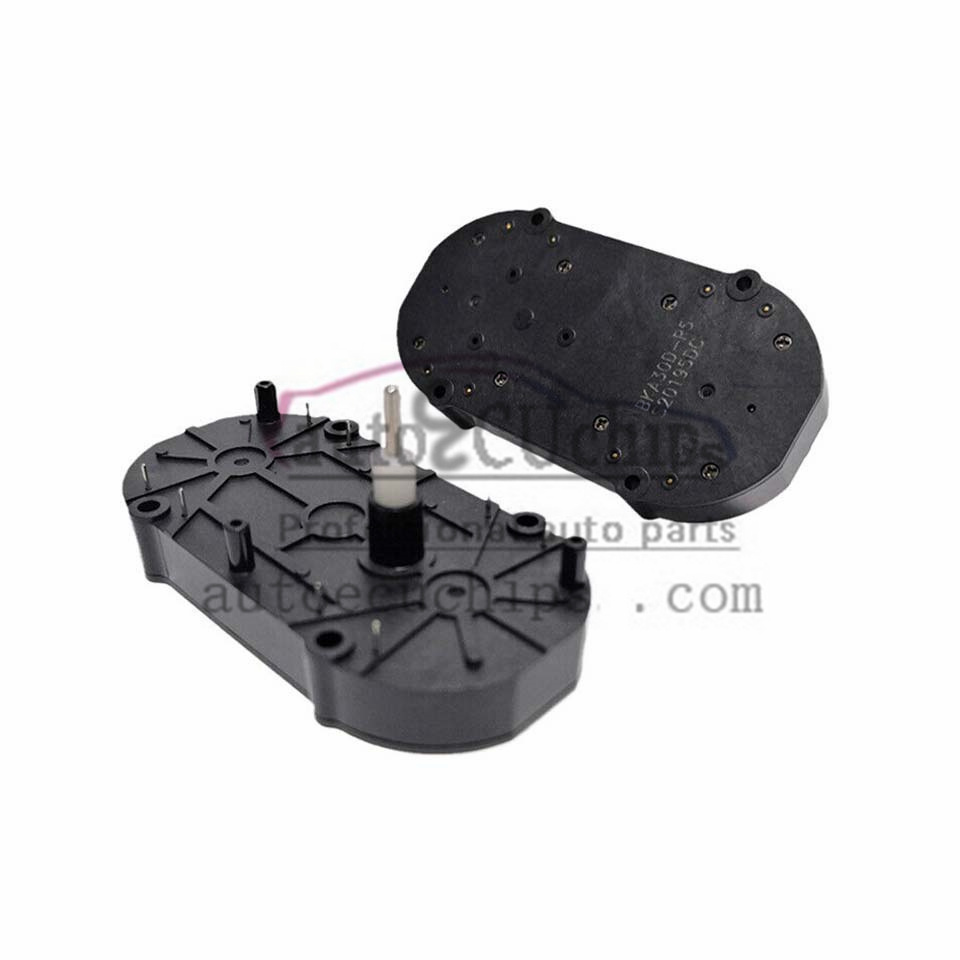

5PCS 360 Degree BKA30D-R5 VID28-05 Stepper Motors Dual Shaft Repair Auto Instrument Cluster Motor Car Replacement Parts BKA30D-R5 Electric Car Engin Motor
The BKA30D-R5C VID28-05 parts manufactured by autoecuchips.com are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The BKA30D-R5 VID28-05 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the BKA30D-R5C VID28-05 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
BKA30D-R5C is a dual-axis stepping motor produced by BKA Motor, which is widely used in automobile dashboard pointer drive. Below are the detailed information about this motor:
- Features:
- Dual-axis design, can drive two pointers independently
- High accuracy: 1/3° step-by-step accuracy, 1/12° micro-step accuracy
- Low power consumption: average operating current 18-20mA
- Small size: 59.5mm x 31.5mm x 8.9mm
- Wide operating temperature range: -40°C to +105°C
- Low noise: operating noise as low as 45dB(A)
- Long service life: Wear-resistant and noise-reducing gear materials are used.
- High reliability: in line with automotive industry standards
Technical Parameters
- Dimensions:
- Motor size: 59.5mm x 31.5mm x 8.9mm
- Metal shaft outer diameter: Φ1.5mm
- Plastic shaft O.D.: Φ4.10mm
- Electrical parameters:
- Working voltage: 5V
- Coil resistance: 260-300Ω
- Operating current: 20mA (at 200Hz frequency)
- Maximum driving frequency: 600Hz
- Dynamic torque:
- Outer shaft: 0.7-0.8mNm (at 200Hz frequency)
- Internal axis: 1.05-1.2mNm (at 200Hz)
- Static torque:
- Outer shaft: 3.5-4.0mNm (at 5V)
- Inner shaft: 3.5-4.0mNm (at 5V)
- Mechanical parameters:
- Axial thrust:
- Outer axis: 60N (max.)
- Inner axis: 180N (max.)
- Axial tension:
- Outer shaft: 60N (max.)
- Inner shaft: 70N (max.)
- Radial push-pull force:
- Outer shaft: 5N (max.)
- Inner shaft: 13N (max.)
- Maximum angular acceleration: 1,000 rad/s²
- Holding torque:
- Outer shaft: 110mNm
- Inner axis: 100mNm
- Maximum freewheeling angle:
- Outer axis: 360° Inner axis: 360
- Inner shaft: 360°.
- Operating temperature range: -40°C to +105°C
- Sound level: 45dB(A)
Application Scenarios
- Automotive instrument panel pointer drive: for speedometer, tachometer, water temperature gauge, fuel gauge, etc.
- Automotive electronic systems: for a variety of automotive electronic modules that require high precision and low power consumption.
Precautions
- COMPATIBILITY: Before purchasing, please make sure that the motor is compatible with your car's dashboard.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
- STORAGE CONDITIONS: It is recommended to store in a dry storage cabinet to avoid humidity.
Summary
The BKA30D-R5C is a high-performance dual-axis stepper motor for a wide range of automotive dashboard pointer drive applications. Its high accuracy, low power consumption and low noise characteristics make it an excellent performer in automotive electronic systems
