The
6403R200 is a high-performance, ultra-slim stepper motor, available from stock at
autoecuchips.com, for a wide range of automotive dashboard systems. It features low noise, high reliability and optimized pointer illumination efficiency, making it an ideal automotive instrumentation control solution. If you need further technical support or purchasing advice, you can contact related us whatsapp
+8618718921345 or check the datasheet.
The

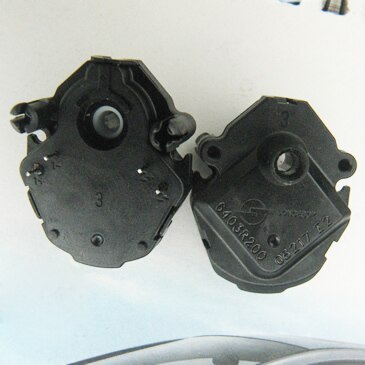

6403R200 is an ultra-thin stepper motor manufactured by Sonceboz that is widely used in automotive dashboard systems such as speedometers, tachometers, and other pointer gauges.
Technical specifications
- Rotor step angle: 18°
- Transmission ratio: 1:43.2
- Number of rotor pole pairs: 5
- Step length in full step mode: 0.416°
- 6 Step length in micro-step mode: 0.0694°
- Operating Angle: 320-325°
- Operating temperature range: -40°C to +105°C
- Storage temperature range: -50°C to +105°C
- Soldering temperature (5 seconds maximum): 290°C
- Operating voltage range: 4.5V to 7.5V
- Operating Current: 20-35mA
- Coil Resistance: 214-240Ω
- Coil Inductance: 45-65mH
- Dynamic torque (200°/sec): 1.25-1.6mNm
- Static torque: 0.5-0.8mNm
- Holding torque (5V current): 3.6mNm
- Noise level (200°/sec, 5cm from reference surface): 30-35dB(A)
- Equivalent motor inertia at output: 7.2E-06 kg-m²
- Permissible force on output shaft:
- Axial force (holding the housing): 15N
- Radial force (10mm from front face of motor): 15N
Design features
- Ultra-thin design: fits into compact automotive dashboard spaces.
- Optimized pointer illumination efficiency: improves dashboard visibility.
- Simplified pointer assembly process: reduces production costs.
- High degree of freedom in pointer design: Supports a wide range of dashboard designs.
- Low-noise operation: noise level of only 30-35 dB(A) at 200°/sec.
- High reliability: For automotive-grade applications that meet stringent environmental and operational requirements.
Applicable models
The 6403R200 stepper motor is suitable for a wide range of automotive makes and models, including but not limited to:
- Nissan: Prowler, Kizashi, Hennessey, etc.
- Chevrolet: Scion, New Insight Impala (2008-2013)
- Ford: Escape (2013-2018), B-Max (2012-2018)
- Opel: some models
- General Motors: some models
- Peugeot: some models
- Citroen: some models
