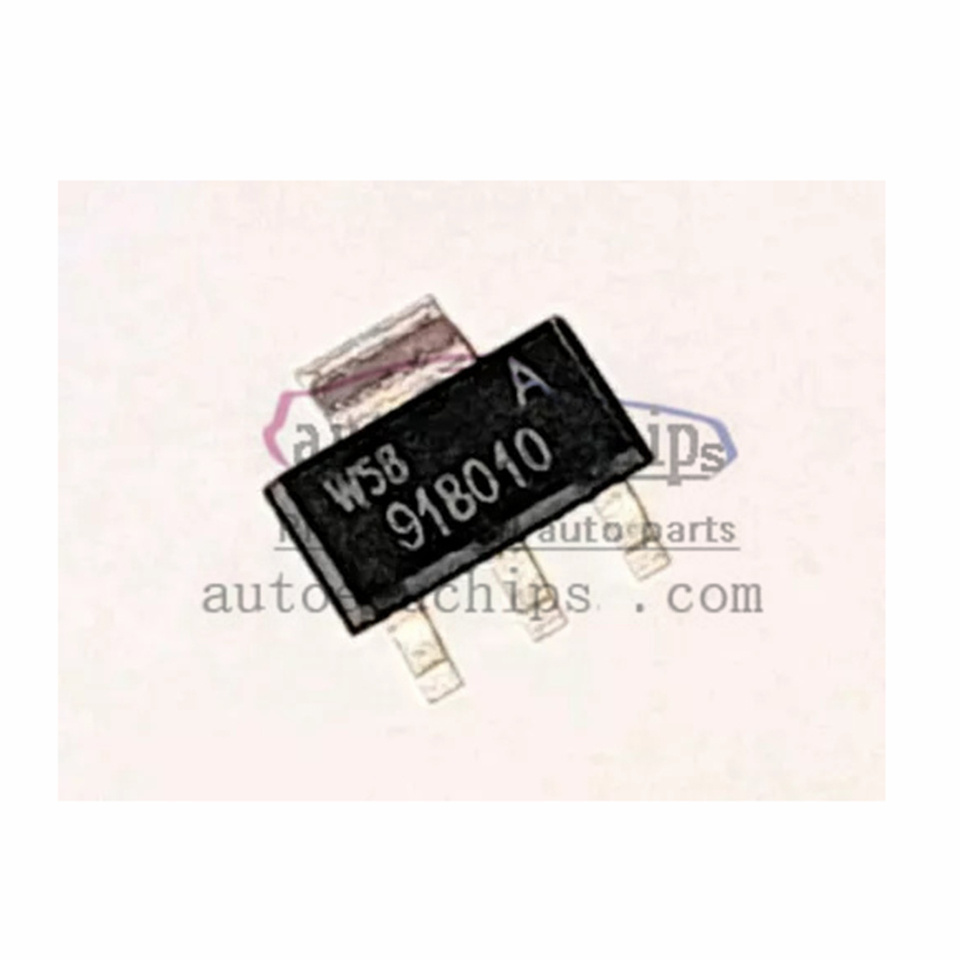

10pcs 918010 SOT223 SMD transistor Fragile Triode N-channel 100V 4.6A Chipnet Repair IC
The 918010 parts manufactured by autoecuchips.com are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The 918010 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the 918010 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The BUK98180-100A is an N-Channel TrenchMOS logic level field effect transistor (FET) manufactured by Nexperia and widely used in automotive electronic systems, power management and motor drives. The following are detailed information about this chip:
- Features:
- Low on-resistance (RDS(on))
- Suitable for logic level driver sources
- AEC-Q101 compliant
- Suitable for automotive critical applications
Technical Data
- Maximum drain-source voltage (VDS): 100V
- Maximum Gate Source Voltage (VGS): ±20V
- Maximum drain current (ID):
- Continuous: 4.6A
- Pulse: 18A (pulse width ≤10μs, duty cycle ≤2%)
- On-resistance (RDS(on)):
- At VGS=10V, ID=5A: 173mΩ
- At VGS=4.5V, ID=5A: 201mΩ
- At VGS=5V, ID=5A: 180mΩ
- Maximum power consumption (Pd):
- At 25°C: 8W
- At 125°C: 4W
- Operating temperature range (Tj): -55°C to +150°C
- Storage Temperature Range (Tstg): -55°C to +150°C
- Thermal resistance (RthJC): 3°C/W
- Thermal resistance (RthJA): 50°C/W (when placed vertically in free air)
Pin Information
Pin No. Pin Name Function Description
1 G GATE
2 D Drain
3 S Source
4 D Drain
Application Scenario
- Automotive electronic systems: used in automotive electronic control units (ECUs), engine control units (ECUs), and so on.
- Power management: for high efficiency power conversion and motor drive.
- Motor drives: for high current applications.
- 12V, 24V and 42V loads: for a wide range of automotive and industrial applications.
Precautions
- Compatibility: Before purchasing, please make sure the chip is compatible with your application.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
- STORAGE CONDITIONS: It is recommended to store in a dry storage cabinet to avoid humidity.
SUMMARY
The BUK98180-100A is a high-performance N-Channel TrenchMOS logic level field effect transistor for a wide range of automotive electronic systems and power management applications. Its low on-resistance and high current capacity make it an excellent performer in high-efficiency power conversion and motor drives.
