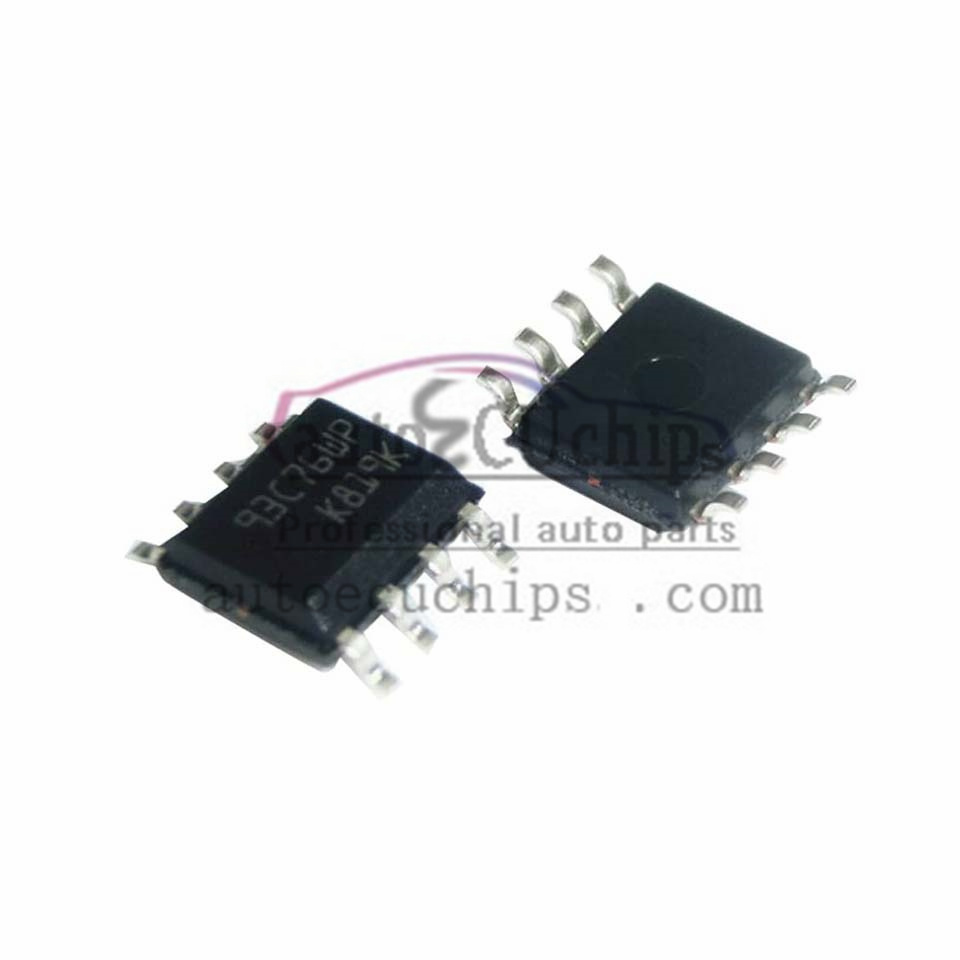

10pcs 93C76WP 93C76 SOIC8 EEPROM Chip Automotive Engine Computer Board Chipnet Original IC
The 93C76WP parts are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The 93C76WP components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the 93C76WP Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us
Technical Specifications
- Storage capacity:
- 93C76: 8K x 8-bit or 4K x 16-bit
- 93C86: 16K x 8-bit or 8K x 16-bit
- Operating voltage range: 5.0V
- Operating Temperature Range:
- Commercial Grade (C): 0°C to +70°C
- Commercial Grade (C): 0°C to +70°C Industrial Grade (I): -40°C to +85°C
- Automotive (E): -40°C to +125°C
- Features:
- Single-supply power supply (5.0V)
- Low-power CMOS technology, 1mA typical operating current
- ORG pin selectable memory configuration
- Automatically timed erase and write cycles (including auto-erase)
- Auto-erase before Write
- Power On/Off Data Protection Circuitry
- Standard 3-wire serial I/O
- Erase/write cycle status signal
- Sequential read function
- Guaranteed number of erase/write cycles: 10,000,000
- Data retention time: >200 years
- Package: 8-pin PDIP/SOIC
Application Fields
- Embedded systems:
- Storage of configuration data and calibration parameters
- Storage of configuration data and calibration parameters for device initialization and runtime parameter storage
- Industrial automation:
- Storage of device settings and operating parameters
- For device monitoring and data acquisition
- Internet of Things (IoT):
- Stores device configuration and user settings
- For smart devices and sensor networks
- Consumer electronics:
- Stores device settings and user preferences
- For smart appliances and portable devices
- Automotive Electronics:
- Stores vehicle settings and calibration data
- For engine control units (ECUs) and body control modules (BCMs)
Caution
- Operating Temperature Range: Ensure operation within a temperature range of -40°C to +125°C to meet the requirements of automotive-grade applications.
- Storage conditions: Storage in a dry, antistatic environment is recommended to avoid damage.
- Compatibility: Before use, make sure the chip is compatible with the hardware and software of the target application.
- Protections: Ensure that the circuitry contains appropriate protections, such as fuses and overcurrent protection, to prevent damage.
Summary
The 93C76WP SOP8 is a high-performance serial EEPROM for a wide range of embedded systems and industrial control applications. It offers high reliability and low power design for 5.0V powered systems. If you require further technical support or a datasheet, please visit the link above or contact the supplier for details.
