The A4910KJPT parts manufactured by Allegro MicroSystems are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The A4910KJPT components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the A4910KJPT Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

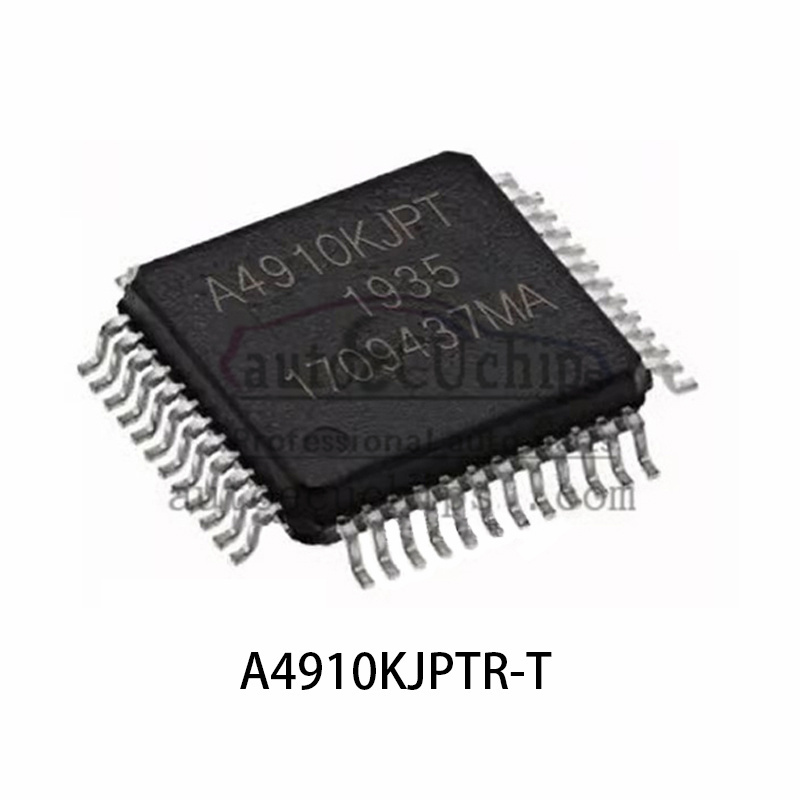

The following are detailed specifications for the A4910KJPT chip:
- Features:
- High-current three-phase gate driver suitable for N-channel MOSFETs.
- Three-phase current detection amplifier with user-configurable differential amplifiers.
- SPI-compatible serial or direct parallel control.
- Cross-conduction protection and programmable dead time.
- Top-side charge pump enabling 100% PWM duty cycle operation.
- Provides extensive diagnostic outputs, including under-voltage, over-temperature, and power bridge fault indications.
- Low-current sleep mode.
Technical Specifications
- Package Type: LQFP-48
- Pin Count: 48 pins
- Operating voltage range: 5.5V to 50V
- Logic supply voltage: 3.3V to 5V
- Operating temperature range: -40°C to +150°C (automotive grade)
- Maximum junction temperature: Limited by power dissipation, continuous over-temperature events not exceeding 10 seconds, and lifetime duration not exceeding 10 hours.
- Storage temperature range: -65°C to +150°C
Notes
- Compatibility: Before purchasing, please confirm that this chip is compatible with your application.
- Installation instructions:
- Ensure that the power supply voltage meets the chip specifications.
- Use appropriate decoupling capacitors to reduce noise.
- Operate the device within the specified temperature range.
- Technical support: If further technical support is required, contact the supplier or manufacturer.
Summary
The A4910KJPT is a high-performance three-phase MOSFET driver produced by Allegro MicroSystems, suitable for various automotive electronic applications, particularly excelling in electronic power steering systems, hydraulic pumps, engine cooling fans, and transmission actuators. Its wide operating voltage range, low static current, and multiple protection features make it highly practical and reliable in automotive electronic systems.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
