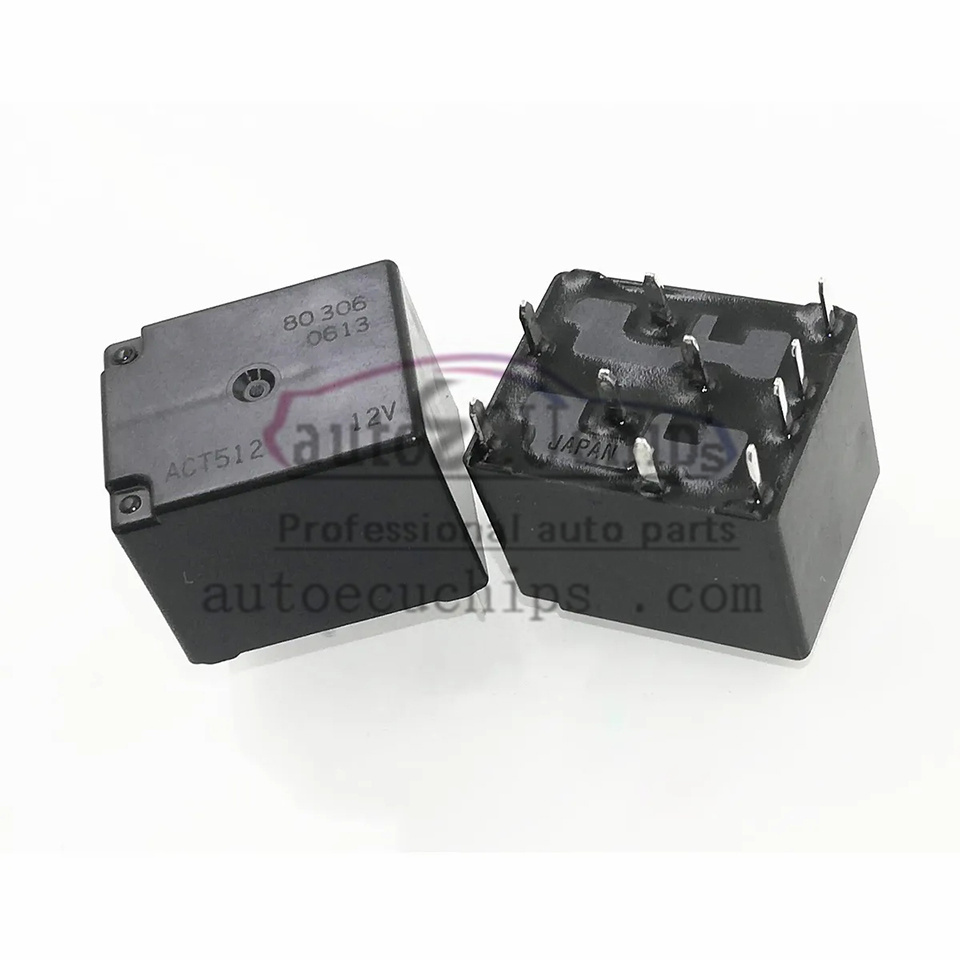

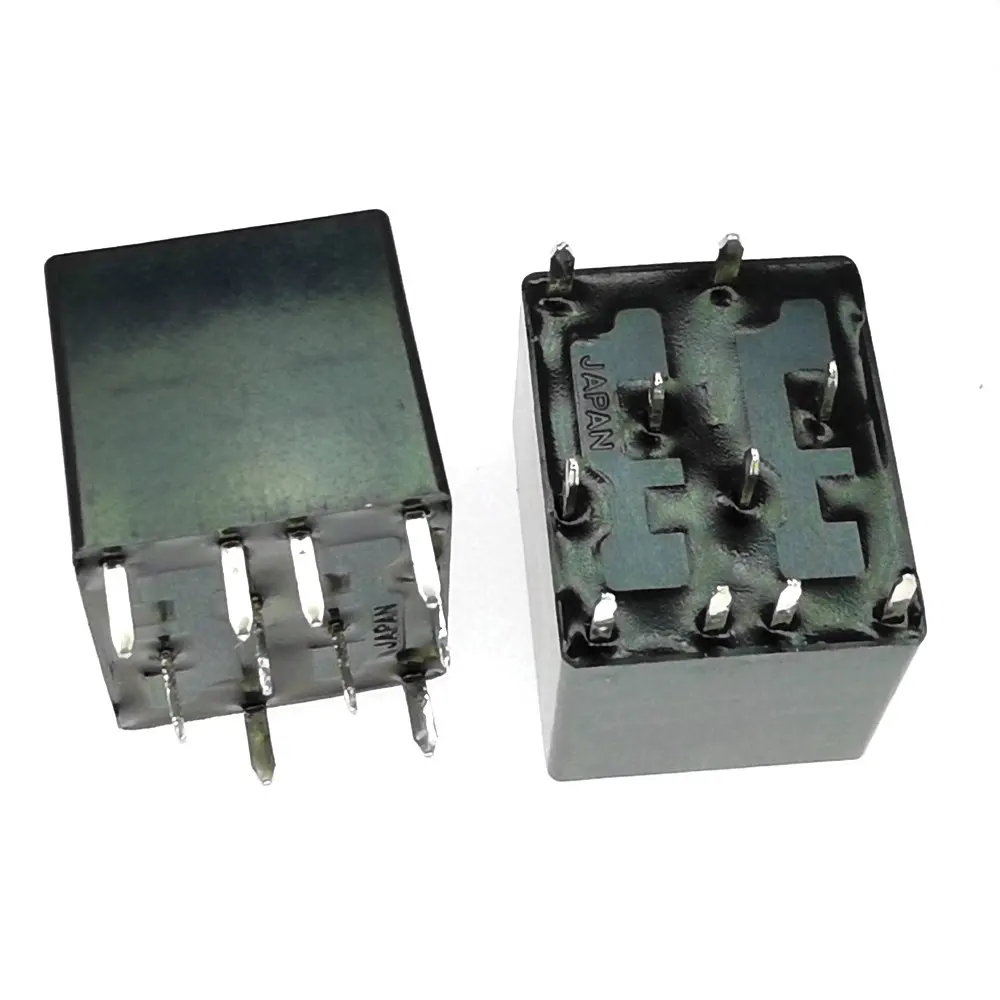

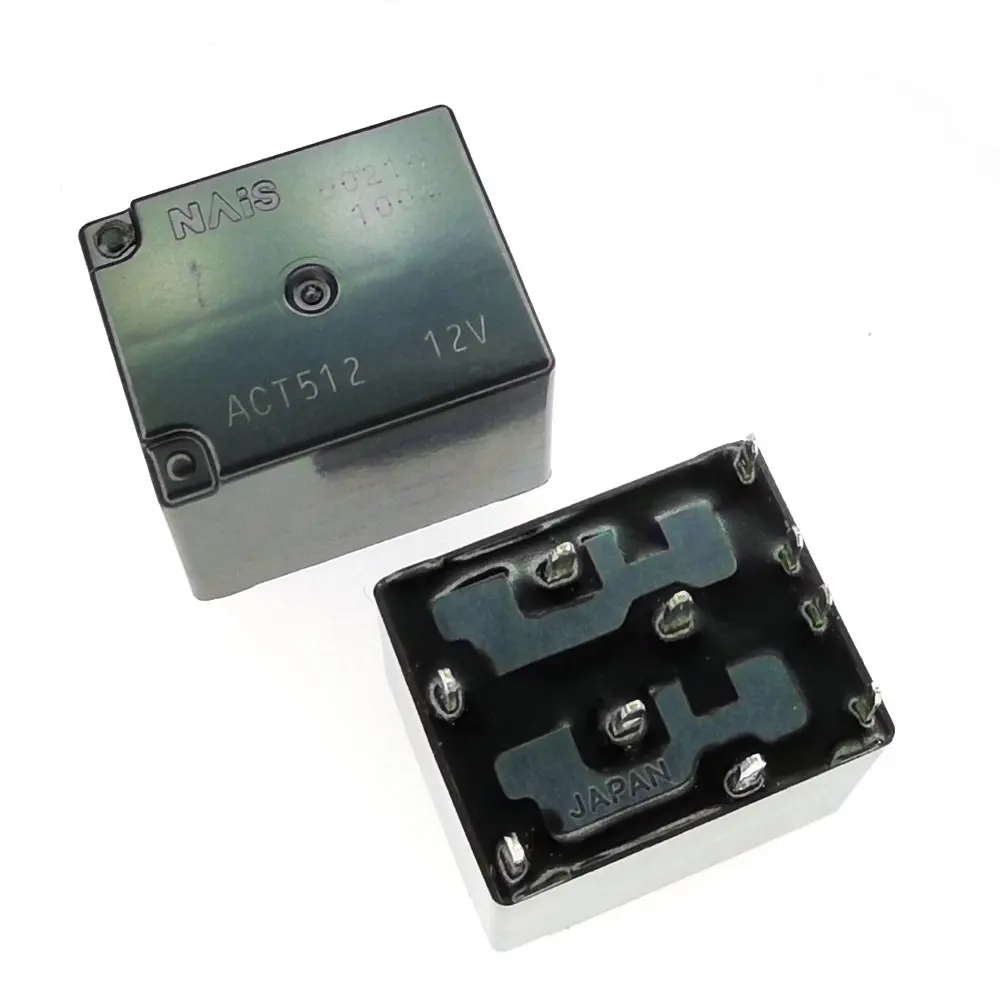

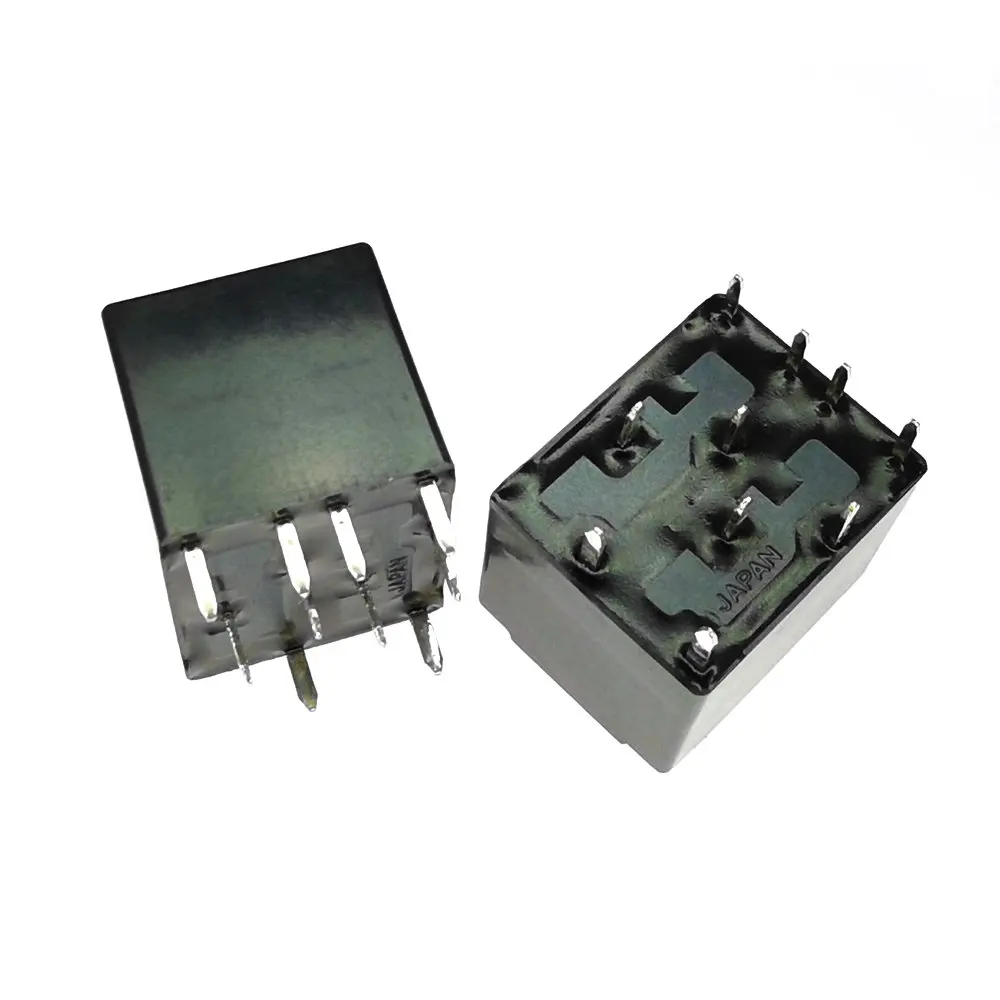

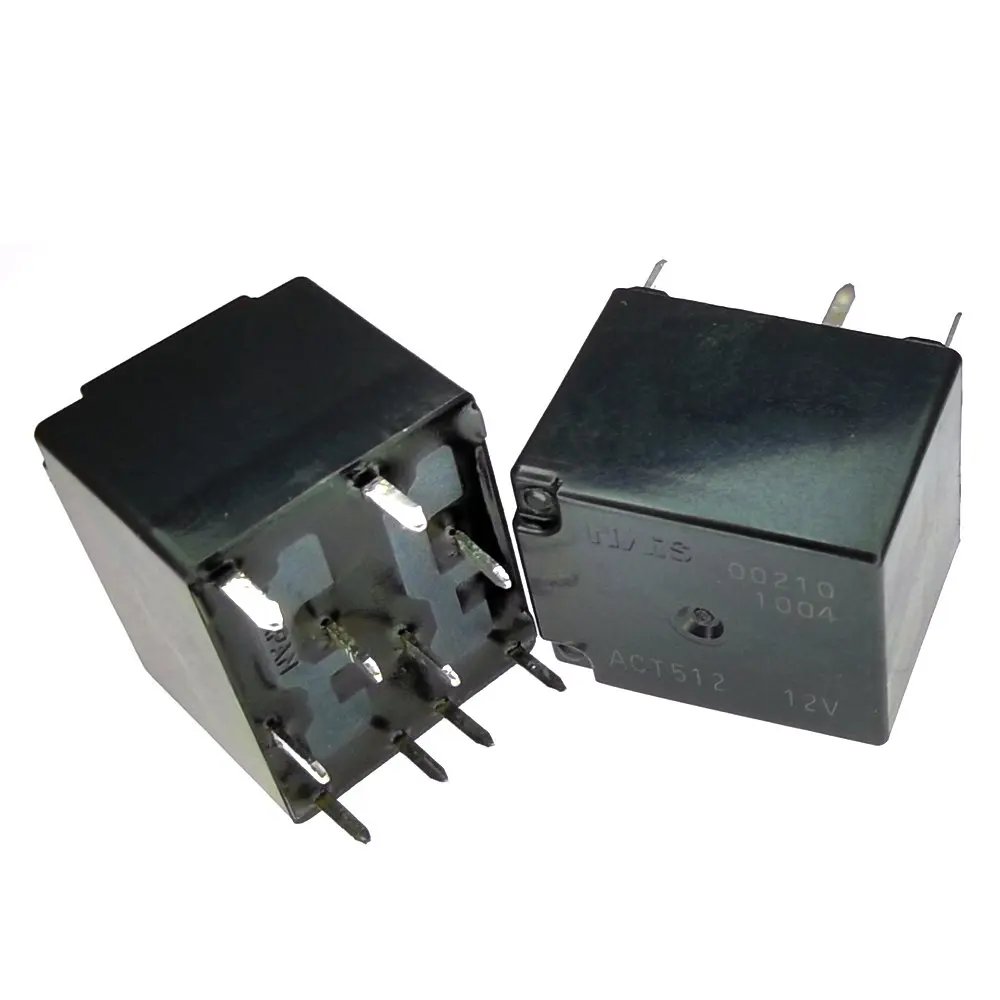

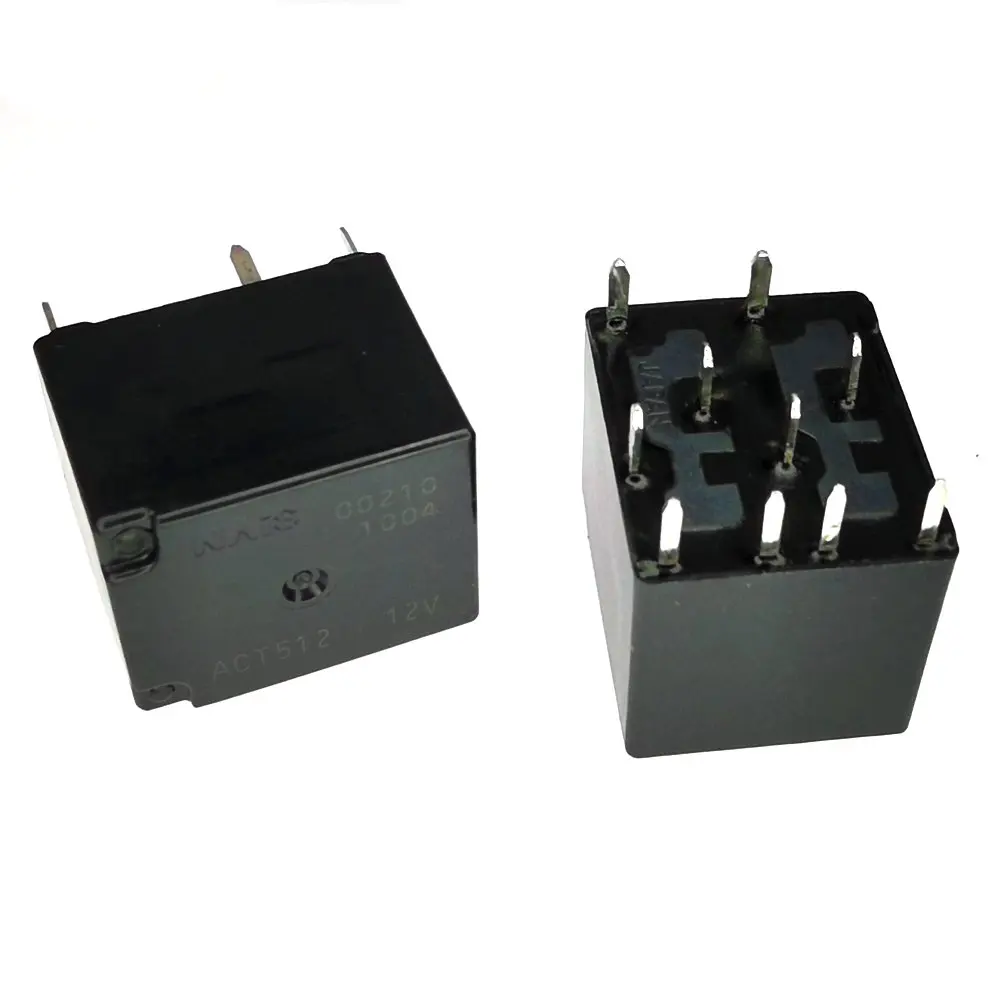

5Pcs Original ACT512 20A 12V Relay Repair Audi J518 lock ignition Switch ELV/ESL ACT 512 10pIn DIP10 Relays
The ACT512 parts are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The ACT512 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the ACT512 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us
Technical specification
- Coil voltage: 12VDC
- Contact form: 1 Form C x 2 (double contact)
- Protection Structure: Sealed
- Terminal Type: PCB Plug
- Function: Single side stabilization
- Operation voltage (at 20°C): 7.2VDC max.
- Release voltage (at 20°C): 1.0VDC min.
- Rated operating current: 66.7mA
- Coil resistance (at 20°C): 180 Ω
- Rated operating power (at 20°C): 800mW
- Operating Voltage Range: 10V to 16VDC
- Contact resistance (initial value): Maximum 100mΩ (normally open side: typical value 7mΩ, normally closed side: typical value 10mΩ)
- Contact material: silver alloy
- Rated switching capacity (resistive load): normally open side 20A 14VDC, normally closed side 10A 14VDC
- Maximum load current:
- Normally open side: 25A (1 hour), 35A (2 minutes) (coil voltage 14VDC, 20°C)
- Normally open side: 25A (1 hour), 35A (2 minutes) (coil voltage 14VDC at 20°C) Normally closed side: 20A (1 hour), 30A (2 minutes) (coil voltage 14VDC at 85°C)
- Minimum switching load (resistive load): 1A 14VDC (20°C)
- Insulation resistance (minimum): 100MΩ (500VDC test)
- Voltage withstand strength:
- Between contacts: 500Vrms for 1 minute
- Between contact and coil: 500Vrms for 1 min.
- Action time (at 20°C): 10ms maximum (no contact bounce time)
- Release time (at 20°C): max. 10ms (no contact bounce time, no diode)
- Shock resistance:
- Functional: min. 100 m/s² (approx. 10G, half-wave sine wave: 11ms, detection time: 10μs)
- Destructive: min. 1000 m/s² (approx. 100G, half-wave sine wave: 6ms)
- Vibration resistance:
- Functional: 10 to 100Hz, min. 44.1 m/s² (approx. 4.5G, detection time: 10μs)
- Destructive: 10 to 500Hz, min. 44.1 m/s² (approx. 4.5G, vibration time per direction: 2 hours in X and Y directions, 4 hours in Z direction)
- Life expectancy:
- Mechanical life: 10^7 minimum (120 cycles/minute)
- Electrical life:
- Resistive load: 10^5 minimum (rated switching capability, operating frequency: 1s ON, 9s OFF)
- Motor load:
- Normally open side: 2x10^5 minimum (Starting current 25A, steady state current 5A 14VDC, 10^5 minimum (25A 14VDC motor lockout condition))
- Normally closed side: 2x10^5 minimum (braking current 20A 14VDC, operating frequency: 0.5s ON, 9.5s OFF)
- Operating temperature range: -40°C to +85°C
- Humidity range: 5% to 85% RH (avoid ice or condensation)
- Weight: about 8g

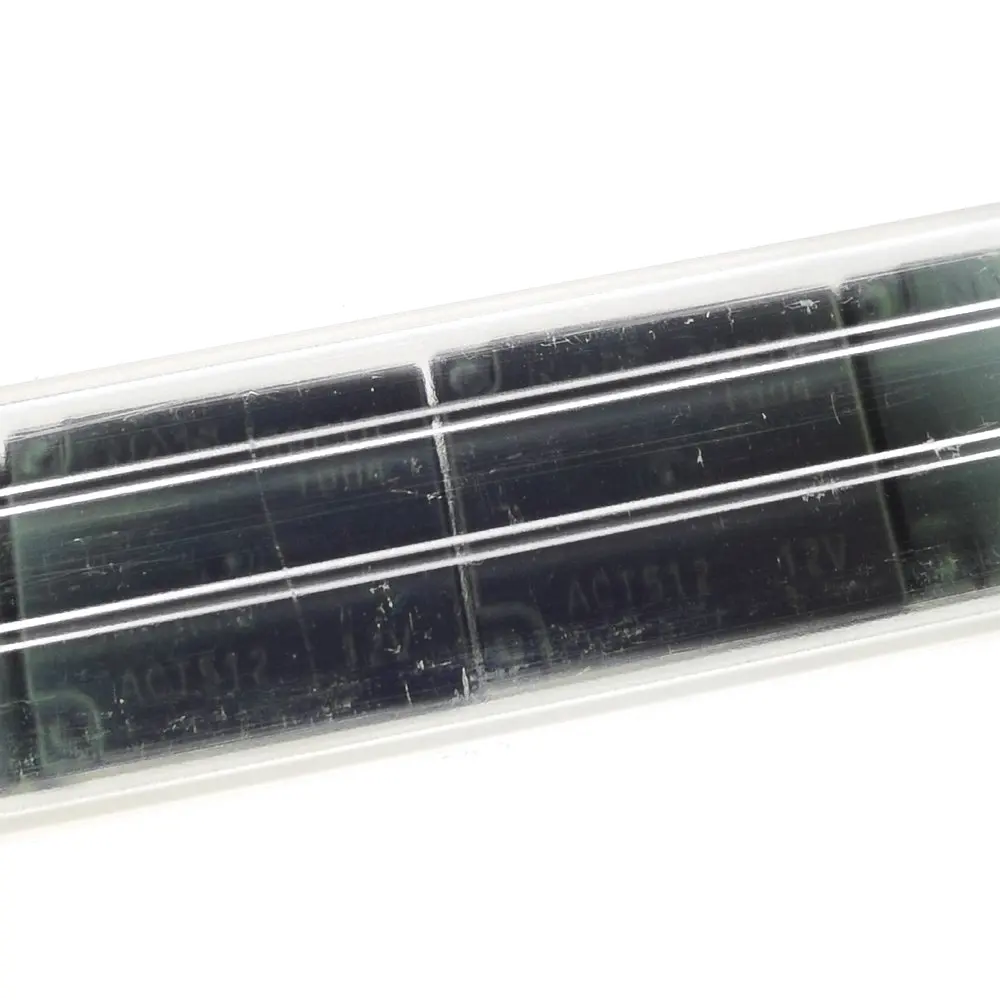

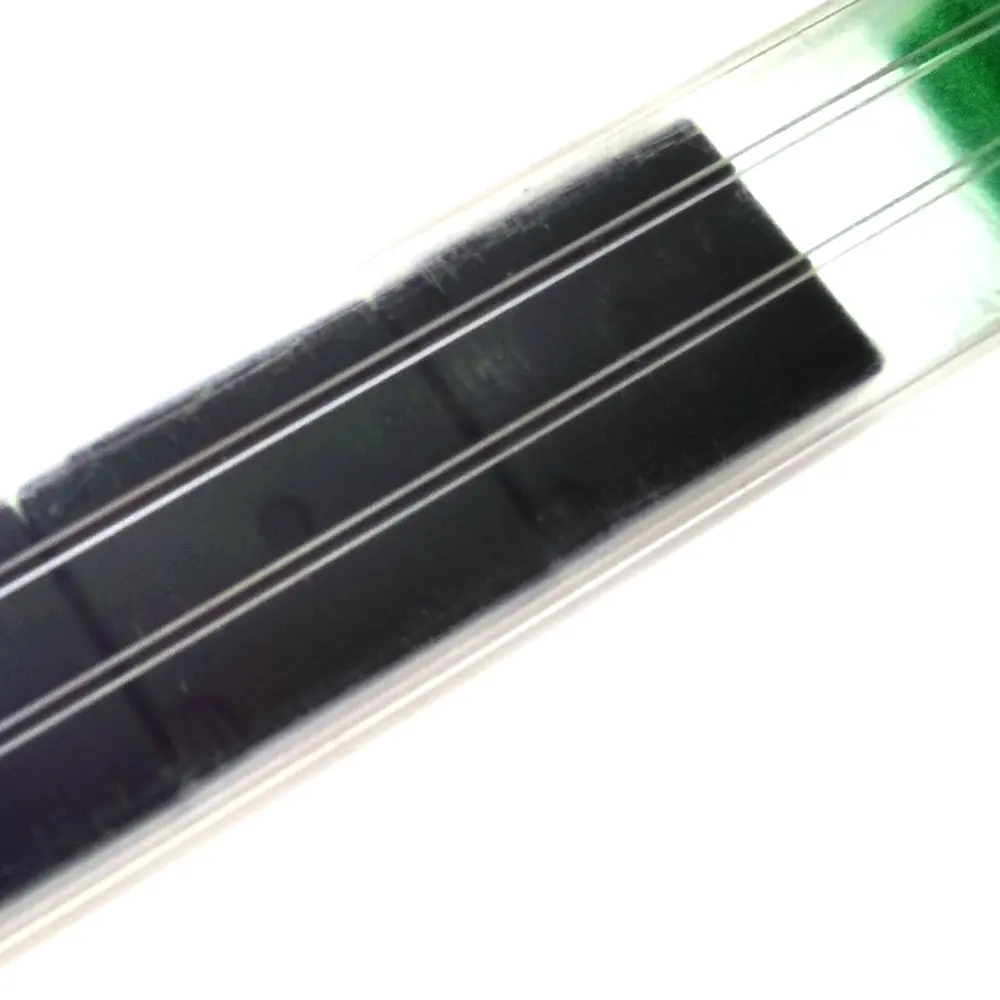

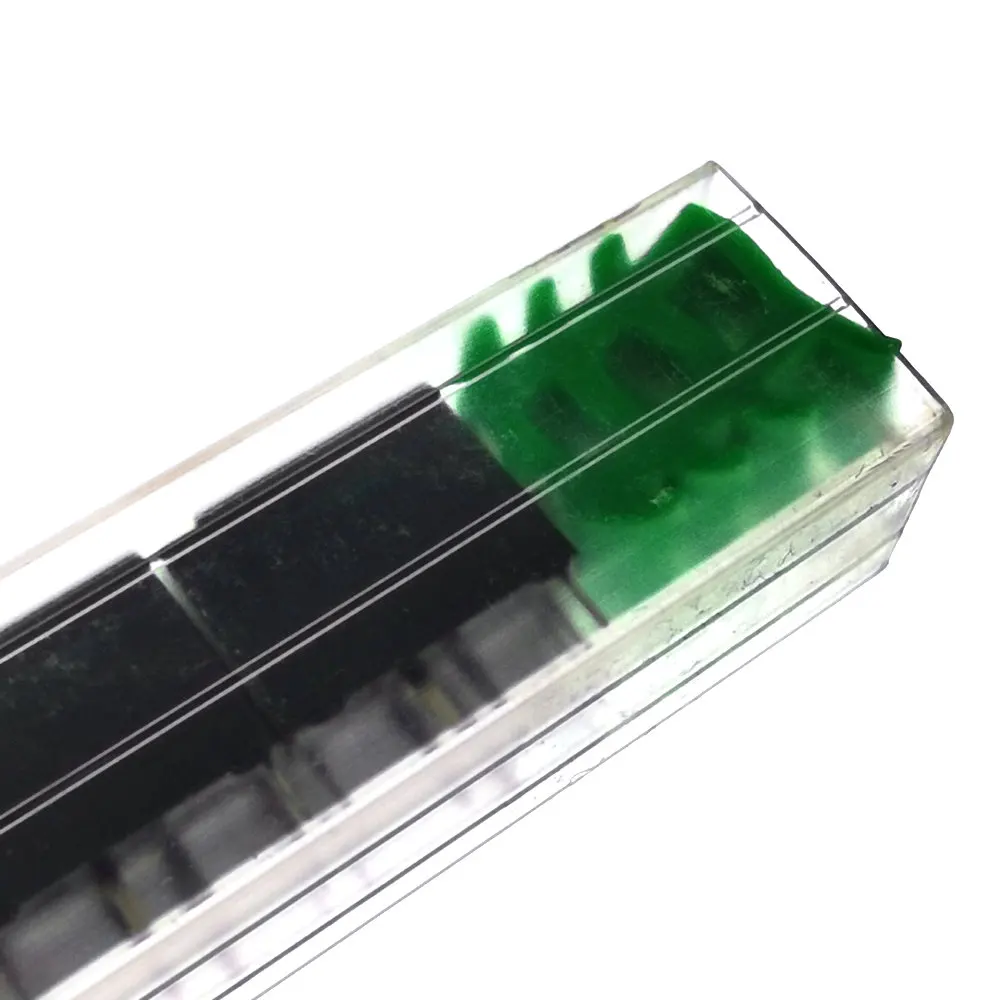

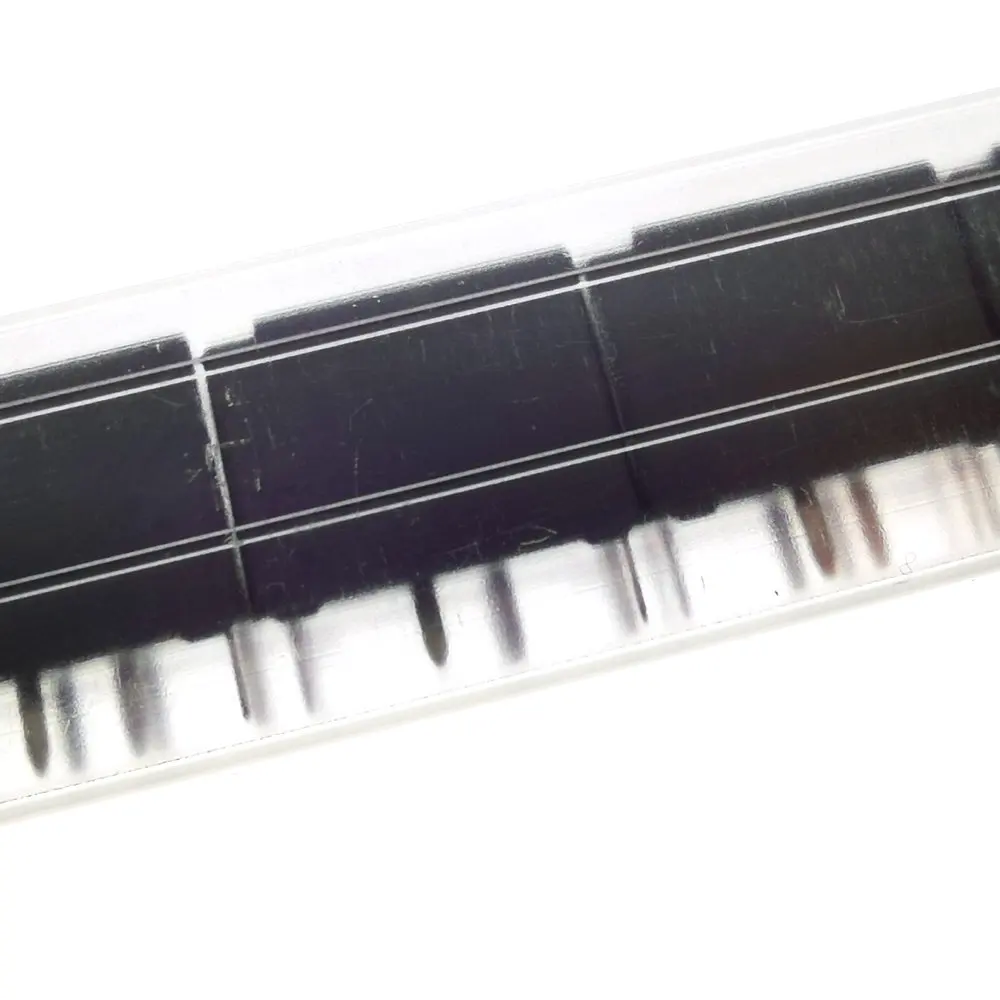

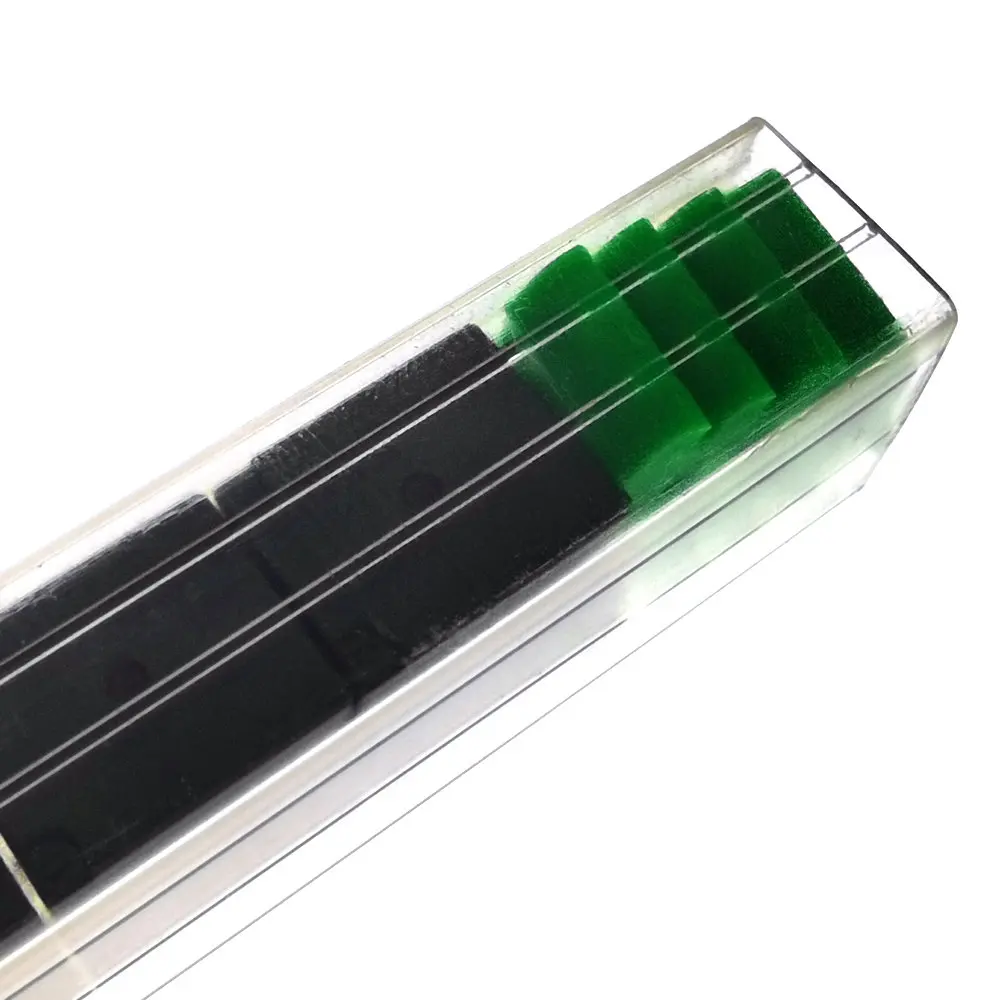

- Packaging: Tube
- Packaging: Tube Packaging: Inner Box Quantity: 30 pcs
- Outer box quantity: 900 pieces
Application Areas
- Automotive electronics:
- Window control
- Door lock control
- Sunroof control
- Hazard warning lights
- Flashers
- Defroster
- Power steering
- Seat Adjustment
Caution
- OPERATING TEMPERATURE RANGE: Ensure operation within a temperature range of -40°C to +85°C for automotive grade applications.
- STORAGE CONDITIONS: Storage in a dry, anti-static environment is recommended to avoid damage.
- Compatibility: Before use, verify that the relay is compatible with the hardware and software of the target application.
- Protections: Ensure that the circuitry contains appropriate protections, such as fuses and overcurrent protection, to prevent damage.
Summary
The ACT512 12VDC is a high performance automotive grade relay for use in a wide range of automotive electronic systems. If you require further technical support or a datasheet, please visit the link above or contact the supplier for details.
