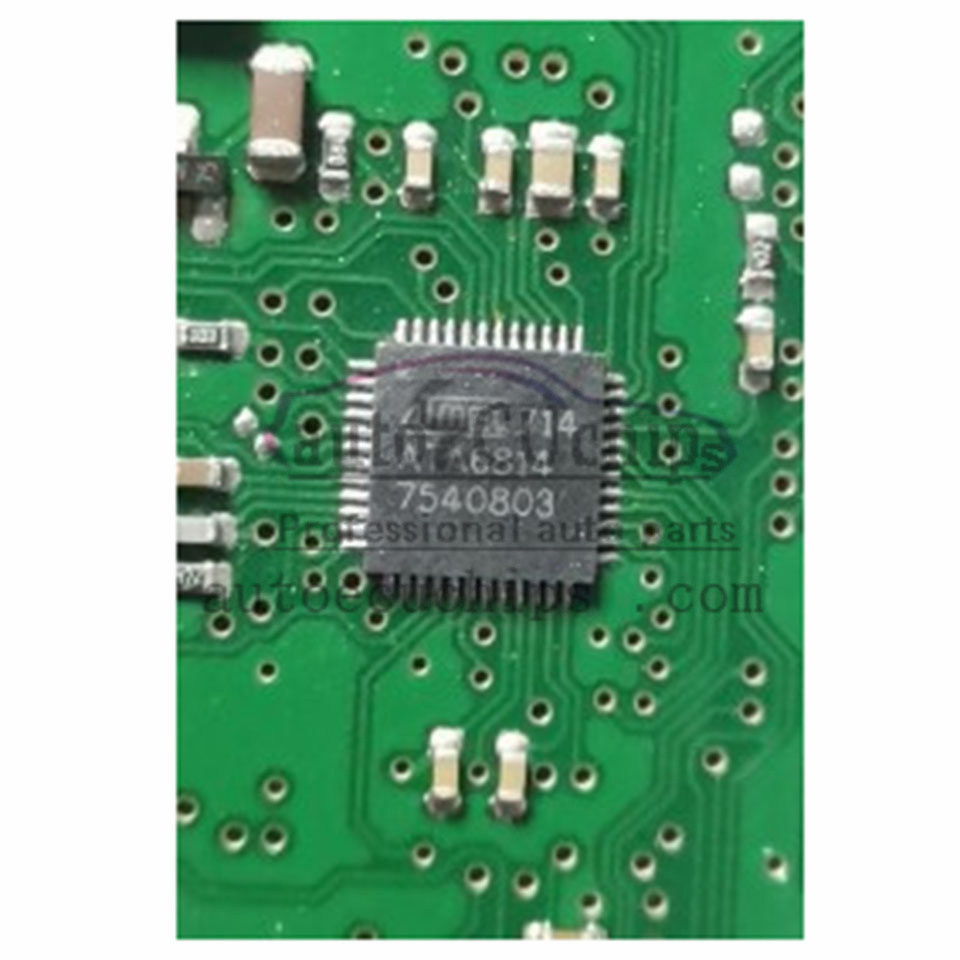

5pcs ATA6814 QFP48 Volkswagen Electronic Handbrake Module IC Auto ECU Chips

The ATA6814 parts manufactured by Atmel are available for purchase at Autoecuchips.com. Here you can find various types and values ​​of electronic parts from the world's leading manufacturers. The ATA6814 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.

The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the ATA6814 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

The following are detailed specifications for the ATA6814 chip:

Technical Specifications
- Package Type: PLQFP-48
- Number of Pins: 48 pins
- Operating Voltage Range: 6.5V to 26V
- Operating Temperature Range: -40°C to +150°C (automotive grade)
- SPI Interface: 8-bit
- Driver/Receiver Count: 4 protected and current-limited driver stages for relay control, plus a gate driver (with charge pump and bootstrap functionality) for controlling external FETs
- LED Control: 3 independent outputs for controlling status indicator LEDs
- Internal Bandgap Reference: Two independent 5V power supply voltage control and monitoring
- Watchdog circuit: Independent watchdog circuit monitors the normal operation of the microcontroller
- Oscillator: External RC circuit and fully integrated auxiliary oscillator for watchdog and other time constant clock references

Notes
- Compatibility: Please confirm that this chip is compatible with your application before purchase.
- Installation instructions:
  - Ensure the power supply voltage meets the chip specifications.
  - Use appropriate decoupling capacitors to reduce noise.
  - Operate the device within the specified temperature range.
- Technical Support: For further technical support, contact the supplier or manufacturer.

Summary
The ATA6814 is a high-performance automotive electronic control chip produced by Atmel, suitable for various automotive electronic applications, particularly excelling in body control modules and various automotive subsystems. Its wide operating voltage range and multiple protection features make it highly practical and reliable in automotive electronic systems.
