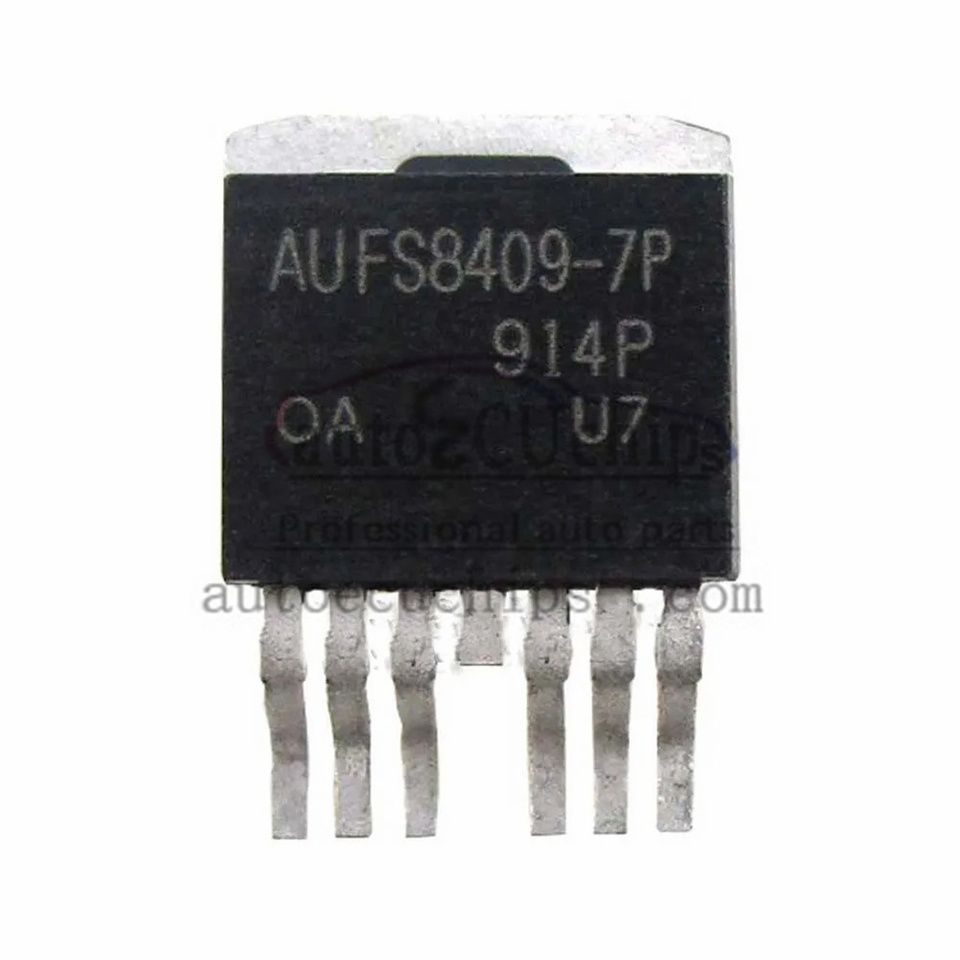

10PCS AUIRFS8409-7P AUIRFS8409 AUFS8409-7P TO-263-7 40V 522A
The AUIRFS8409-7P parts manufactured by autoecuchips.com are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The AUIRFS8409-7P components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the AUIRFS8409-7P Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The AUIRFS8409-7P is an automotive-grade N-Channel HEXFET power field effect transistor (MOSFET) manufactured by Infineon Technologies for a wide range of applications in automotive electronic systems. The following are detailed information about this chip:
- Features:
- Ultra-low on-resistance (RDS(on))
- Fast switching capability
- 175°C operating temperature
- Allows repeatable avalanche to Tjmax
- Lead-free, RoHS compliant
- Automotive grade approved (AEC-Q101)
Technical Parameters
- Drain Voltage (Vdss): 40V
- Continuous Drain Current (Id):
- At 25°C: 240A
- On-resistance (RDS(on)):
- At 10V: 0.55mΩ
- At 4.5V: 0.75 mΩ
- Maximum power consumption (Pd):
- At 25°C: 375W
- Operating temperature range (Tj): -55°C to +175°C
- Storage temperature range (Tstg): -55°C to +175°C
- GATE CHARGE (Qg): 460nC@10V
- Input capacitance (Ciss): 13.975nF
- Reverse transfer capacitance (Crss): 1.438nF
- Threshold voltage (Vgs(th)): 2.2V
Application Scenarios
- Battery switch: Used for automotive battery management system.
- Brushed Motor Drive: Used to drive brushed DC motors.
- Brushless Motor Drive: For driving brushless DC motors.
- DC-DC converter: For efficient power conversion.
- Electric Power Steering: For electric power steering systems in automobiles.
- Electric Heat Plugs: For heating elements.
- PTC Heaters: For heating systems.
- Relay Replacement: For replacing conventional relays.
Cautions
- Compatibility: Before purchasing, please make sure the chip is compatible with your application.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
- STORAGE CONDITIONS: It is recommended to store in a dry storage cabinet to avoid humidity.
Summary
The AUIRFS8409-7P is a high-performance automotive-grade N-Channel HEXFET power field effect transistor for a wide range of automotive electronic systems. Its ultra-low on-resistance and fast switching capability make it an excellent performer in high-efficiency power conversion and motor drives.
