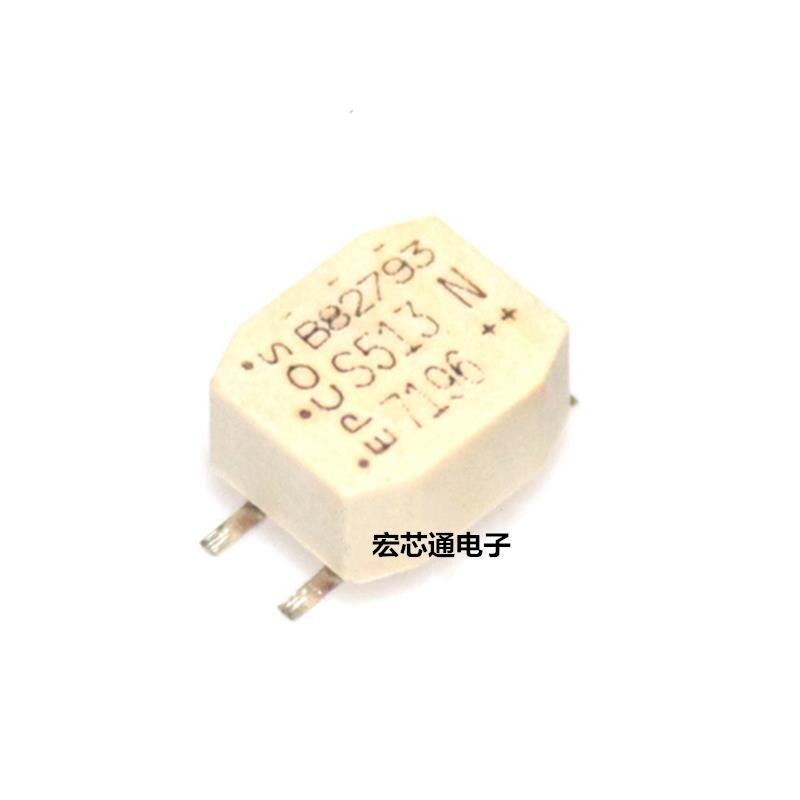

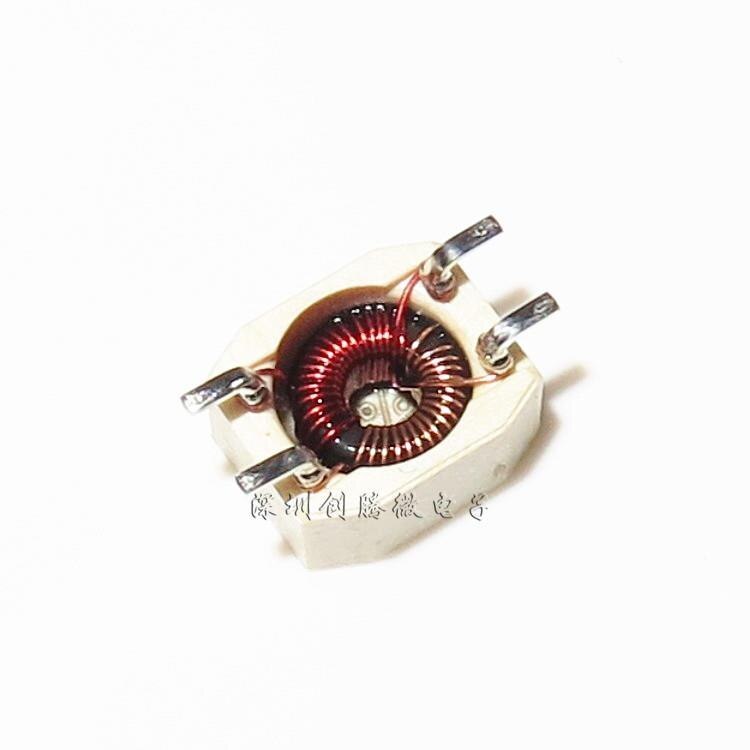

10PCS B82793S0513N201 B82793S513N201 B82793 S513N Repair IC Data Line Chokes for Telecommunications xDSL Transformers Chipnet Chip
The B82793S0513N201 parts manufactured by autoecuchips.com are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The B82793S0513N201 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the B82793S0513N201 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The B82793S0513N201 is an automotive-grade common mode filter manufactured by TDK, widely used in data and signal lines for common mode noise suppression. The following are detailed information about this chip:
- Features:
- High common mode impedance
- Low DC resistance (DCR)
- Wide operating temperature range
- AEC-Q200 compliant
- Lead-free (RoHS compliant)
Technical Parameters
- Package Type: SMD
- Rated voltage (DC): 80V
- Rated Voltage (AC): 42V
- Inductance: 51µH
- Test frequency: 100kHz
- Rated current: 800mA
- Operating Temperature Range: -40°C to +125°C
- Direct Current Resistance (DCR): 140mΩ
- Common mode impedance: 1.8kΩ@10MHz
- Dimensions:
- Length (L): 7.10mm
- Width (W): 6.00mm
- Thickness (H): 4.80mm
Application Scenarios
- Automotive electronic systems: for suppressing common mode noise in data and signal lines.
- Industrial automation: for protecting sensitive communication lines from electromagnetic interference.
- Communication equipment: for improving signal integrity and reducing electromagnetic interference.
Precautions
- Compatibility: Before purchasing, please confirm that the chip is compatible with your application.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
- STORAGE CONDITIONS: It is recommended to store in a dry storage cabinet to avoid humidity.
SUMMARY
The B82793S0513N201 is a high-performance automotive-grade common-mode filter for common-mode noise suppression in a wide range of data and signal lines. Its high common-mode impedance and low DC resistance make it an excellent performer in automotive electronic systems.
