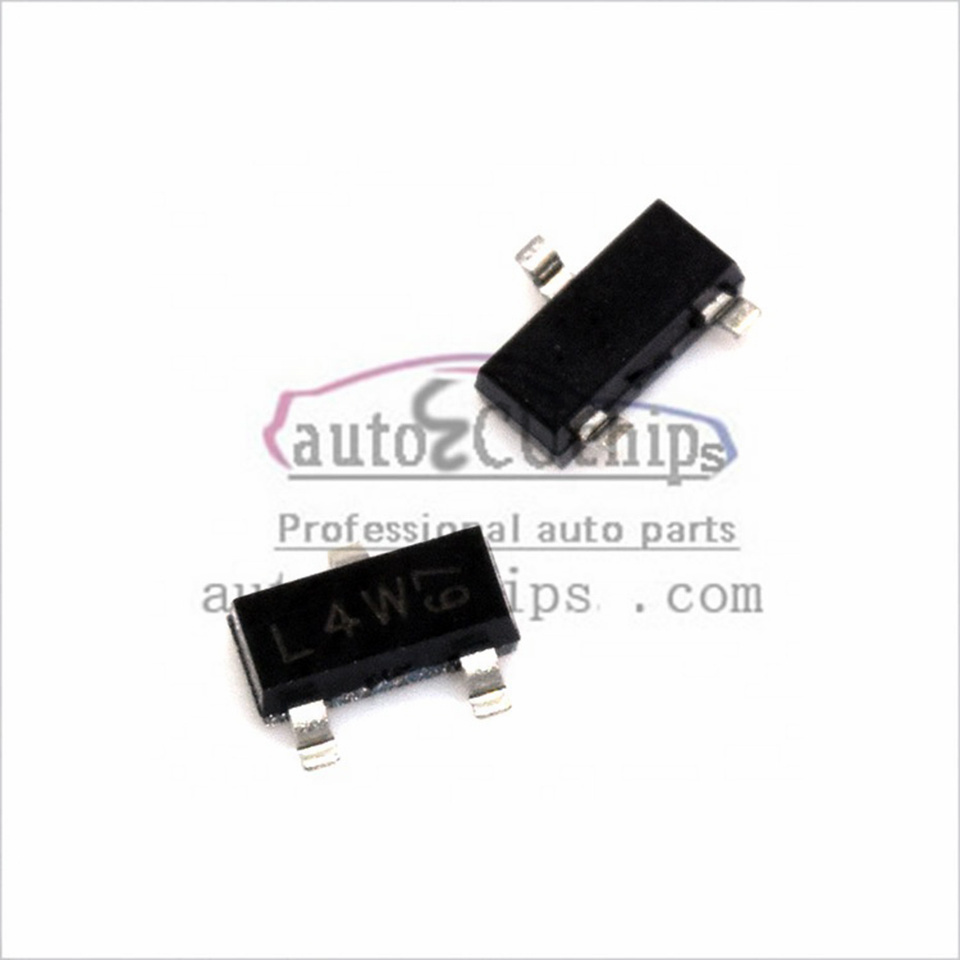

100pcs Diode BAT54 Marking L4W 0.2A/30V SOT23-3 for Buick Cruze ESP Module Small Transistor TAW
The BAT54 parts are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The BAT54 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the BAT54 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about the BAT54 chip:
Technical Specifications
- Forward voltage drop: typically 0.3V to 0.4V
- Reverse recovery time: less than 4ns
- Maximum forward current: 200mA
- Maximum reverse voltage: 30V
- Operating temperature range: -55°C to +150°C
- Package type: SOT-23
Functional Features
- Low forward voltage drop: Helps reduce energy consumption and improve efficiency.
- Fast switching speed: for high-frequency applications with rapid response.
- Small package size: space-saving and suitable for portable devices.
- High frequency characteristics: suitable for high frequency signal processing.
- Reverse Voltage Capability: Can withstand certain reverse voltage, enhancing system safety.
Applicable brands and models
- Universal: Suitable for a wide range of automobile brands and models, used in engine control units (ECUs), body control modules (BCMs), and so on.
Precautions
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your device.
- Installation Instructions:
- Make sure the chip is mounted in the correct orientation and the pins are aligned with the pads on the board.
- During soldering, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
