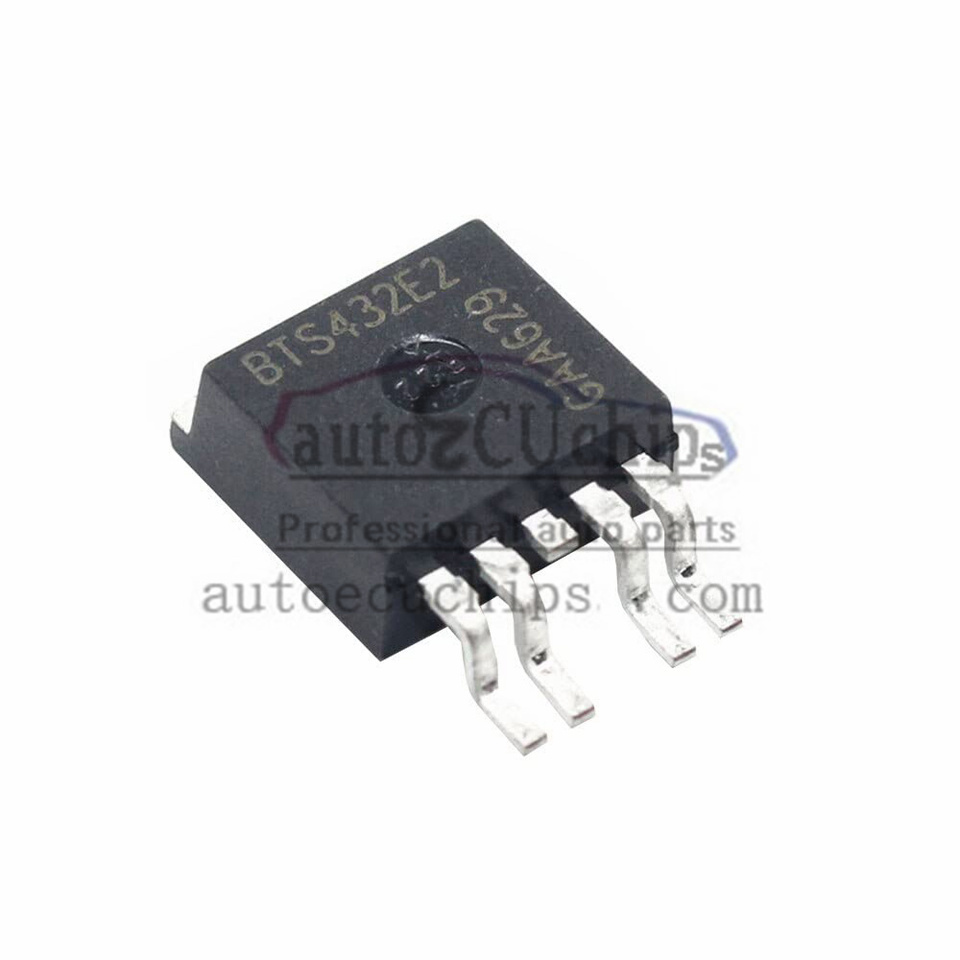

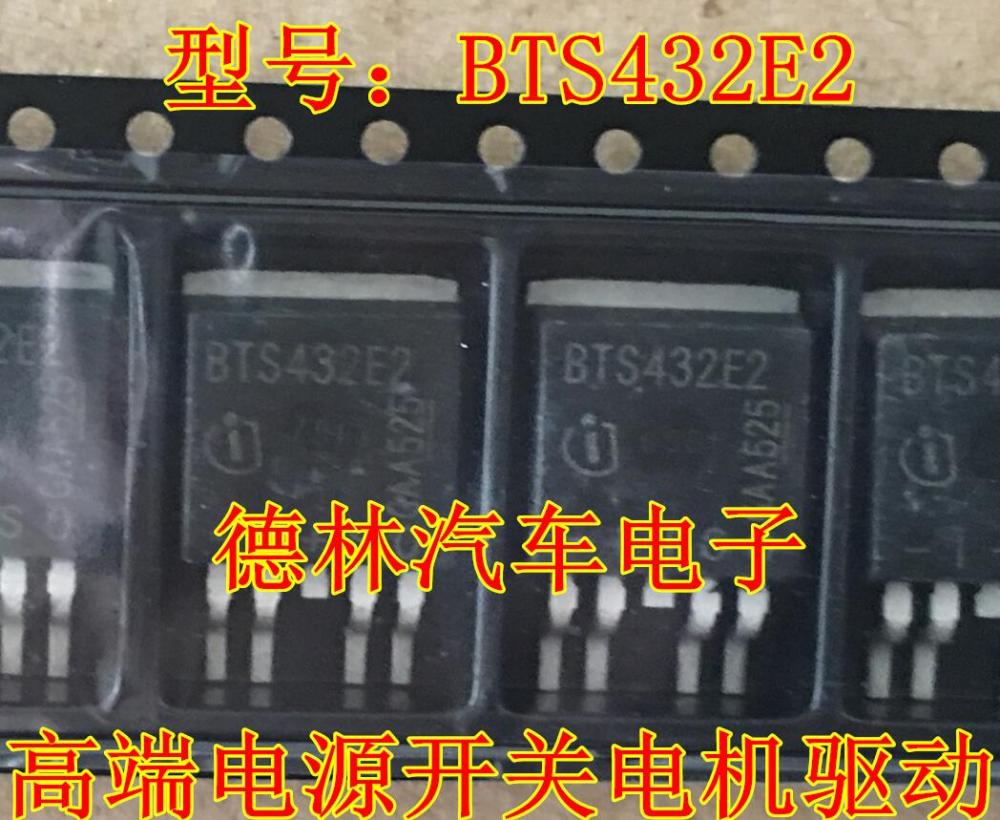

5pcs BTS432E2 SMD TO263 Tansistor High-end Automotive Computer Board Power Switch Chip Driver Repair Chipnet IC
The BTS432E2 TO263 parts are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The BTS432E2 TO263 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the BTS432E2 TO263 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us
Technical Specifications
- Maximum drain-source voltage (VDS): 42V
- Maximum continuous current (ID): 24A
- Maximum pulse current (ID,pulse): 44A
- On-resistance (RDS(on)): 38mΩ (at VGS=10V, ID=24A)
- Operating temperature range: -40°C to +150°C
- Package type: TO-263-5
- Characteristics:
- Clamp of negative voltage at output
- Short-circuit protection
- Current limitation
- Thermal shutdown
- Diagnostic feedback
- CMOS compatible input
- Electrostatic discharge (ESD) protection
- Overvoltage protection
- Undervoltage and overvoltage shutdown
- Auto-restart function
Application Fields
- Automotive electronics:
- Power switches for 12V and 24V DC grounded loads.
- For resistive, inductive and capacitive loads
- Replacement of electromechanical relays and discrete circuits
- Industrial controls:
- Power management
- Mechanical Controls
- Equipment Protection
- Communications equipment:
- Power Management
- Communication Base Stations
- Switches and Routers
- Renewable Energy:
- Switching control and protection in solar and wind energy systems
- Smart Home:
- Lighting controls
- HVAC systems
- Household Appliances
Precautions
- OPERATING TEMPERATURE RANGE: Ensure operation within a temperature range of -40°C to +150°C for automotive grade applications.
- Storage conditions: It is recommended to store in a dry, anti-static environment to avoid damage.
- Compatibility: Before use, make sure the chip is compatible with the hardware and software of the target application.
- Protections: Ensure that the circuitry contains appropriate protections, such as fuses and overcurrent protection, to prevent damage.
Summary
The BTS432E2 is a high-performance, intelligent high-side power switch for a wide range of automotive electronic systems and industrial control applications. If you require further technical support or a datasheet, please visit the link above or contact the supplier for details.
