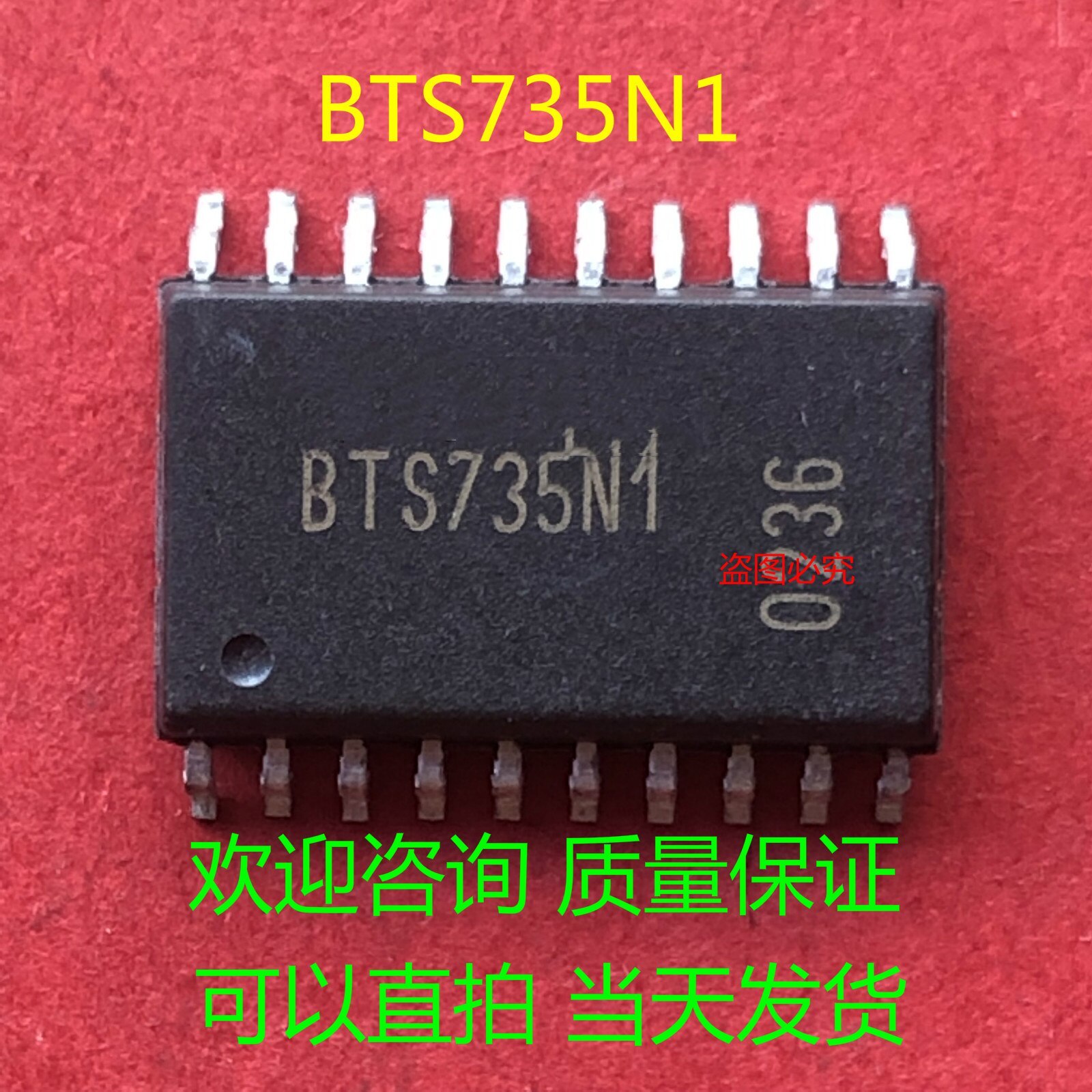

5Pcs New BTS735N1 SOP20 Automotive Computer Board Chip Repair Chipnet Original IC
The BTS735N1 parts are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The BTS735N1 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the BTS735N1 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us
Technical Specifications
- Maximum drain-source voltage (VDS): 42V
- Maximum continuous drain current (ID): 35A
- On-resistance (RDS(on)): 4.5mΩ (at VGS=10V, ID=35A)
- Operating temperature range: -40°C to +150°C
- Characteristics:
- High reliability to automotive grade standards
- Low on-resistance for high current applications
- Multiple protection functions, such as over-voltage protection, short-circuit protection, over-temperature protection, etc.
- Built-in voltage regulator to handle automotive design issues such as dual batteries, start-up voltage and load dips
- Supports PWM control inputs for pulse width modulation of multiple outputs with the same duty cycle.
- Separate reset input to clear all internal registers and shut down all outputs
- Independent over-temperature protection
- Environmentally friendly, lead-free packaging
Application Fields
- Automotive electronics:
- Engine Control Unit (ECU)
- Body Control Module (BCM)
- Instrument cluster control
- Electronic Parking Brake (EPB)
- Fuel Pump Control
- Electronic fan control
- Industrial Controls:
- Power Management
- Motor Drives
- Inverters
- Communication Devices:
- Power Module
- Communication base station power supply
Precautions
- Operating Temperature Range: Ensure to work within the temperature range of -40°C to +150°C to meet the requirements of automotive grade applications.
- Storage conditions: It is recommended to store in a dry, anti-static environment to avoid damage.
- Compatibility: Before use, make sure the chip is compatible with the hardware and software of the target application.
- Protections: Ensure that the circuitry contains appropriate protections, such as fuses and overcurrent protection, to prevent damage.
Summary
The BTS735N1 SOP20 is a high-performance, high-side smart power switch for a wide range of automotive electronic systems and industrial control applications. It provides high current and high voltage switching capability with low on-resistance and high reliability. If you require further technical support or a datasheet, please visit the link above or contact the supplier for details.
