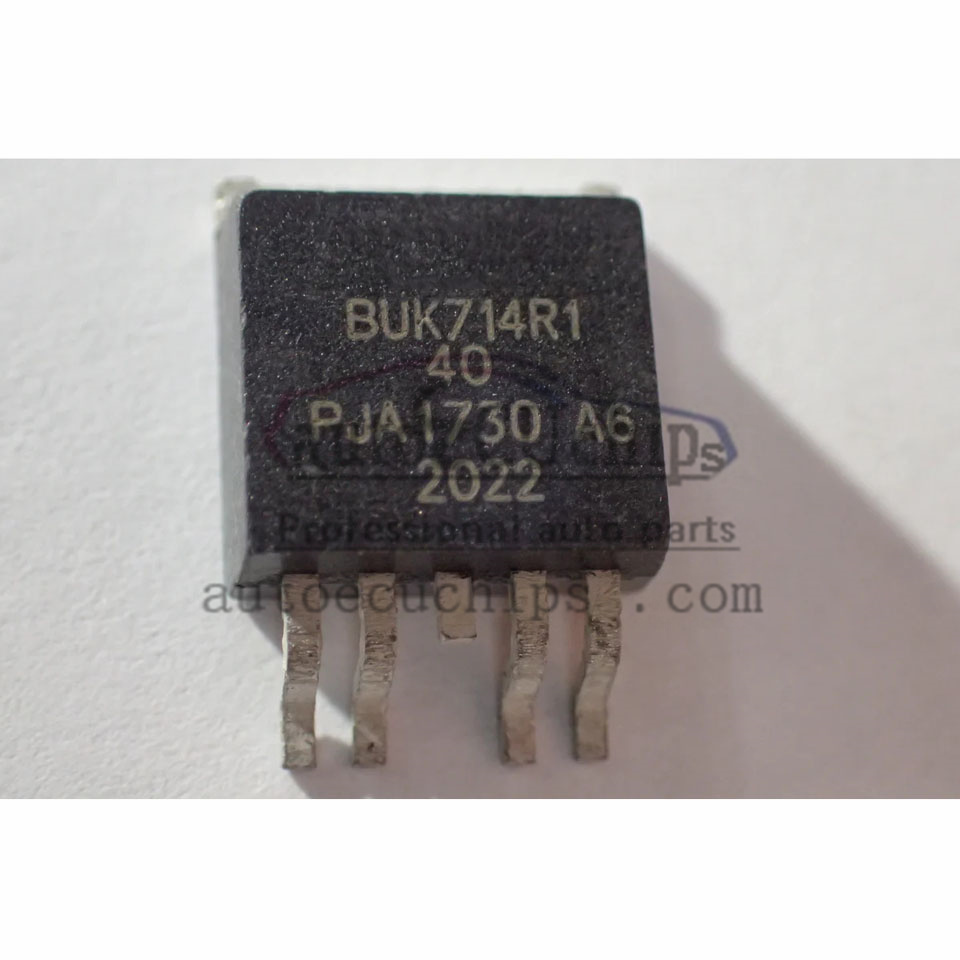

10Pcs BUK714R1-40BT BUK714R1 TO263-5 Repair Chip BMW N52 Transistor IC
The BUK714R1-40BT parts are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The BUK714R1-40BT components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the BUK714R1-40BT Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about the BUK714R1-40BT TO-263 chip:
Technical parameters
- Channel type: N-channel enhanced field effect transistor (FET)
- Maximum drain-source voltage (Vdss): 40 V (at 25°C ≤ Tj ≤ 175°C)
- Maximum drain current (Id): 75 A (at VGS = 10V, Tmb = 25°C; at VGS = 10V, Tmb = 100°C)
- Maximum Power Dissipation (Pd): 272 W (at Tmb = 25°C)
- Maximum junction temperature (Tj): 175°C
- On-resistance (Rds(on)): 3.4 mΩ (typical, at VGS = 10V, Id = 50A, Tj = 25°C)
- Total gate charge (Qg): 83 nC
- Input capacitance (Ciss): 5480 pF
- Output capacitance (Coss): 1210 pF
- Reverse transfer capacitance (Crss): 280 pF
Functional Features
- Integrated temperature sensor: Enables responsive temperature monitoring.
- Low on-state loss: Derived from low on-state resistance.
- Q101 compliant: suitable for automotive critical applications.
- Suitable for thermally demanding environments: rated to 175°C.
Application Areas
- Automotive electronic systems: Suitable for body control modules (BCM), on-board computers, door control modules, etc., for a variety of automotive makes and models. Specific applications: 12V loads, door control modules, etc.
- Specific applications: 12V loads, electric power assisted steering (EPAS), general purpose power switches, motors, lamps, and solenoids.
Precautions
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your car's electronic system.
- Installation Instructions:
- Make sure the chip is mounted in the correct direction and the pins are aligned with the pads on the board.
- During soldering, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
BUK714R1-40BT TO-263 is a high-performance N-channel MOSFET manufactured by Nexperia and widely used in automotive electronic systems. Its low on-resistance, high current carrying capacity and integrated temperature sensor make it an excellent performer in automotive electronic systems.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
