The 2SC4552 parts manufactured by NEC are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The 2SC4552 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the 2SC4552 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

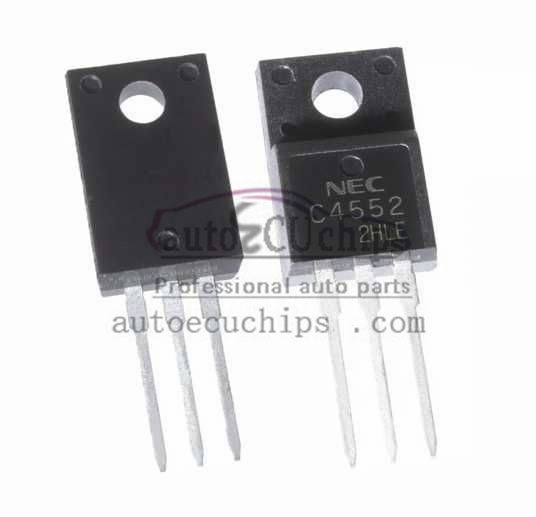

Below are detailed information about the 2SC4552 chip:
- Features : NPN type silicon epitaxial transistor with high hFE at low VCE (sat), 15A collector current, 60V collector breakdown voltage, 30W power dissipation, 120MHz hopping frequency.
Applicable Vehicle Models and Brands
- Applicable to the electronic control system of many automobile brands, such as BMW, Mercedes-Benz, Toyota, Volkswagen and so on.
Parameters
- Collector current (Ic): 15A.
- Collector breakdown voltage (Vceo): 60V.
- Emitter-base voltage (VEBO): 6V.
- Collector-base voltage (VCBO): 60V.
- Emitter-base conduction voltage (VBE(on)): 1.2V.
- Collector-emitter saturation voltage (VCE(sat)) : 0.3V (max., IC = 8A, IB = 0.4A).
- DC current gain (hFE) : ≥100 (VCE = 2V, IC = 3A).
- Power dissipation (PT): 30W.
- Operating temperature range (Tj): 150°C max.
- Storage temperature range (Tstg): -55°C to +150°C.
Caution
- Compatibility : Before purchasing, be sure to check if the 2SC4552 chip is compatible with your application, we recommend referring to the official design document for your specific application or consulting a professional.
- Mounting and Soldering:
- When soldering, please pay attention to control the temperature and time to avoid damage to the chip.
- Connect the circuit according to the correct pin definition to prevent the chip from being inoperative or damaged due to wrong wiring.
- Add necessary protection circuits in the circuit design, such as over-voltage protection, over-current protection, etc., to ensure the stable operation of the chip in the system.
- Use suitable decoupling capacitors to reduce the impact of power ripple on the chip.
Summary: 2SC4552 chips are widely used in automotive electronic systems and industrial control and other fields because of their excellent performance and reliability. In the process of procurement and use, pay attention to the compatibility and installation specifications of the chip, and make full use of the available technical support resources to ensure its stable operation in the electronic system.
