Relays NEW Original CF2-12V ACF231 CF2-12V-H15 ACF231 M09 DIP-8 Automotive Repair

Name: Relays NEW Original CF2-12V ACF231 CF2-12V-H15 ACF231 M09 DIP-8 Automotive Repair
Brand: https://autoecuchips.com/
SKU: CF2-12V-H15 ACF231 M09
Price: 4.5 USD
Availability: InStock

SKU: CF2-12V-H15 ACF231 M09

Chip Overview
Model: CF2-12V-H15
Package Type: DIP-8
Manufacturer: NAIS (now belongs to Panasonic)

Application Scenario: Mainly used in automotive electronic systems, such as Body Control Modules (BCMs), on-board computers, door control modules, etc., for controlling a variety of in-vehicle devices such as headlights, windshield wipers, and power windows.

5.0 (2 Reviews)

8 Sold

~~$6.50~~ $4.50

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (6)

1/1

Description

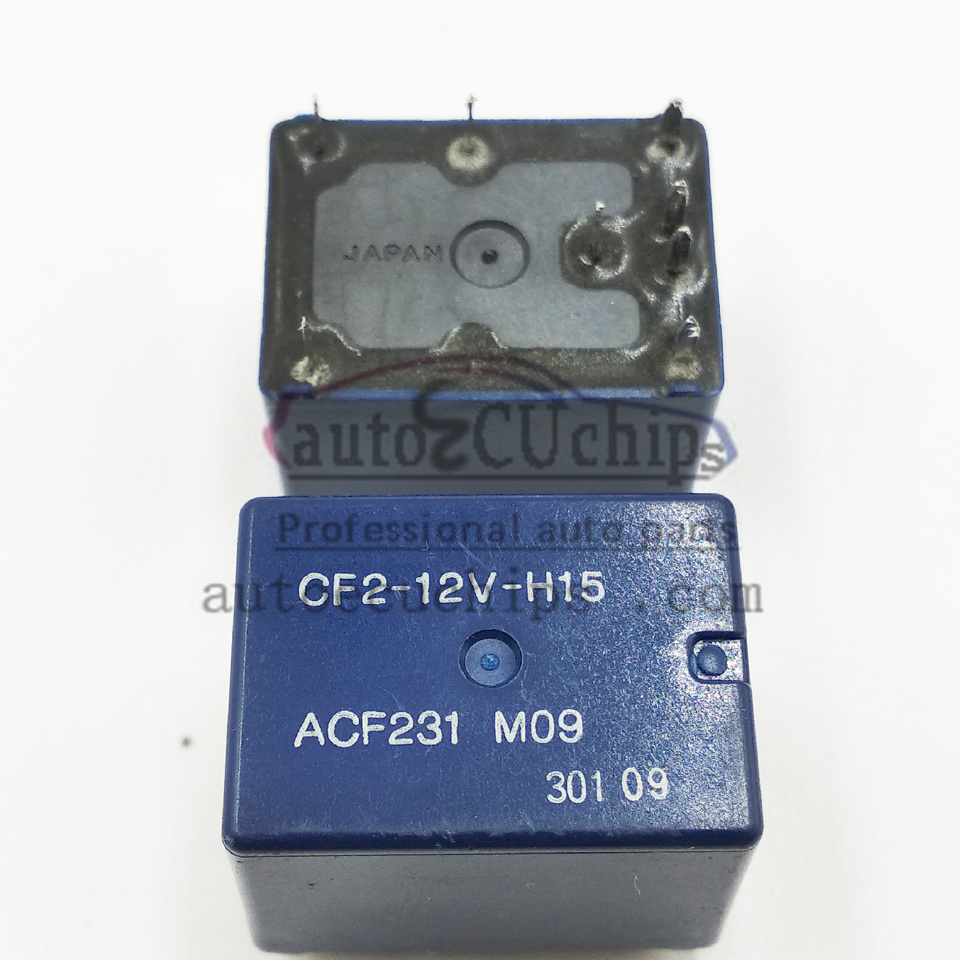

Relay NEW Original CF2-12V ACF231 CF2-12V-H15 ACF231 M09 DIP-8 Automotive Repair

The CF2-12V-H15 ACF231 M09 parts manufactured by NAIS are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The CF2-12V-H15 ACF231 M09 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.

The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the CF2-12V-H15 ACF231 M09 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

Below are detailed information about the CF2-12V-H15 chip:

Technical parameters
- Operating voltage: 12V DC
- Coil resistance: 225Ω
- Coil current: 53.3mA
- Contact form: 1 Form C (SPDT-NO, NC)
- Maximum switching current: 30A
- Maximum load current: 25A (at 12VDC for 2 minutes)
- Operating time: 10ms max (at 20°C)
- Release time: 5ms max. at 20°C
- Insulation resistance: 100MΩ minimum (at 500VDC)
- Operating temperature range: -40°C to +105°C
- Storage temperature range: -40°C to +125°C
- Number of pins: 8

Functional Features
- High current carrying capacity: Each contact can carry up to 30A of current, ensuring reliability in high load applications.
- Fast switching: Low operation and release times ensure fast response to control signals.
- Long life: Mechanical durability of over 1,000,000 operations for frequent use applications. Multiple protection functions: Includes thermal protection and a wide range of protection functions.
- Multiple Protection Functions: Includes thermal and short-circuit protection to ensure the safety of the chip in abnormal conditions.
- Compact package: DIP-8 package with small size for space-constrained board designs.
- Low power consumption: Low typical power consumption for battery-powered portable devices.

Applicable Models and Brands
- General Purpose: Suitable for many makes and models of automobiles for body control modules (BCM), on-board computers, door control modules, etc.

Precautions
- COMPATIBILITY: Before purchasing, please make sure the relay is compatible with your car's electronic system.
- Installation Instructions:
- Make sure the relay is mounted in the correct orientation and the pins are aligned with the circuit board pads.
- During soldering, pay attention to temperature control to avoid overheating and damaging the relay.
- Take appropriate static protection measures to avoid static electricity damage to the relay.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.

Summary
CF2-12V-H15 is a high performance automotive relay manufactured by NAIS for a wide range of automotive electronic applications. Its high current carrying capacity, fast switching speed and long life make it an excellent performer in automotive electronic systems. If you need to purchase this relay, you can find suitable suppliers through Digi-Key, Mouser Electronics, eBay, AliExpress, Taobao, Alibaba, Minitools and so on. During use, please ensure its compatibility with your automotive electronic system and follow the specifications for installation and operation.

Welcome to our shop!

Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.

Product Description:

1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.

2.We will ship the items within 3 working days after the payment is reached.

3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.

REFUNDS & RETURN:

We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.

You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).

Return the goods and the buyer is responsible for all expenses!!

If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
