Home > All Products > Nissan > CM1a-R-12V ACM33221 Repair Relays Nissan Teana Sunshine Sylphy NV200 Machi Fuse Box

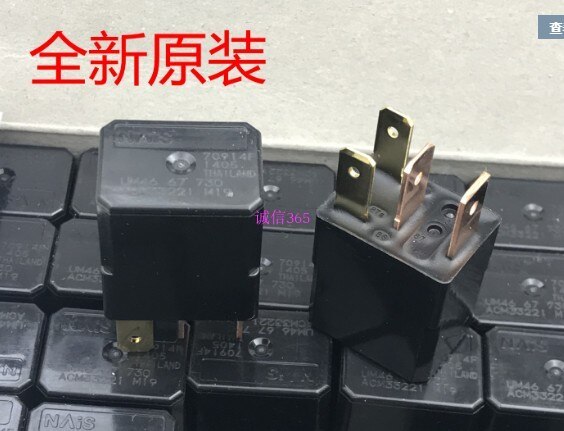

  • CM1a-R-12V ACM33221 for Nissan Teana Sunshine Loulan sylphy NV200 Machi fuse box relay
1/1
  • CM1a-R-12V ACM33221 for Nissan Teana Sunshine Loulan sylphy NV200 Machi fuse box relay

CM1a-R-12V ACM33221 Repair Relays Nissan Teana Sunshine Sylphy NV200 Machi Fuse Box

SKU: CM1a-R-12V ACM33221
Product Overview
- Model CM1a-R-12V ACM33221
- Manufacturer: Panasonic Panasonic
- Package: Plug-in, 15x20mm
- Application Scenario: Mainly used in automotive electronic systems, such as central locking, engine control unit, body control module, etc.
- Compatible Models: Nissan Skyline Sylphy NV200 Car Relay
0.0 (0 Reviews)
0 Sold
$0.00 $3.08
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
-
+
  • CM1a-R-12V ACM33221 for Nissan Teana Sunshine Loulan sylphy NV200 Machi fuse box relay
  • CM1a-R-12V ACM33221 for Nissan Teana Sunshine Loulan sylphy NV200 Machi fuse box relay
1/1
  • CM1a-R-12V ACM33221 for Nissan Teana Sunshine Loulan sylphy NV200 Machi fuse box relay
  • Description
The CM1a-R-12V ACM33221 is a high-performance, automotive-grade relay for a wide range of automotive electronic systems.are available for purchase at Autoecuchips.com. Its high reliability, hermetic design, and high current carrying capacity make it an ideal automotive electronic control solution. If you need further technical support or purchase advice, you can contact us for whatsapp +86 18718921345 or consult the data sheet.


Technical Specifications:

• Coil voltage: 12VDC

• Contact Form: 1 Form A (SPST, NO

• Maximum switching voltage: 14VDC

• Maximum switching current: 35A

• Current Rating: 20A (NO side)

• Coil current: 143mA

• Coil resistance: 96Ω

• Operating temperature range: -40°C to 85°C

• Operating time: 10ms max

• Release time: 10ms max

• Contact Material: Silver Alloy (Cadmium-Free)

• Contact resistance: 15mΩ max (2mΩ typical)

• Insulation Resistance: 20MΩ Min (500VDC test)

• Compressive strength: 500Vrms for 1 minute

• Mechanical life: 1,000,000 cycles min. (120 cycles/min)

• Electrical life: 100,000 cycles minimum (2 seconds ON, 2 seconds OFF)

• Operating humidity range: 5% to 85% RH (avoid icing or condensation)

• Weight: Approx. 20g

Package & Dimensions

• Package Type: Plug-in, 15x20mm

• Terminal Type: Plug-in type

• Protection element: Built-in resistor

• Protective structure: sealed

Fields of application

• Automotive Electronics:

• Car fuse box

• Power windows

• Automatic door locks

• Power mirrors

• Electric sunroof

• Power seats

• Lift gates

• Smart J/B related products
