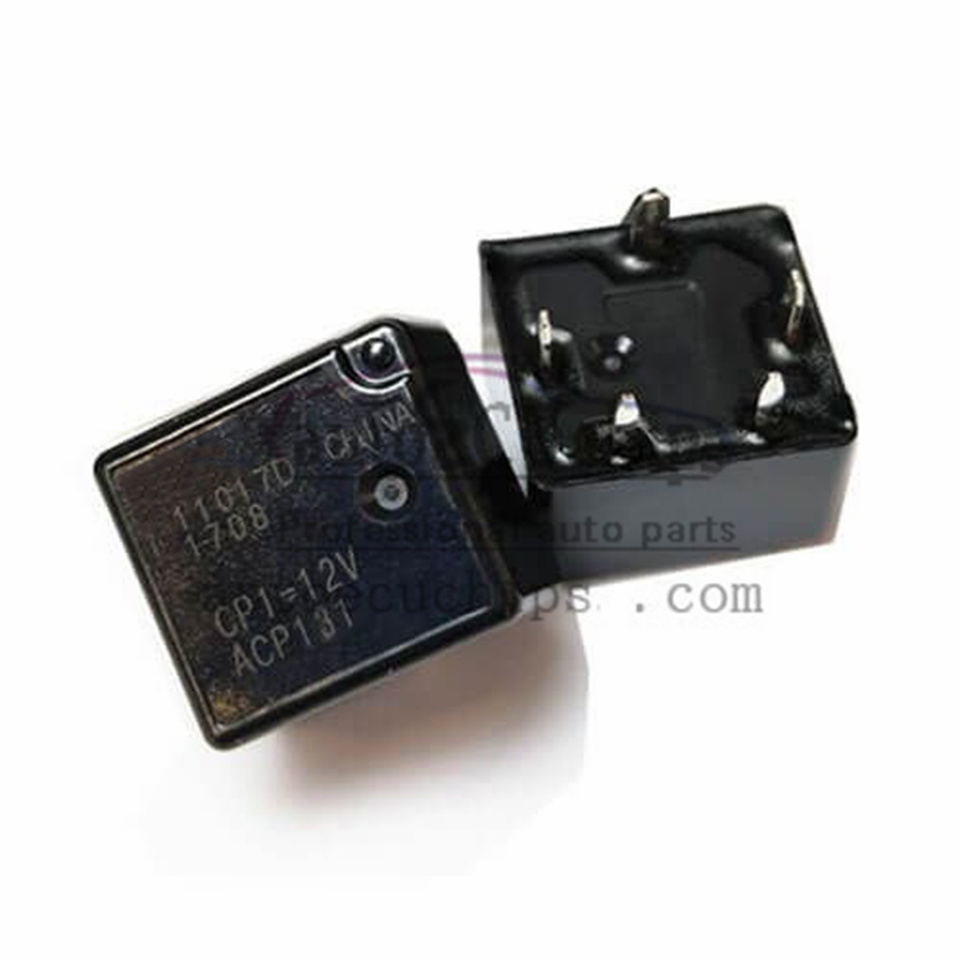

5pcs CP1-12V ACP131 Repair VW Volkswagen Magotan J764 ELV direction Lock Computer Fragile Relay 5PIN Oringial Relays
The CP1-12V ACP131 parts are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The CP1-12V ACP131 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the CP1-12V ACP131 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us
Technical specification
- Coil voltage: 12VDC
- Contact form: 1 Form C (single-pole double-throw)
- Maximum switching voltage: 14VDC
- Maximum switching current:
- Normally open (N.O.) side: 20A
- Normally closed (N.C.) side: 10A
- Maximum load current:
- 40A (2 minutes)
- 30A (1 hour) (at 20°C)
- 35A (2 minutes)
- 25A (1 hour) (at 85°C)
- Minimum switching load: 1A 14VDC
- Contact resistance:
- 100mΩ maximum (normally open side: 6mΩ typical, normally closed side: 8mΩ typical)
- Measurement method: 1A 6VDC voltage drop method
- Insulation Resistance: 100MΩ minimum (500VDC test)
- Voltage withstand strength:
- Between contacts: 500Vrms for 1 minute
- Between contact and coil: 500Vrms for 1 min.
- Action time: 10ms max (at rated coil voltage, 20°C)
- Release time: 10ms max (at rated coil voltage, 20°C, without diode)
- Operating temperature range: -40°C to +85°C
- Humidity range: 5% to 85% RH (avoid ice or condensation)
- Weight: approx. 4g
- Package type: PCB plug-in
- Protection structure: Hermetically sealed
Applications
- Automotive electronics:
- Window control
- Door lock control
- Sunroof control
- Hazard warning lights
- Flashers
- Defroster
- Power steering
- Seat Adjustment
Caution
- OPERATING TEMPERATURE RANGE: Ensure operation within a temperature range of -40°C to +85°C for automotive grade applications.
- STORAGE CONDITIONS: Storage in a dry, anti-static environment is recommended to avoid damage.
- Compatibility: Before use, verify that the relay is compatible with the hardware and software of the target application.
- Protections: Ensure that the circuitry contains appropriate protections, such as fuses and overcurrent protection, to prevent damage.
Summary
The CP1-12V ACP131 is a high performance automotive grade relay for use in a wide range of automotive electronic systems. If you require further technical support or a datasheet, please visit the link above or contact the supplier for details.
