The IPP80N06S2L-07 parts manufactured by Infineon are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The IPP80N06S2L-07 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the IPP80N06S2L-07 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

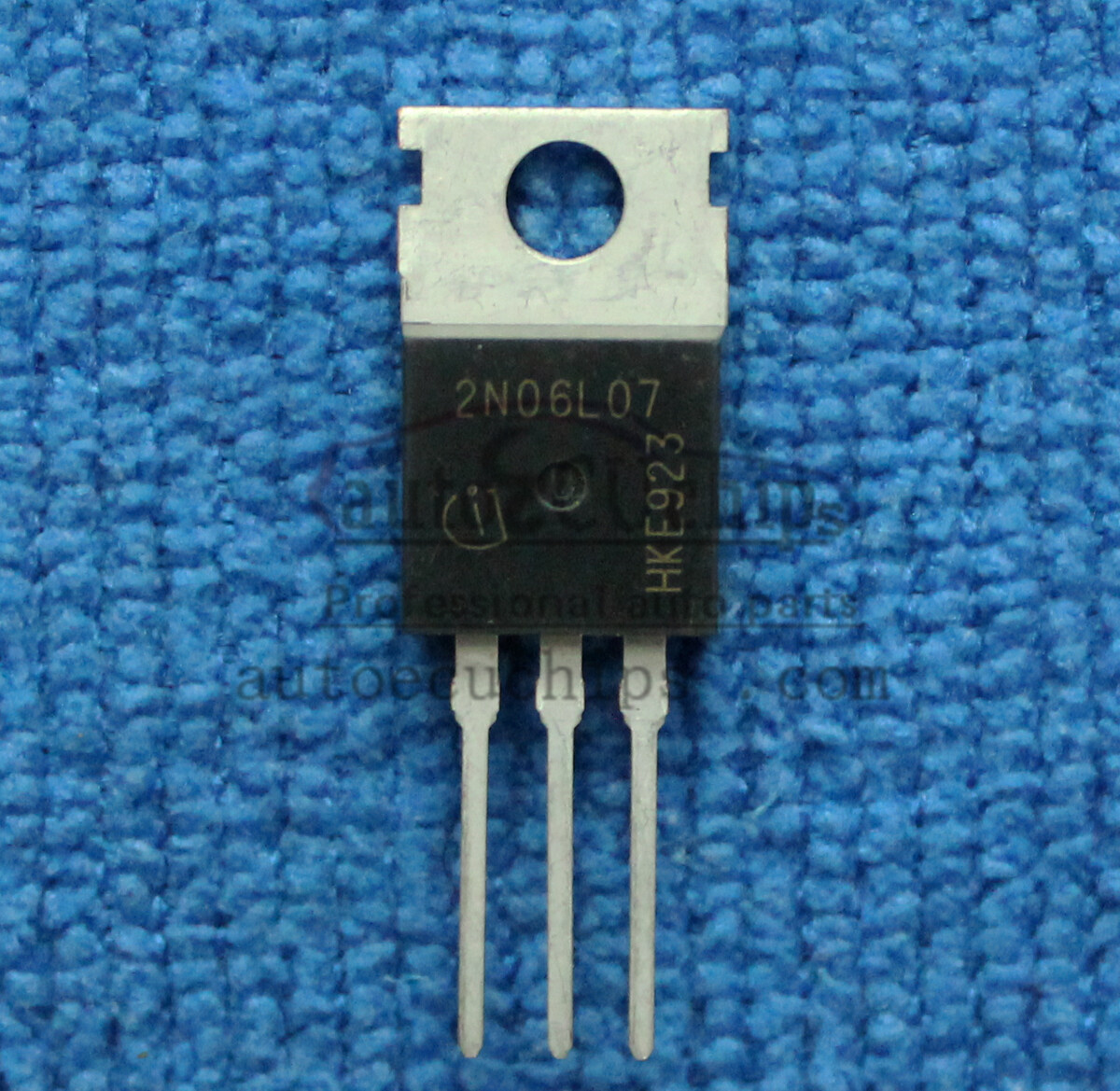

Here is more information about IPP80N06S2L-07 TO220 Chips:
- Features : N-channel MOSFET with low on-resistance, high withstand voltage (55V), and high current (80A) provides efficient power conversion and good thermal performance.
Applicable Models and Brands
- BMW: Electronic control systems for BMW 3-series, 5-series, 7-series, etc. Mercedes-Benz: Electronic control systems for Mercedes-Benz C-Class, E-Class, etc.
- Mercedes-Benz: Electronic control systems of Mercedes-Benz C-Class, E-Class, S-Class and other models.
- Volkswagen: Electronic control system of Volkswagen Golf, Passat, Maeten, etc. Toyota: Electronic control system of Toyota Corolla, etc.
- Toyota: Electronic control system of Toyota Corolla, Camry, etc. Honda: Electronic control system of Honda Accord, etc.
- Honda: Electronic control systems for models such as Honda Accord, Civic, and so on.
Parameters
- Maximum drain-source voltage (Vds): 55V, the maximum drain-source voltage that the chip can withstand is 55V.
- Maximum gate voltage (Vgs): ±20V, the chip's gate voltage range is - 20V to + 20V.
- Continuous drain current (Id): 80A (Tc), the maximum drain current that the chip can continuously carry is 80A (within the specified operating temperature range).
- On-resistance (Rds(on)): 0.005Ω @ 10V, 100A, the chip's on-resistance is 0.005Ω at a gate voltage of 10V and a drain current of 100A.
- Power Dissipation (Pd) : 210W (Tc), the maximum power dissipation of the chip is 210W (within the specified operating temperature range).
- Operating Temperature Range (Tj) : - 55°C to + 175°C, the chip is able to operate normally in the temperature range of - 55°C to + 175°C.
- Package size: The TO-220 package size is approximately 6.73mm x 9.65mm x 4.83mm.
Precautions
- Compatibility : Before purchasing, be sure to check if the IPP80N06S2L-07 TO220 chip is compatible with your vehicle and its electronic system, and it is recommended that you refer to your vehicle's official service manual or consult a professional service technician.
- Installation and Soldering:
- Be careful to control the temperature and time when soldering to avoid damage to the chip.
- Connect the circuit according to the correct pin definition to prevent the chip from working or being damaged due to wrong wiring.
- Add necessary protection circuits in the circuit design, such as over-voltage protection, over-current protection, etc., to ensure the stable operation of the chip in the automotive electronic system.
- Use suitable decoupling capacitors to minimize the impact of power ripple on the chip.
- Technical Support : If you encounter technical problems during the use of IPP80N06S2L-07 TO220 chips, try to contact the technical support department of the chip manufacturer, or seek help from other engineers and enthusiasts in technical forums and communities.
Summarize: IPP80N06S2L-07 TO220 chips are widely used in automotive electronic systems and industrial control and other fields because of their excellent performance and reliability. In the process of procurement and use, pay attention to the compatibility and installation specifications of the chip, and make full use of the available technical support resources to ensure its stable operation in the electronic system.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
