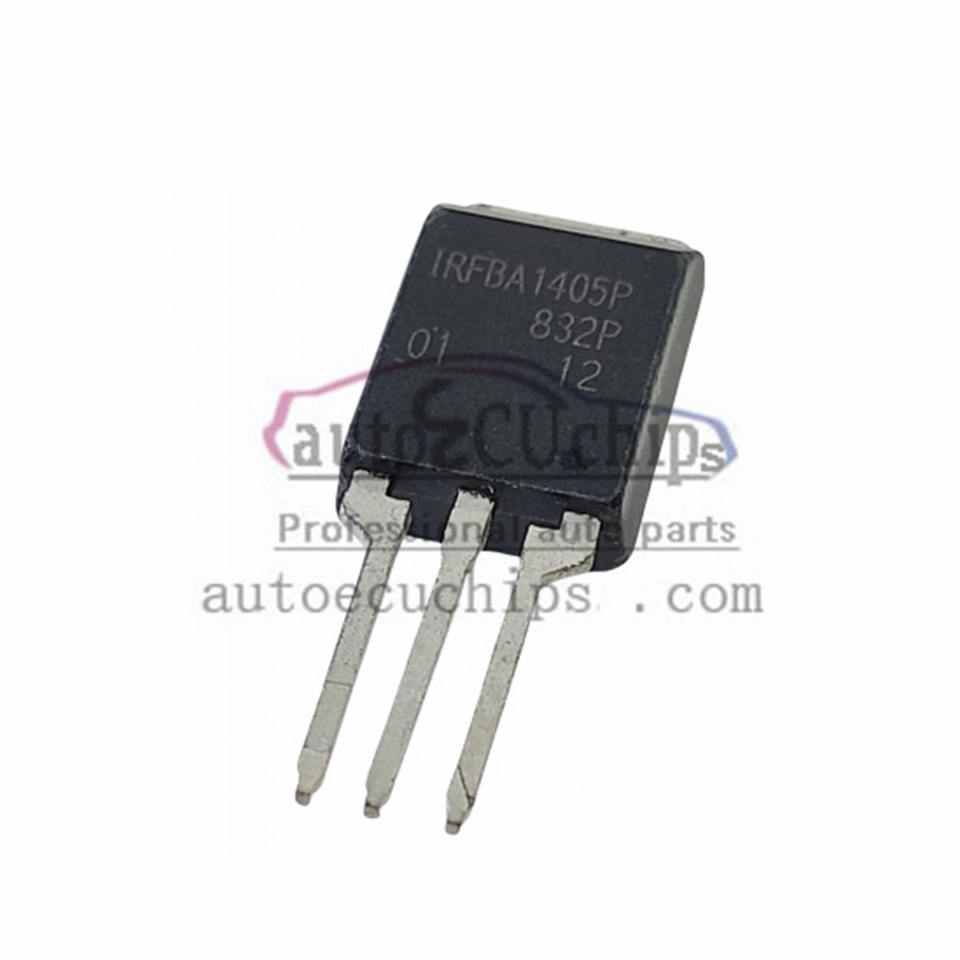

10pcs Original IRFBA1405P TO220 IRFBA1405P MOS Field Effect Tube 55V 174A
The IRFBA1405P parts manufactured by IR are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The IRFBA1405P components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the IRFBA1405P Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about the IRFBA1405P chip:
Technical Parameters
- Maximum drain-source voltage (Vdss): 55 V
- Maximum gate source voltage (Vgs): 20 V
- Maximum drain current (Id): 174 A
- Maximum power consumption (Pd): 330 W
- Maximum junction temperature (Tj): 175 °C
- On-resistance (Rds(on)): 4.3 - 5.0 mΩ
- Total gate charge (Qg): 170 nC
- Rise time (tr): 190 ns
- Fall time (tf): 110 ns
- Input capacitance (Ciss): 5480 pF
- Output capacitance (Coss): 1210 pF
- Reverse transfer capacitance (Crss): 280 pF
Characteristics
- High Power Handling Capability: Capable of handling up to 330W for high power applications.
- Low on-resistance: Low on-resistance of 4.3 - 5.0 mΩ helps to minimize power loss and improve system efficiency.
- Fast switching speed: 190 ns rise time and 110 ns fall time ensure fast switching operation and reduce switching losses.
- High operating temperature: Capable of operating at junction temperatures up to 175°C, making it suitable for high-temperature applications in automotive and industrial environments.
- Multiple protection features: Includes dynamic dv/dt rating, full avalanche rating, and allows for repetitive avalanche operation at maximum junction temperature.
Precautions
- COMPATIBILITY: Before purchasing, please check if the chip is compatible with your application.
- Installation Instructions:
- Make sure the chip is mounted in the correct orientation and the pins are aligned with the pads on the board.
- During the soldering process, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
SUMMARY
The IRFBA1405P is a high-performance N-channel MOSFET manufactured by Infineon Technologies with high power handling capability, low on-resistance and fast switching speed. It is widely used in automotive electronics and industrial motor drives for a variety of high-power and high-temperature environment application scenarios.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
