The 2SK3377 parts manufactured by Renesas are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The 2SK3377 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the 2SK3377 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The following are detailed specifications for the 2SK3377 chip:
Technical Parameters
- Transistor Type: N-Channel MOSFET
- Drain-Source Voltage (VDSS): 60 V (Min)
- Gate-Source Voltage (VGSS): ±20 V
- Continuous Drain Current (ID): 20 A (@ TC = 25°C)
- Pulsed Drain Current (IDP): 80 A
- Maximum Power Dissipation (PD): 30 W (@ TC = 25°C)
- On-Resistance (RDS(on)):
- Max: 44 mΩ (@ VGS = 10 V, ID = 10 A)
- Typical value is lower
- Gate Threshold Voltage (VGS(th)): 1.0 V – 2.5 V
- Input Capacitance (Ciss): 1200 pF (Typ)
- Output Capacitance (Coss): 150 pF (Typ)
- Reverse Transfer Capacitance (Crss): 70 pF (Typ)
- Rise Time (tr): 170 ns (Typ)
- Fall Time (tf): 100 ns (Typ)
- Reverse Recovery Time (trr): 50 ns (Typ)
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Avalanche Energy (EAS): 100% Avalanche Tested
- Package Thermal Resistance:
- RθJC (Junction-to-Case): 4.17°C/W
- RθJA (Junction-to-Ambient, Standard Pad): Approx. 50°C/W – 80°C/W
Key Features
- Low On-Resistance: RDS(on) ≤ 44 mΩ, reducing conduction losses
- High-Speed Switching: Suitable for high-frequency DC-DC applications
- Low Gate Charge: Reduces drive losses
- - Avalanche Capability: Built-in avalanche diode absorbs overvoltage during inductive load turn-off.
- 100% Avalanche Tested: Ensures consistency across production batches.
- Low Lot-to-Lot Variation: Guarantees device performance and reliability.

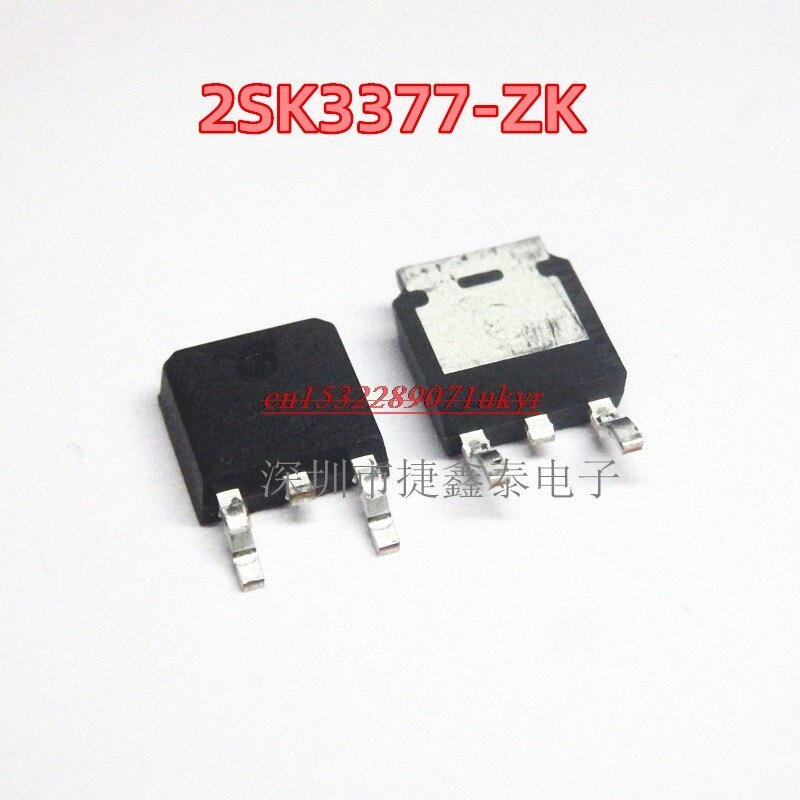

Pin Definitions (TO-252 / DPAK)
Pin | Name | Function
----|-------|----------------------------------------------------
1 | Gate (G) | Gate; Control Input
2 | Drain (D) | Drain; Power Output (Heat sink is internally connected to the Drain)
3 | Source (S) | Source; Ground / Return Path
Typical Application Circuits
1. DC-DC Buck Converter
```
VIN (+12V)
│
├──┬──┐
│ │ │
│ C1 │ 100µF
│ │ │
│ └──┤
│ │
├─────┤
│ │
├─D───┤──→ VOUT (+5V)
│ 2SK│ │
│3377 │ L1
├─G───┤ │ 33µH
│ │ │
PWM │ ├──┬──┐
Control │ │ C2│ 220µF
│ │ │ │ │
└──┬──┘ │ └──┘
│ │
S │
│ │
└───────┘
│
GND
```
- Features: Utilizes the 2SK3377's low RDS(on) and high-speed switching characteristics to achieve high-efficiency step-down conversion.
2. Motor Driver (H-Bridge Half-Arm)
```
VCC (+12V)
│
├──┬──┐
│ │ │
│ 2SK│ N-Channel High-Side Switch
│ 3377│
│ D │
├──┬──┤
│ │
├──┴──→ Motor
│
│ 2SK3377 or Complementary P-Channel
│ Low-Side Switch (Requires Level-Shifting Driver)
│
GND
```
- Features: Used for driving motors—such as fuel injectors, throttle bodies, and cooling fans—within automotive ECUs. 3. Power Switch (High-Side or Low-Side)
```
VIN (+12V)
│
├──┬──┐
│ │ │
│ 2SK│
│ 3377│
│ D │
├──┬──┤
│ │
├──┴──→ Load
│
S
│
│
GND
```
- Features: Low-side switching application; the gate is driven directly by a 5V/3.3V MCU.
Key Characteristic Curves
Parameter Conditions Typical Value
RDS(on) vs VGS ID = 10 A 44 mΩ @ VGS = 10 V
RDS(on) vs ID VGS = 10 V 35 mΩ @ ID = 5 A
VGS(th) vs TJ - -3 mV/°C Temperature Coefficient
Ciss vs VDS VGS = 0 V 1200 pF @ VDS = 25 V
Precautions
- Compatibility: The 2SK3377 is a standard N-channel MOSFET with a gate threshold voltage (VGS(th)) of 1.0–2.5V, making it suitable for 5V or 10V gate drive applications. When driven by 3.3V logic, the VGS(th) margin should be carefully verified.
- Mounting Instructions:
- For the TO-252 / DPAK package, the heatsink tab is internally connected to the Drain terminal; therefore, when designing the PCB layout, consider either providing electrical isolation or ensuring the heatsink operates at a common potential.
- A copper pad area of ≥ 6 cm² is recommended to minimize thermal resistance.
- For high-current applications (>10A), it is recommended to add thermal vias to conduct heat to internal copper layers or to an external heatsink.
- For inductive loads (e.g., motors, solenoids), a freewheeling diode must be connected in parallel. While the MOSFET's internal body diode can be utilized, its reverse recovery speed is relatively slow; therefore, connecting an external fast-recovery diode is recommended.
- Soldering Temperatures: For reflow soldering, the peak temperature should not exceed 260°C for a duration of ≤ 10 seconds; for manual soldering, the iron tip temperature should not exceed 350°C for a duration of ≤ 5 seconds. - Technical Support: For further technical support, it is recommended to refer to Renesas Application Notes or contact an authorized distributor.
Summary
The 2SK3377 is a classic N-channel power MOSFET manufactured by Renesas (formerly NEC). Housed in a TO-252 (DPAK) surface-mount package, it features a 60V breakdown voltage, a continuous current rating of 20A, and extremely low on-resistance (44 mΩ @ VGS = 10V). Its high-speed switching characteristics, 100% avalanche testing, and low gate charge make it highly practical and reliable for applications such as automotive ECUs, motor drives, DC-DC converters, and industrial control systems; it stands as a widely adopted power switching solution within the 60V/20A class.
