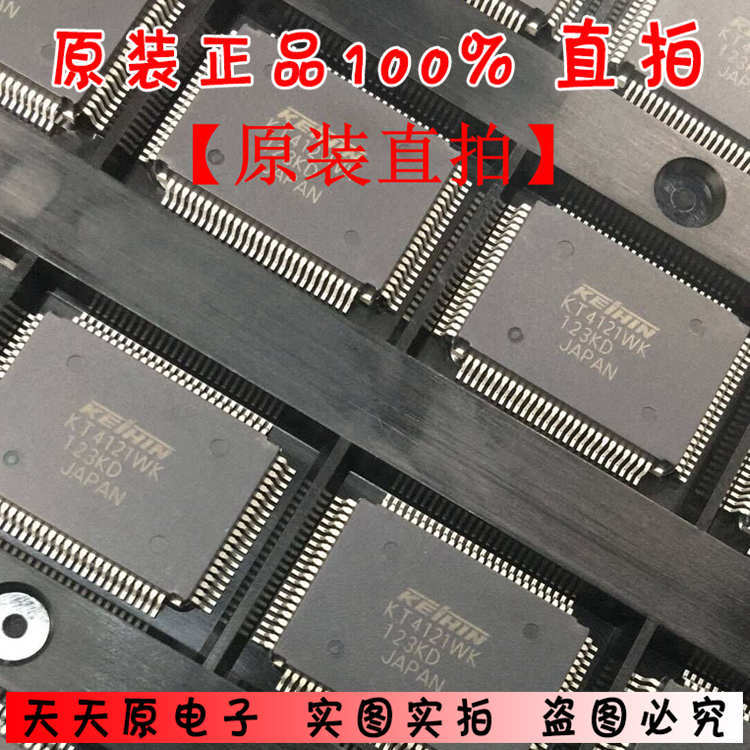

The KT4121WK parts manufactured by KEIHIN are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The KT4121WK components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the KT4121WK Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Here are the detailed specifications for the KT4121WK chip:
---
Technical Specifications
Parameter Specification
Function Type Automotive ECU-specific IC (ASIC / MCU)
Package Type QFP-92 / HQFP-92
Pin Count 92 pins
Operating Temperature Range -40°C to +105°C (Extended Industrial Grade)
Memory Type May include Flash / EEPROM (for calibration data storage)
Manufacturing Process Automotive-grade CMOS technology
RoHS Status Lead-free / RoHS compliant
Physical Characteristics
Parameter Specification
Package Dimensions Standard QFP dimensions (approx. 20mm × 20mm; varies by version)
Pin Pitch 0.65 mm or 0.8 mm (typical QFP pitch)
Package Material High-quality plastic package ensuring durability and heat dissipation
Thermal Characteristics Designed to maintain optimal operating temperature under typical IC workloads
---
Pin Definitions (QFP-92 / HQFP-92)
As this is a specialized automotive ASIC, specific pin definitions are not fully publicly disclosed. Based on typical automotive ECU chip configurations:
Pin Range Functional Category Typical Functions
1-20 Power & Ground VCC, VSS, Analog Power, Digital Power
21-40 Sensor Inputs Analog inputs (temperature, pressure, throttle position, etc.)
41-60 Actuator Outputs Injector drive, ignition control, relay drive
61-80 Communication Interfaces CAN bus, K-Line, SPI, I2C
81-92 Clock & Reset Crystal oscillator input, reset, test pins
> Note: Please refer to the manufacturer's datasheet or the ECU circuit diagram for specific pin assignments. ---
Typical Application Circuits
1. Automotive ECU Core Control Module (e.g., Honda CR-V)
```
+12V (Car Battery)
│
├──┬──────────────┐
│ │ │
│ Voltage Regulator Circuit │
│ │ │
├──┴──┐ │
│ │ │
├─VCC─┤ │
│ KT │ │
│4121WK│ │
│ │ │
├─VSS─┤───────────┤→ GND
│ │ │
├─AIN─┤←──────────┤→ Sensor Input (Temperature, Pressure, etc.)
│ │ │
├─AOUT┤──────────→┤→ Actuator Output (Fuel Injector, etc.)
│ │ │
├─CANH┤←────────→┤→ CAN Bus High
│ │ │
├─CANL┤←────────→┤→ CAN Bus Low
│ │ │
├─XTAL┤←────────→┤→ Crystal Oscillator (4-20 MHz)
│ │ │
└─────┴───────────┘
│
GND
```
- Features: Acts as the core ECU chip; processes sensor signals, executes control algorithms, drives actuators, and communicates with the vehicle network.
2. ECU Repair and Replacement Application
```
Original ECU Board
│
├──┬──────────────────┐
│ │ │
│ Original KT4121WK │
│ (Faulty/Damaged) │
│ │ │
├──┴──┐ │
│ │ │
│ New KT4121WK │
│ (Replacement Chip) │
│ │ │
├─Soldering─┤ │
│ │ │
└─────┴───────────────┘
│
GND
```
- Repair Note: This chip is known in the automotive repair industry as a "Vulnerable Chip." It is prone to failure in automotive ECUs due to voltage fluctuations, thermal stress, or aging, making it a common point of failure. ---
Key Specifications
Parameter Condition Typical Value
Operating Voltage Automotive system 5V / 3.3V (internal regulation)
Operating Current Typical load 100–500 mA
Standby Current Sleep mode < 1 mA
A/D Conversion Precision Sensor input 10–12 bit
PWM Output Frequency Actuator control 1–20 kHz
CAN Bus Rate Communication 125 kbps – 1 Mbps
Data Retention Flash/EEPROM 10 years
Erase/Write Cycles Flash 10,000 – 100,000 cycles
---
Alternative Models and Competitors
Model Manufacturer Differences
KT4121WK KEIHIN Original model, QFP-92, commonly used in Honda ECUs
KT4121 KEIHIN Simplified model, similar functionality
KT4112AW KEIHIN Related model, QFP-144P, larger package
KT4113AW KEIHIN Related model, TQFP-144P
KT4131YT KEIHIN / TOSHIBA Related model, QFP package
KT4151 KEIHIN Related model, QFP package
TB9315FQ TOSHIBA Potential compatible or alternative model, QFP-92
37820-RZA-A75 HONDA / KEIHIN Complete ECU module model, contains KT4121WK
---
Notes
- Compatibility: The KT4121WK is a dedicated automotive chip and cannot be directly replaced by a general-purpose MCU. When replacing, verify the following:
- Package matches exactly (QFP-92/ HQFP-92)
- Pinout is compatible with the original ECU circuitry.
- Internal program/calibration data must be re-flashed or migrated from the original chip.
- Repair Instructions:
- The QFP-92 package features a fine pin pitch (0.65–0.8 mm), requiring professional SMT rework equipment (e.g., hot air stations, BGA rework stations).
- Soldering temperature: Reflow peak 245–260°C, duration ≤ 10 seconds; manual soldering is not recommended due to the risk of damage.
- ESD Protection: Automotive ECU chips are sensitive to ESD; operators must wear anti-static wrist straps and use anti-static mats.
- Balling/Tinning: For HQFP (Heatsink QFP) variants, pay special attention to the treatment of the bottom thermal pad.
- Data Backup: Read Flash/EEPROM data from the original chip before replacement to facilitate migration to the new chip.
- ECU Matching: Some vehicle models require immobilizer matching or programming after the ECU chip is replaced.
- Common Failures:
- Chip damage caused by voltage fluctuations in the vehicle's power system (e.g., jump-starting, alternator failure).
- Aging of internal connections due to prolonged operation in high-temperature environments.
- Pin short circuits or open circuits caused by moisture or corrosion.
- Technical Support: For further technical assistance, it is recommended to contact professional automotive ECU repair specialists or authorized KEIHIN distributors.
---
Summary
The KT4121WK is a specialized automotive ECU integrated circuit manufactured by KEIHIN. It utilizes the QFP-92 / HQFP-92 package and operates within a temperature range of -40°C to +105°C. This chip is widely used in Engine Control Units (ECUs) for vehicles such as Honda models, handling core functions including sensor signal processing, actuator driving, and vehicle network communication. In the automotive repair industry, the KT4121WK is known as a "vulnerable chip" and is a common source of ECU failures, requiring professional equipment for replacement and data migration. As an automotive-grade dedicated ASIC, the KT4121WK features high reliability, a wide operating temperature range, and long-term data retention capabilities, making it a critical component in automotive powertrain control systems.
