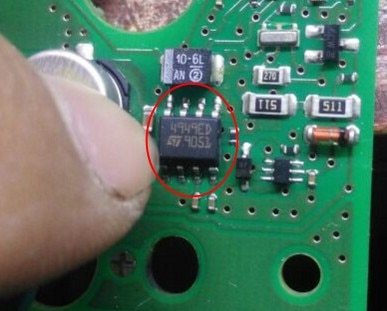

10pcs 4949ED L4949ED SOP8 IC Car ECU Chip Repair Mercedes-Benz Steer Lock Module ELV Chipnet
The L4949ED parts manufactured by autoecuchips.com are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The L4949ED components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the L4949ED Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

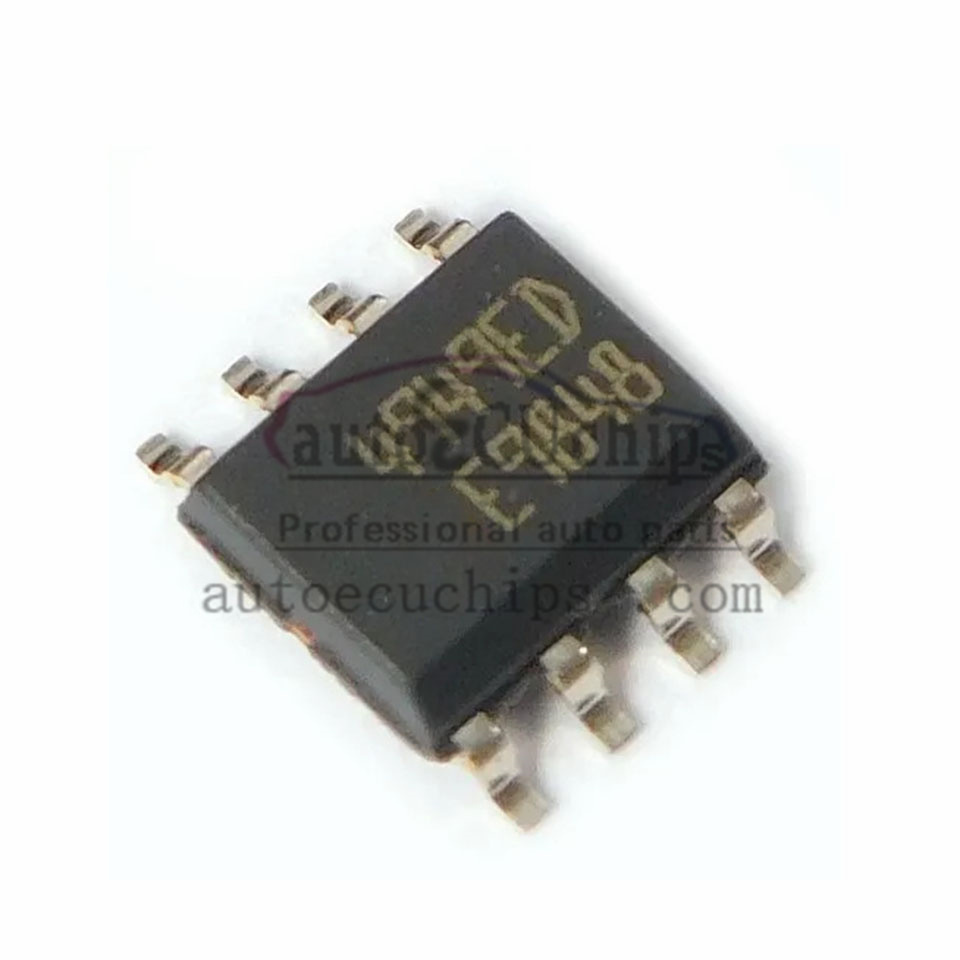

L4949ED SOP8 Details
The L4949ED is a multi-function Low Dropout (LDO) linear voltage regulator manufactured by STMicroelectronics, which is widely used in automotive electronic systems. The following is the detailed information about this chip:
- Features:
- AEC-Q100 certified
- Lead-free (RoHS compliant)
- Operating voltage range: 5V to 28V
- Transient voltage up to 40V
- Very low quiescent current
- Highly accurate output voltage (5V ±1%)
- Maximum output current: 100mA
- Low dropout voltage (less than 0.5V)
- Reset circuit for output voltage monitoring
- Programmable reset pulse delay
- Voltage sense comparator
- Thermal shutdown and short circuit protection
Technical Data
- Operating voltage range: 5V to 28V
- Transient voltage: up to 40V
- Maximum output current: 100mA
- Output Voltage: 5V ±1%.
- Step-down voltage: less than 0.5V
- Quiescent current: very low
- Operating temperature range: -40°C to +125°C
- Storage temperature range: -55°C to +125°C
Pin Function
Pin No. Pin Name Function
1 VS Input supply voltage
2 SI Voltage sense input
3 VZ Pre-regulator output voltage
4 CT Reset pulse delay adjustment
5-7 GND Ground
8 VOUT Output Voltage
Application Scenarios
- Automotive electronic systems: for engine control units (ECUs), body control modules (BCMs), etc.
- Industrial automation: for industrial equipment requiring high reliability and precision.
- Power Management: For efficient power conversion and management.
Precautions
- COMPATIBILITY: Before purchasing, please verify that the chip is compatible with your application.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
- STORAGE CONDITIONS: It is recommended to store in a dry storage cabinet to avoid humidity.
Summary
The L4949ED SOP8 is a high performance low dropout voltage linear voltage regulator for a wide range of automotive electronic systems. Its low dropout voltage, high precision output and multiple protection functions make it an excellent performer in automotive electronic systems. If you need to purchase this chip, you can find suitable suppliers through DigiKey Electronics, Mouser Electronics, Alibaba and other platforms.
