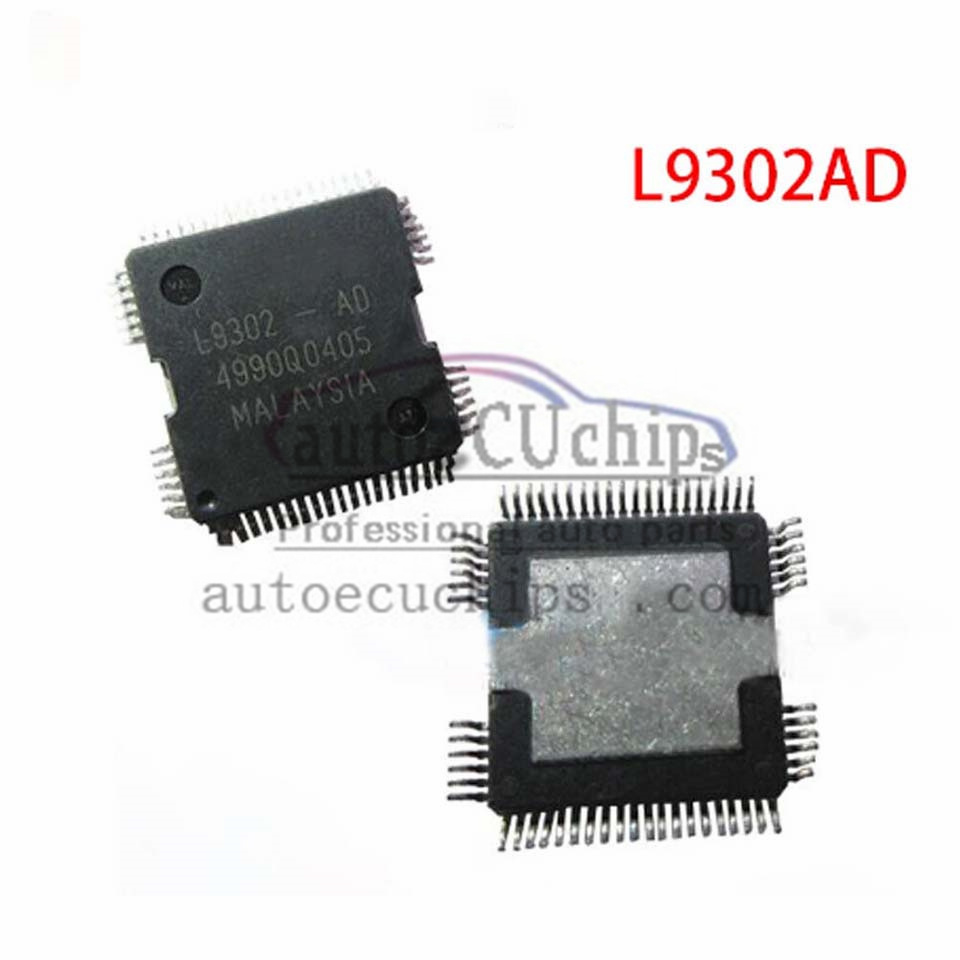

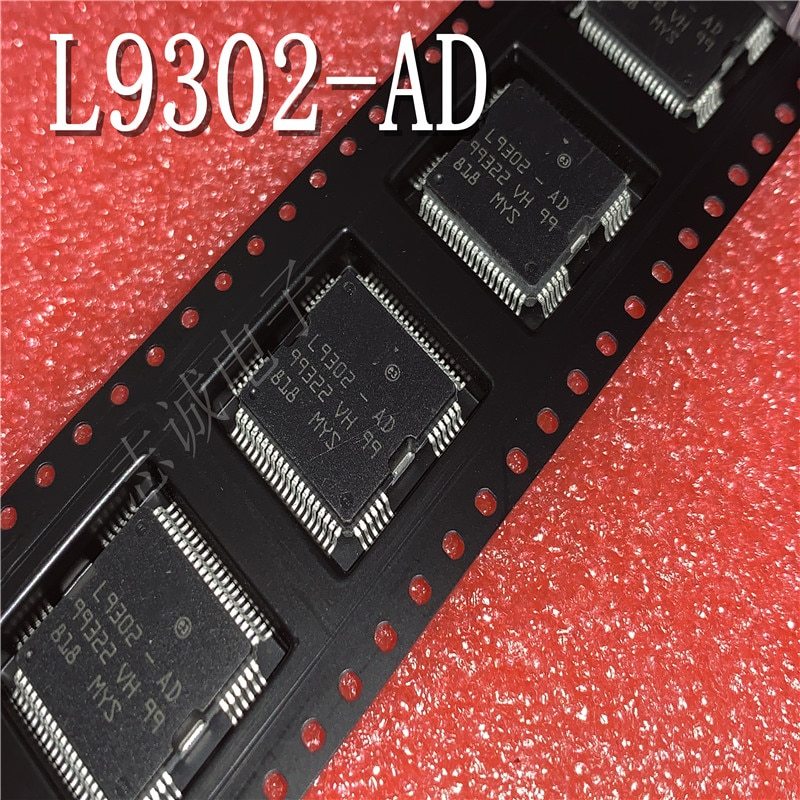

5pcs L9302-AD L9302 QFP64 Car Ignition Fuel injection Chip Nissan Teana Car engine ESP Repair IC
The L9302-AD parts manufactured by ST are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The L9302-AD components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the L9302-AD Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about the L9302-AD chip:
Technical Parameters
- Function: Automotive ignition and injection driver integrated circuit (IC)
- IC type: Darlington transistor array
- Number of channels: 4
- Maximum voltage level: high voltage for automotive applications
- Current Handling: High current for automotive applications
- Input compatibility: Compatible with low level logic signals
- Protection: Thermal shutdown, overcurrent protection
- Package Type: HiQUAD-64 (surface mount)
- Operating temperature range: Automotive temperature range (-40°C to +125°C)
Functional Features
- High voltage and current handling: For high power requirements needed in automotive applications.
- Multiple channels: Typically contains multiple Darlington transistor channels (four in most cases), allowing independent control of multiple loads, which is critical for managing the various components in an engine.
- Compatible with Low-Level Logic Signals: The IC is designed to work seamlessly with microcontrollers and other control circuits commonly found in automotive electronic control units (ECUs).
- Protection mechanisms: Integrated thermal shutdown and overcurrent protection ensure safe and reliable operation, preventing damage caused by overheating and overcurrent.
- Wide Operating Temperature Range: Capable of operating in the extreme temperature conditions encountered in the automotive environment.
- Application Flexibility: In addition to the main ignition and injection control applications, it can also be used in other automotive application scenarios that require high voltage and high current control.
- Durability: Known for its durability and reliability, which is critical in automotive applications that require components to withstand harsh conditions and long-term use.
- Vehicle-specific compatibility: Compatibility with specific vehicle models, such as the Nissan Teana, demonstrates its adaptability to a wide range of automotive platforms.
- Repairability: In some cases, the L9302-AD can be used to repair damaged fuel injection driver chips, providing a cost-effective solution for maintaining vehicle electronics.
- Integrated design: As a compact IC, its space-saving design makes it suitable for surface mount applications.
Caution
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your vehicle electronics system.
- Mounting Instructions:
- Ensure that the chip is mounted in the correct orientation and that the pins are aligned with the circuit board pads.
- During soldering, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
The L9302-AD is a high-performance automotive ignition and injection driver IC manufactured by STMicroelectronics and is widely used in the electronic control units of Nissan and other automotive brands. Its high voltage and current handling capabilities, multi-channel design, and multiple protection features make it an excellent performer in automotive electronic systems.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
