The L9733 parts manufactured by STMicroelectronics are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The L9733 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the L9733 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
- **Features**:
- Octal self-configuring low/high-side drivers
- Outputs 1–8 automatically configurable as high-side or low-side drivers without external input
- Outputs 6, 7, and 8 support PWM control via external pins (IN6–8)
- On-resistance: RON(max) = 0.7 Ω @ Tj=25°C; RON(max) = 1.2 Ω @ Tj=125°C
- Minimum current limit of 1 A per output; overcurrent protection threshold of 0.8–2.4 A
- Minimum output voltage clamp of 50 V in low-side configuration
- Maximum output voltage clamp of -14 V in high-side configuration
- SPI interface for output control and diagnostic data communication
- Independent thermal shutdown protection for each channel
- Diagnostics for open-load, short-to-ground, short-to-battery, and overcurrent (selectable latching or non-latching modes)
- Internal charge pump (no external capacitor required)
- Controlled slew rate (SR) for reduced EMC
- Automotive-grade operating temperature range: -40°C to +125°C
Technical Specifications
- **Driver Type**: Octal configurable low/high-side drivers
- **Supply Voltage Range**: 4.5 V to 5.5 V (VDD logic supply)
- **Battery Supply Voltage (Vbat)**: -0.3 V to 40 V
- **On-resistance (RON)**: 0.7 Ω max. @ Tj=25°C; 1.2 Ω max. @ Tj=125°C
- **Output Current Limit**: 1 A min. (per output)
- **Overcurrent Protection Threshold**: 0.8 A to 2.4 A (selectable via SPI: filtered shutdown or linear current limiting)
- **Low-side Output Voltage Clamp**: 50 V min.
- **High-side Output Voltage Clamp**: -14 V max.
- **Output Slew Rate**: Controlled SR for reduced EMC
- **SPI - **Interface**: 16-bit SPI input controlling 8 outputs; supports daisy-chaining
- **PWM Input**: 3 external PWM inputs (IN6, IN7, IN8)
- **Diagnostic Functions**: Open-load detection, short-to-ground, short-to-battery, overcurrent diagnosis (latching/non-latching modes)
- **Thermal Shutdown**: Independent thermal shutdown protection for each output
- **Charge Pump**: Integrated internally; no external capacitors required
- **Operating Temperature Range**: -40°C to +125°C (TA)
- **Package Type**: PowerSSO-28 (with exposed thermal pad)
- **Mounting Type**: Surface Mount (SMD/SMT)
- **Packaging**: Tube / Tape and Reel
- **RoHS Status**: Lead-free / RoHS compliant
- **Product Lifecycle**: Active (Mass Production)
Notes
- **Compatibility**: Please verify compatibility with your application before purchasing. - Package: PowerSSO-28 (28-pin with exposed thermal pad); verify PCB pad design
- Supply Voltage: VDD 4.5V–5.5V; Vbat up to 40V
- Output Configuration: Outputs 1–8 automatically configured as high-side or low-side; no external setting required
- PWM Control: Outputs 6–8 support external PWM input control
- Current Limit: Minimum 1A per output; overcurrent protection threshold 0.8A–2.4A
- Temperature Range: -40°C to +125°C; ensure compatibility with application ambient temperature
- Suffix Distinction: XP = Automotive grade; CN = Industrial grade; TR = Tape and Reel packaging
- **Installation Instructions**:
- ESD Protection: Chip is ESD-sensitive; wear an anti-static wrist strap before handling
- Soldering Temperature: Reflow peak temperature ≤260°C; compliant with lead-free standards
- Thermal Pad: The PowerSSO-28 exposed pad must be connected to a large copper area or thermal vias to ensure effective heat dissipation
- Decoupling Capacitors: Connect appropriate ceramic decoupling capacitors in parallel to ground for VDD and Vbat pins
- Inductive Loads: Internal Zener clamping provides fast turn-off when driving inductive loads in low-side mode; source voltage drops to VGND-15V during high-side turn-off
- Operate the device within the specified temperature range
- **Fault Diagnosis**:
- Output not working: Check corresponding SPI control bits, output configuration, and load connections
- Frequent overcurrent protection triggering: Check if load current exceeds the threshold or if a short circuit exists
- Chip overheating: Check thermal pad connection, load current, and ambient temperature
- SPI communication failure: Check CS, DI, DO, and SCLK connections; verify timing meets datasheet specifications
- High-side/low-side configuration error: Check load wiring; ensure drain/source pins are connected correctly
- **Alternative Part Reference**:
- L9733XP (Automotive grade, PowerSSO-28, tube packaging)
- L9733XPTR (Automotive grade, PowerSSO-28, tape & reel)
- L9733CN (Industrial grade, PowerSSO-28, tube packaging)
- L9733CNTR (Industrial grade, PowerSSO-28, tape & reel)
- L9734 (Same series, different specifications)
- L9737 (Same series, different specifications)
- L9741 (Same series, different specifications)
- Replacement models should be selected based on the specific application grade (automotive/industrial) and packaging requirements.
- **Technical Support**: If further technical support is required, it is recommended to contact STMicroelectronics or a professional automotive electronics repair service.
Summary

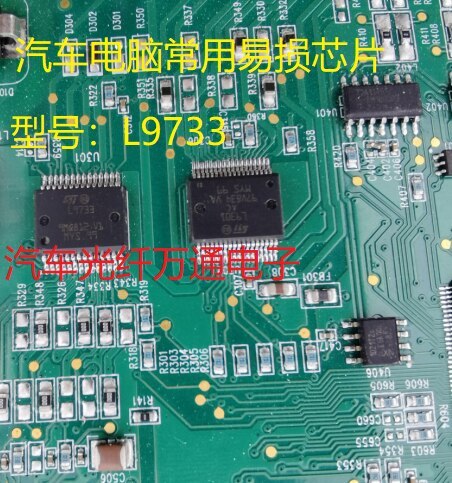

The L9733 is a high-performance, 8-channel configurable low-side/high-side driver manufactured by STMicroelectronics, housed in a PowerSSO-28 package. Its eight outputs can be automatically configured for high-side or low-side driving without external settings; outputs 6 through 8 support external PWM control. Features such as low on-resistance (0.7 Ω @ 25°C), a minimum current limit of 1A per channel, 50V low-side clamping, -14V high-side clamping, and comprehensive diagnostic functions (open-load, short-circuit, over-current) make it an ideal choice for driving relays, solenoids, LEDs/bulbs, and motors in automotive electronic systems. The chip supports 16-bit SPI interface control and daisy-chaining; it integrates an internal charge pump (eliminating the need for external capacitors) and utilizes a controlled slew-rate design to effectively reduce EMC emissions. An automotive-grade operating temperature range (-40°C to +125°C) ensures high reliability. During repair or replacement, key factors such as package compatibility (PowerSSO-28), thermal pad design, VDD/Vbat power supply, SPI communication timing, and load configuration methods must be considered to ensure stable system operation.
