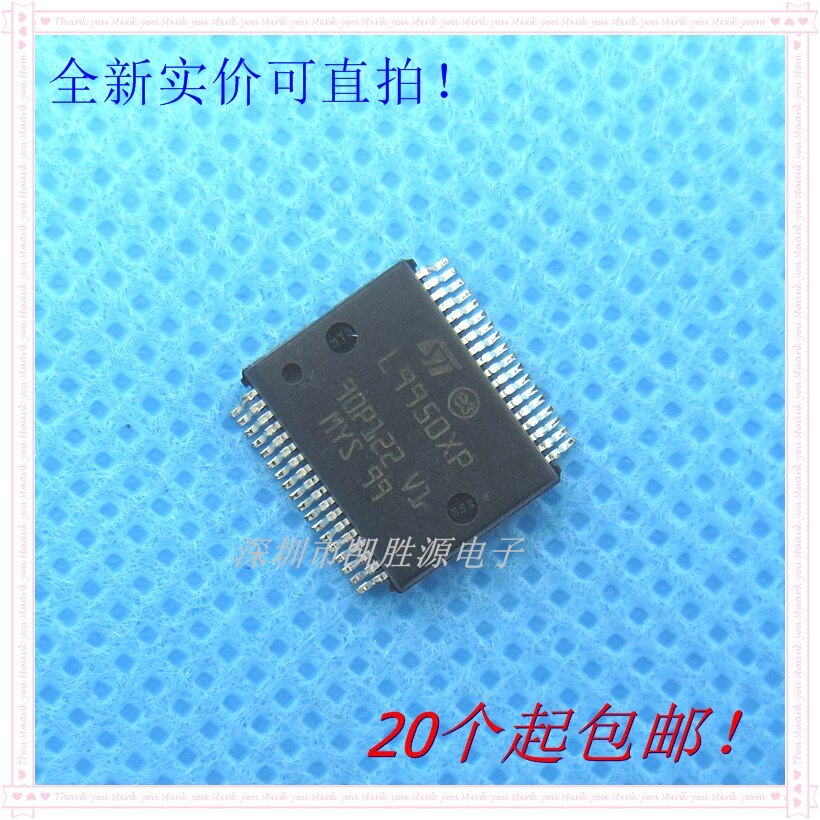

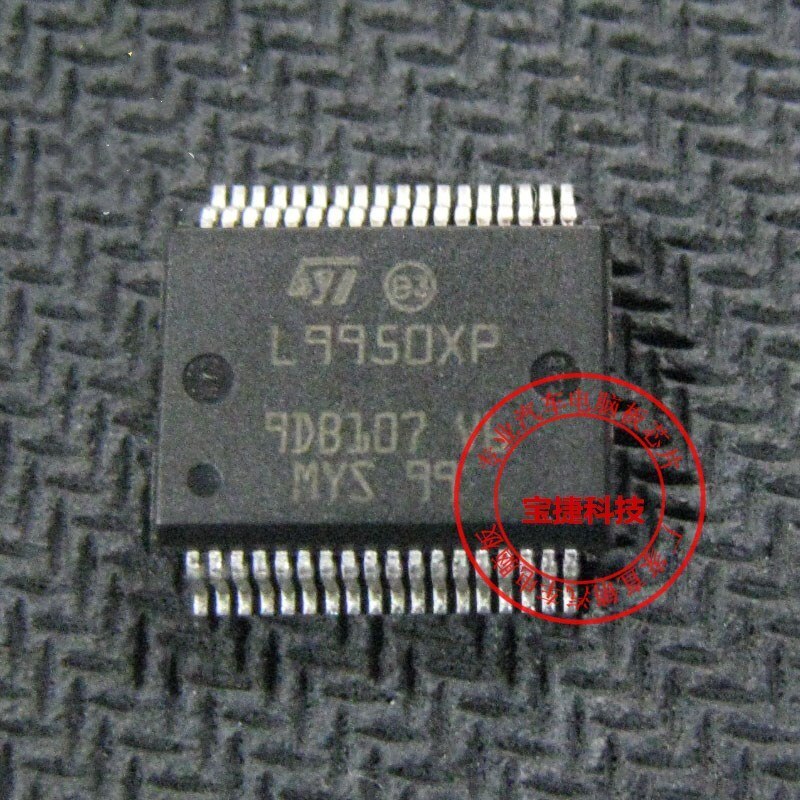

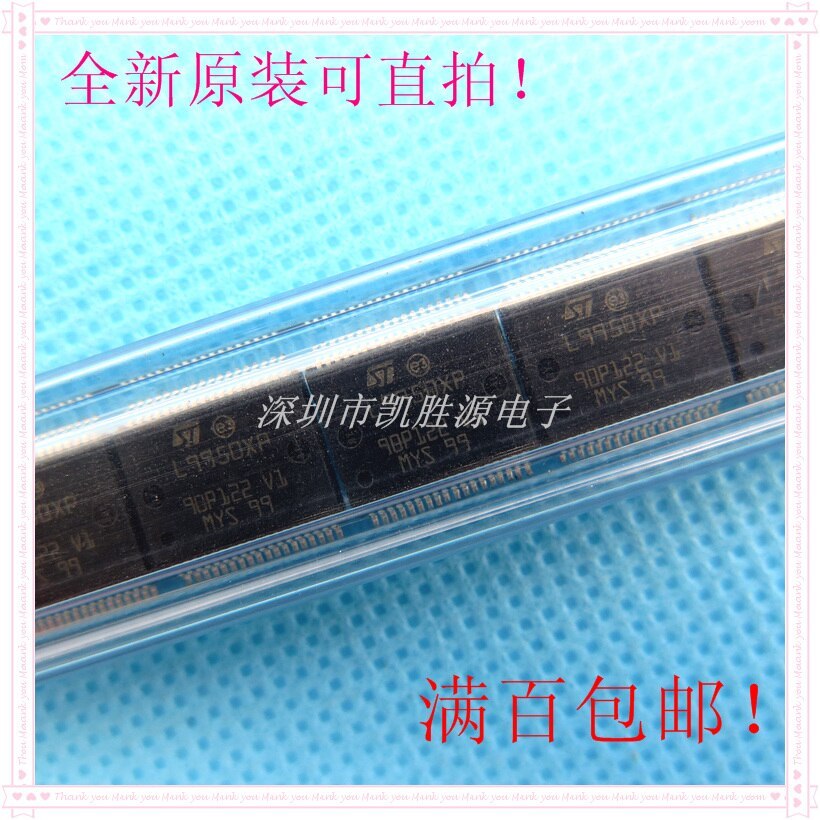

10PCS L9950 L9950XP HSSOP36 Car Power Management Chip Repair VW Magotan Lift

Name: 10PCS L9950 L9950XP HSSOP36 Car Power Management Chip Repair VW Magotan Lift
Brand: https://autoecuchips.com/
SKU: 10P-L9950XP
Price: 17.3 USD
Availability: InStock
Rating: 5.0 (6 reviews)

SKU: 10P-L9950XP

- Model: L9950XP
- Manufacturer: STMicroelectronics (STMicroelectronics)
- Package Type: PowerSSOP-36
- Application Scenario: Mainly used in automotive door modules, such as door locks, window lifters, rearview mirror folding, and so on.
- Compatible models use: Volkswagen Magotan lift window rollers power management chip

5.0 (6 Reviews)

33 Sold

$17.30

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (22)

1/1

Description

The L9950XP is a high performance automotive grade multi-function door actuator driver for a wide range of automotive applications. With low power consumption, high reliability and rich diagnostic functions, it is an ideal automotive electronic control solution. If you need further technical support or purchasing advice, you can contact related us WhatsApp +8618718921345 or check the datasheet.

Technical Specifications
- Functional Description:
- Microcontroller driven multi-function door actuator driver.
- Drives up to five DC motors and five ground resistor loads.
- Integrates six half-bridges and five high-side drivers.
- Integrated standard serial peripheral interface (SPI) to control all operating modes (forward, reverse, brake and high impedance).
- All diagnostic information is available via SPI.
- All diagnostic information is available through the SPI:
- One full bridge: 6A load (Ron=150 mΩ).
- Two half-bridges: 3A load (Ron=300 mΩ).
- Two Half Bridges: 1.5A load (Ron=800 mΩ).
- Two Half Bridges: 1.5A load (Ron=800 mΩ). One High Side Driver: 6A load (Ron=100 mΩ).
- Four high-side drivers: 1.5A load (Ron=800 mΩ).
- Programmable soft-start function: for driving high inrush current loads (e.g. currents >6A, >3A, >1.5A).
- Low power standby mode: IS < 6 μA typical; ICC < 25 μA typical (Tj ≤ 85°C).
- Short-circuit protection for all outputs.
- Current-monitored outputs: for 300 mΩ, 150 mΩ and 100 mΩ high-side drivers.
- Over-temperature protection for all outputs.
- All output open load diagnostics.
- All output open load diagnostics. All output overload diagnostics.
- Separate Half Bridge: for door lock motors.
- Separate half-bridge: for door lock motors.
- Charge pump output for reverse polarity protection.

Application Scenario
- Automobile door module:
- Door lock control.
- Window lift control.
- Rearview mirror control.
- Door folding control.
- Other automotive applications:
- Safety systems (e.g. seat belt pretensioners).
- Interior lighting control
