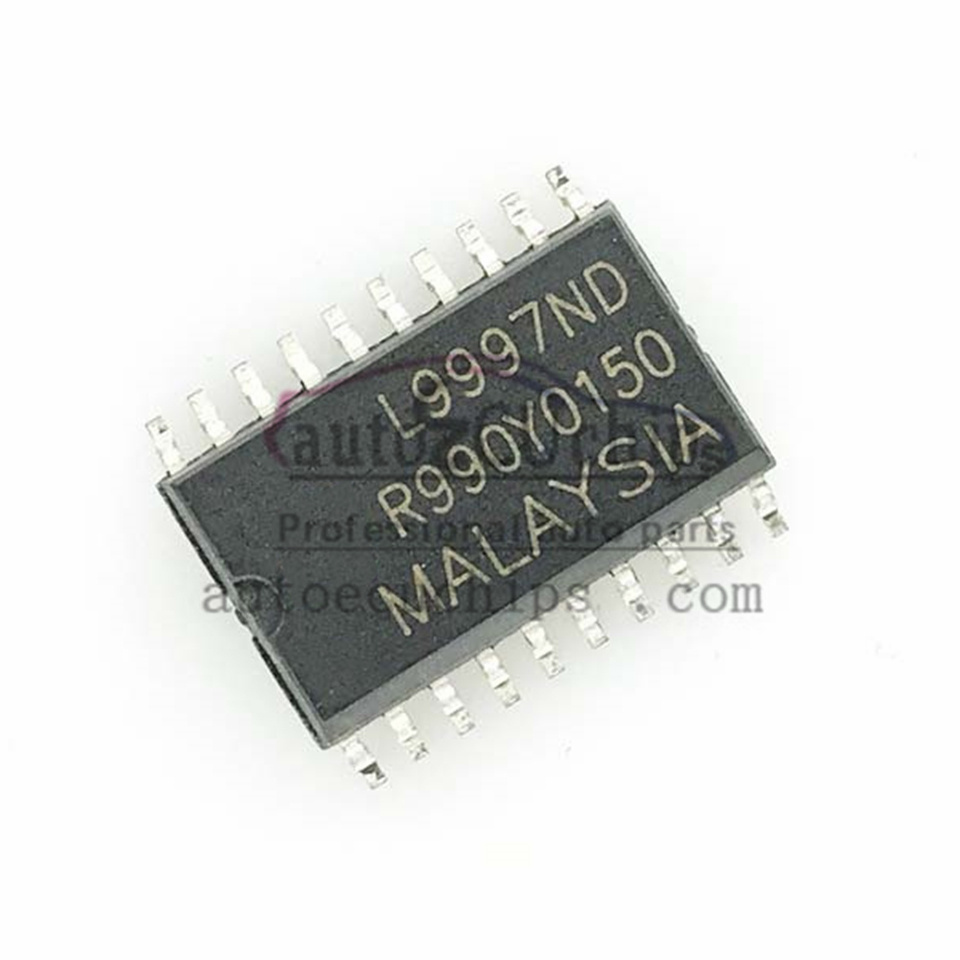

10PCS Original L9997ND L9997D L9997 SOP20 Repair Nissan Sylphy Air Conditioning Panel Vlnerable chip IC Chip
The L9997ND parts manufactured by ST are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The L9997ND components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the L9997ND Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The L9997ND is a dual half-bridge driver chip manufactured by STMicroelectronics for use in automotive electronics systems for driving DC motors and other loads. The following information is about the
- Features:
- Adopt BCD technology, optimized for use in automotive electronics environmental conditions
- Output short circuit protection
- CMOS-compatible hysteresis inputs
- Real-time diagnostics, including thermal overload and overvoltage protection
- Half-bridge output with 0.7Ω typical on-resistance (RON)
- Operating supply voltage range: 7V to 16.5V
- Output current capability: ±1.2A
- Very low quiescent current in standby mode: <1µA
- Thermal shutdown protection
- Maximum withstand voltage: 40V
Technical Specifications
- Operating voltage range: 7V to 16.5V
- Maximum withstand voltage: 40V
- Output current capability: ±1.2A
- Standby quiescent current: <1µA
- Operating temperature range: -40°C to +150°C
- Package type: SO-20
- On-resistance: 0.7Ω (typical)
- Protection features: Output short-circuit protection, thermal shutdown protection, overvoltage protection
Precautions
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your car's electronic system.
- Installation Instructions:
- Make sure the chip is mounted in the correct direction and the pins are aligned with the pads on the board.
- During soldering, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
L9997ND is a high-performance dual half-bridge driver manufactured by STMicroelectronics and widely used in automotive electronic systems. Its low power consumption, high reliability and multiple protection features make it an excellent performer in automotive electronic systems.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
