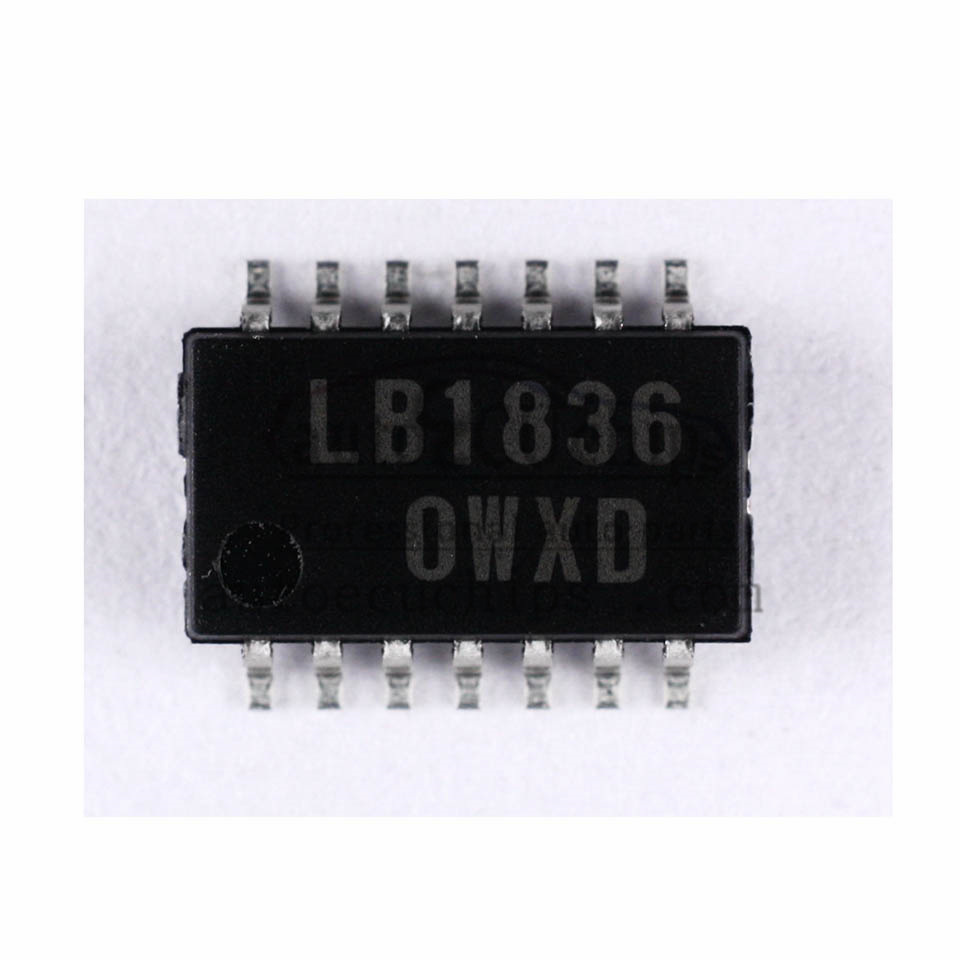

The LB1836ML parts manufactured by ON Semiconductor are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The LB1836ML components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the LB1836ML Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Here are the details about the LB1836ML:
- Features:
- Low voltage operation (minimum 2.5V)
- Low saturation voltage (residual voltage of upper and lower transistors; typical 0.40V at 400mA)
- Residual voltage in parallel connection (residual voltage of upper and lower transistors; typical 0.5V at 800mA)
- Wide operating voltage range (2.5V to 9V)
- Maximum output current: 800mA
- Operating temperature range: -40°C to +105°C
- Half-bridge configuration for DC motors and stepper motors
- Logic interface for easy connection to microcontrollers
Technical Specifications
- Operating voltage range: 2.5V to 9V
- Load voltage range: 1.8V to 9V
- Maximum output current: 800mA
- Low saturation voltage:
- Typical at 400mA 0.40V
- Typical value 0.5V at 800mA
- Operating temperature range: -40°C to +105°C
- Package type: SOP-14
- Output configuration: Half-bridge (4 channels)
- Interface type: Logic interface
Summary The LB1836ML is a low-saturation-voltage dual-channel bidirectional motor driver IC manufactured by ON Semiconductor, suitable for low-voltage applications. Its low saturation voltage, high efficiency, and wide operating voltage range make it excellent for various motor drive applications. If you need to purchase this chip, you can find a suitable supplier through the platforms mentioned above.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
