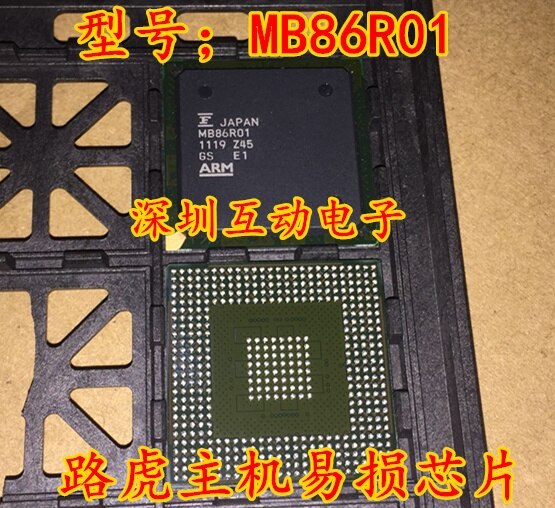

The MB86R01 parts manufactured by TOSHIBA are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The MB86R01 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the MB86R01 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The following provides detailed information regarding the MB86R01 chip:
**Technical Specifications**
- **CPU Core:** ARM926EJ-S 32-bit RISC processor, clocked at 320 MHz
- **Graphics Processor:** Integrated Fujitsu Coral-PA MB86296 2D/3D Graphics Display Controller (GDC)
- Supports dual independent display outputs (Dual Display)
- Supports special effects such as layer overlay, Alpha blending, scaling, and rotation
- **Memory Interfaces:**
- DDR2 SDRAM controller
- NOR Flash / NAND Flash / SRAM interfaces
- Supports external memory expansion
- **Communication Interfaces:**
- CAN Bus (Automotive Networking)
- USB 2.0 Host/Device
- UART (Multiple channels)
- SPI / I2C
- 10/100 Ethernet (Requires external PHY, e.g., DM9000)
- **Video Input:** Supports two camera inputs (CVBS / YCbCr)
- **Operating Voltage:** 1.2V (Core), 3.3V (I/O)
- **Operating Temperature Range:** -40°C to +85°C (Industrial Grade)
- **Manufacturing Process:** 90nm CMOS
**Typical Application Cases**
| Application Field | Specific Product/Case |
|----------------------------|------------------------------------------------------------------------------------|

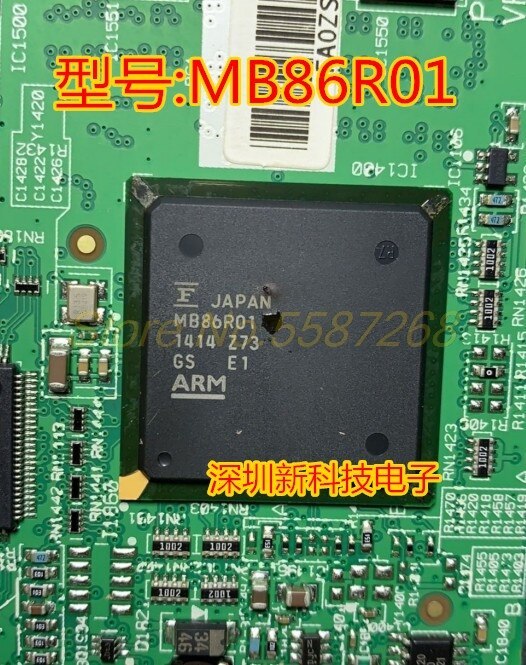

| Automotive Full-Digital Instrument Clusters | 2010 Range Rover (Land Rover) — First Virtual Instrument Cluster (Designed by Visteon) |
| In-Vehicle Infotainment | Supports navigation, multimedia, Bluetooth, reverse camera systems, etc. |
| Construction Machinery Instrumentation | Excavator graphics-based instrument clusters (Based on μC/OS-II RTOS) |
| Industrial Control | Automation equipment HMIs, robot control panels |
| Development Platforms | VxWorks BSP, Embedded Linux (Yocto), ARM embedded development platforms |
**Important Notes**
- **Compatibility:** The MB86R01 is a legacy product. Fujitsu's semiconductor business has been integrated into Renesas; for new projects, it is recommended to evaluate the R-Car series as an alternative solution.
- **Installation Instructions:**
- The BGA-484 package requires professional SMT equipment and X-Ray inspection.
- DDR2 routing requires strict trace length matching; it is recommended to refer to the official reference design. - Dual-display applications require the simultaneous enablement of two display controllers; particular attention should be paid to timing configurations.
- Technical Support: For further technical assistance, it is recommended to contact Renesas or a third-party embedded solutions provider (such as Mercury Instruments or Promwad).
Summary
The MB86R01 is a highly integrated automotive graphics SoC introduced by Fujitsu Semiconductor. Featuring an ARM926EJ-S + Coral-PA GDC architecture, it supports dual independent displays and a comprehensive array of automotive interfaces; from 2009 to 2015, it served as a mainstream solution for mid-to-high-end automotive instrument clusters and In-Vehicle Infotainment (IVI) systems. Its 320 MHz clock speed, 90 nm process technology, and mature software ecosystem (including VxWorks, Linux, and μC/OS-II) endow it with exceptional practicality and reliability within the automotive electronics and industrial control sectors.
