The MC9S12DT256CPVE 0L01Y parts manufactured by NXP are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The MC9S12DT256CPVE 0L01Y components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the MC9S12DT256CPVE 0L01Y Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
- **Features**:
- 16-bit HCS12 CPU core, upward compatible with the M68HC11 instruction set
- 256 KB Flash EEPROM program memory
- 12 KB RAM data memory
- 4 KB EEPROM data memory
- Dual 8-channel 10-bit ADC (Analog-to-Digital Converter)
- Three CAN 2.0 A/B software-compatible modules (MSCAN12)
- 8-channel PWM (Pulse Width Modulator)
- Two asynchronous Serial Communication Interfaces (SCI)
- Three synchronous Serial Peripheral Interfaces (SPI)
- Byte Data Link Controller (BDLC, SAE J1850 compatible)
- I2C bus interface (Inter-IC Bus)
- Enhanced Capture Timer (ECT)
- On-chip PLL (Phase-Locked Loop), supporting 50 MHz equivalent bus speed (25 MHz bus clock)
- Single-wire Background Debug Mode (BDM)
- On-chip hardware breakpoints
- Automotive-grade operating temperature range: -40°C to +85°C or -40°C to +105°C ("E" suffix denotes extended temperature)
Technical Specifications
- **Core Processor**: HCS12 (16-bit CPU)
- **Program Memory (Flash)**: 256 KB
- **Data RAM**: 12 KB
- **Data EEPROM**: 4 KB
- **Max CPU Clock Frequency**: 25 MHz (bus speed), 50 MHz equivalent performance
- **ADC Resolution**: 10-bit
- **ADC Channels**: 16 channels (dual 8-channel ADCs)
- **PWM Channels**: 8 channels (configurable as 8-bit 8-channel or 16-bit 4-channel)
- **CAN Modules**: 3 (CAN 2.0 A/B compatible)
- **SCI Interfaces**: 2
- **SPI Interfaces**: 3
- - **I/O Pin Count**: 91 general-purpose I/Os (including 29 discrete digital I/Os and 20 I/Os with interrupt/wake-up capabilities)
- **Supply Voltage**: 5 V (typical)
- **I/O Voltage**: 5 V input and drive capability
- **Operating Temperature Range**: -40°C to +85°C (standard) / -40°C to +105°C (E-grade extended temperature)
- **Package Type**: LQFP-112 (20 mm × 20 mm, 0.5 mm pin pitch)
- **Mounting Type**: Surface Mount (SMT)
- **RoHS Status**: Lead-free / RoHS compliant
- **Product Lifecycle**: Obsolete (procurement required via existing inventory channels)
Notes
- **Compatibility**: Please verify compatibility with your application before purchasing. - Package/Footprint: LQFP-112 (20 mm × 20 mm, 0.5 mm pitch); verify PCB pad design
- Supply Voltage: 5V; ensure external power supply stability
- Temperature Grade: Suffix "E" indicates extended temperature range (-40°C to +105°C); suffix "C" indicates standard temperature range
- Silkscreen Marking: "0L01Y" is the batch/date code indicating production batch information
- Pin Compatibility: The MC9S12DT256 series is pin-compatible with models such as the MC9S12DG256 and MC9S12DJ256
- External Bus: Supports 8-bit narrow mode; allows connection to a single 8-bit wide memory device to reduce costs
- **Installation Instructions**:
- ESD Protection: The chip is sensitive to electrostatic discharge; wear an anti-static wrist strap before handling
- Soldering Temperature: Reflow soldering peak temperature ≤260°C; compliant with lead-free soldering standards
- Decoupling Capacitors: Connect a 0.1 µF ceramic decoupling capacitor in parallel between VDD/VSS pins and ground
- Crystal Oscillator Connection: Connect a crystal or resonator to EXTAL/XTAL pins according to the recommended circuit in the datasheet
- Reset Circuit: Ensure the RESET pin circuit design meets specification requirements
- BDM Debugging: The single-wire background debug interface supports program downloading and in-circuit debugging
- Operate the device within the specified temperature range
- **Troubleshooting**:
- Chip fails to start: Check supply voltage (5V), reset signal, crystal oscillation, and PLL configuration
- Flash programming failure: Check BDM connection, programming voltage, and Flash write-protection settings
- No I/O response: Check port direction register configuration, pull-up/pull-down resistors, and pin integrity
- Abnormal ADC readings: Check VREFH/VREFL reference voltage connections and analog input signal range
- CAN communication failure: Check CAN transceiver connections, termination resistors, and baud rate configuration
- PWM Output anomalies: Check clock configuration, duty cycle settings, and output pin configuration.
- **Alternative Model References**:
- MC9S12DT256MPVE (Same specifications, different temperature grade)
- MC9S12DG256CPVE (Similar specifications, different peripheral configuration)
- MC9S12DJ256CPVE (Similar specifications, different peripheral configuration)
- MC9S12DP512CPVE (512 KB Flash, higher capacity)
- MC9S12XDT256 (S12X series, enhanced core, higher performance)
- Selection of an alternative model should be based on specific Flash/RAM capacity, peripheral requirements, and package type.
- **Technical Support**: For further technical support, it is recommended to contact NXP Semiconductors or a professional automotive electronics repair service.
Summary

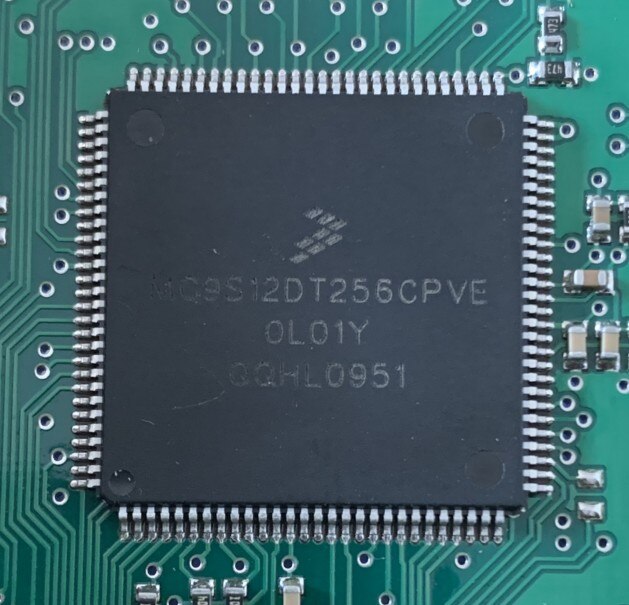

The MC9S12DT256CPVE 0L01Y is a 16-bit automotive-grade microcontroller manufactured by NXP Semiconductors (formerly Freescale), housed in an LQFP-112 package. With features such as 256 KB Flash, 12 KB RAM, 4 KB EEPROM, dual 10-bit ADCs, three-channel CAN, 8-channel PWM, and extensive serial interfaces (SCI/SPI/I2C), it serves as a core control component in automotive electronic systems (ECU, BCM, airbag, ABS, etc.). This chip is discontinued; procurement for repair or replacement must be made through existing inventory channels. When replacing the chip, key design factors—such as package compatibility (LQFP-112), power supply design (5V), temperature grade (E for extended temperature), crystal oscillator/PLL configuration, and the BDM debug interface—must be considered to ensure stable system operation. The "0L01Y" marking indicates the production batch code and does not affect the chip's functionality or parameters.
