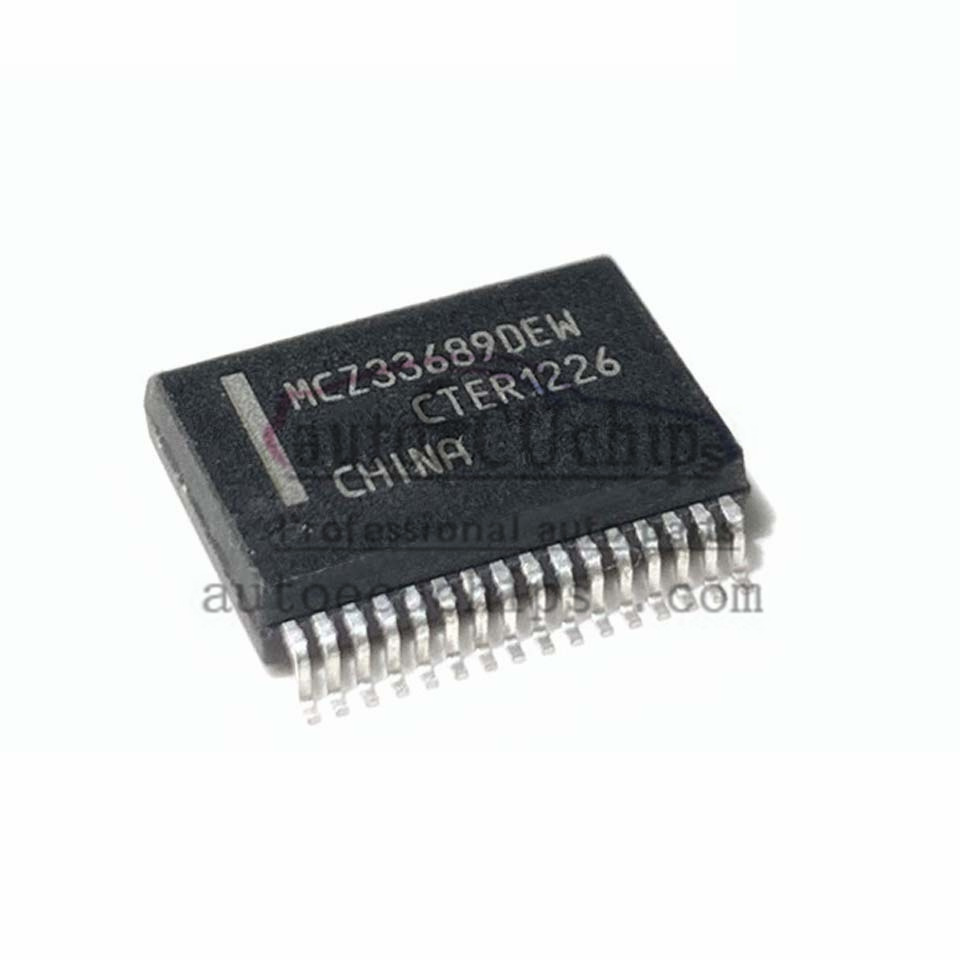

5pcs New MCZ33689DEW SSOP32 Repair IC VW Touareg Audi A8 Direction Unlock Original Chipnet Chip
The MCZ33689DEW parts are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The MCZ33689DEW components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the MCZ33689DEW Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us
Technical Specifications
- Core Functions: SPI-controlled System Basis Chip, integrating a variety of common functions and LIN transceiver.
- Operating voltage range: 5.0V
- Operating temperature range: -40°C to +125°C
- Package Type: 32-pin SSOP (Shrink Small Outline Package)
- Features:
- Full-duplex SPI interface supporting frequencies up to 4.0 MHz
- LIN transceiver supporting data rates up to 100 kbps with waveform shaping
- 5.0V low dropout regulator with full fault detection and protection
- One 50mA and two 150mA high-side switches with output protection, 150mA switch supports PWM
- Two high voltage inputs for contact monitoring or external wake-up inputs
- Current-sense op-amps for load current monitoring
- Three operating modes: Normal mode (all functions available), Sleep mode (VDD off, wake-up via LIN bus or wake-up input), Stop mode (VDD on, wake-up via MCU, LIN bus or wake-up input)
Precautions
- Operating Temperature Range: Ensure operation within a temperature range of -40°C to +125°C for automotive grade applications.
- STORAGE CONDITIONS: Storage in a dry, antistatic environment is recommended to avoid damage.
- Compatibility: Before use, make sure the chip is compatible with the hardware and software of the target application.
- Protections: Ensure that the circuitry contains appropriate protections, such as fuses and overcurrent protection, to prevent damage.
Summary
The MCZ33689DEW is a high-performance system-on-chip for a wide range of automotive electronic systems. It integrates a variety of features such as a LIN transceiver, low dropout regulator, and high-side switch for applications such as window control, mirror control, and seat control. If you require further technical support or datasheets, please visit the links above or contact the supplier for details.
