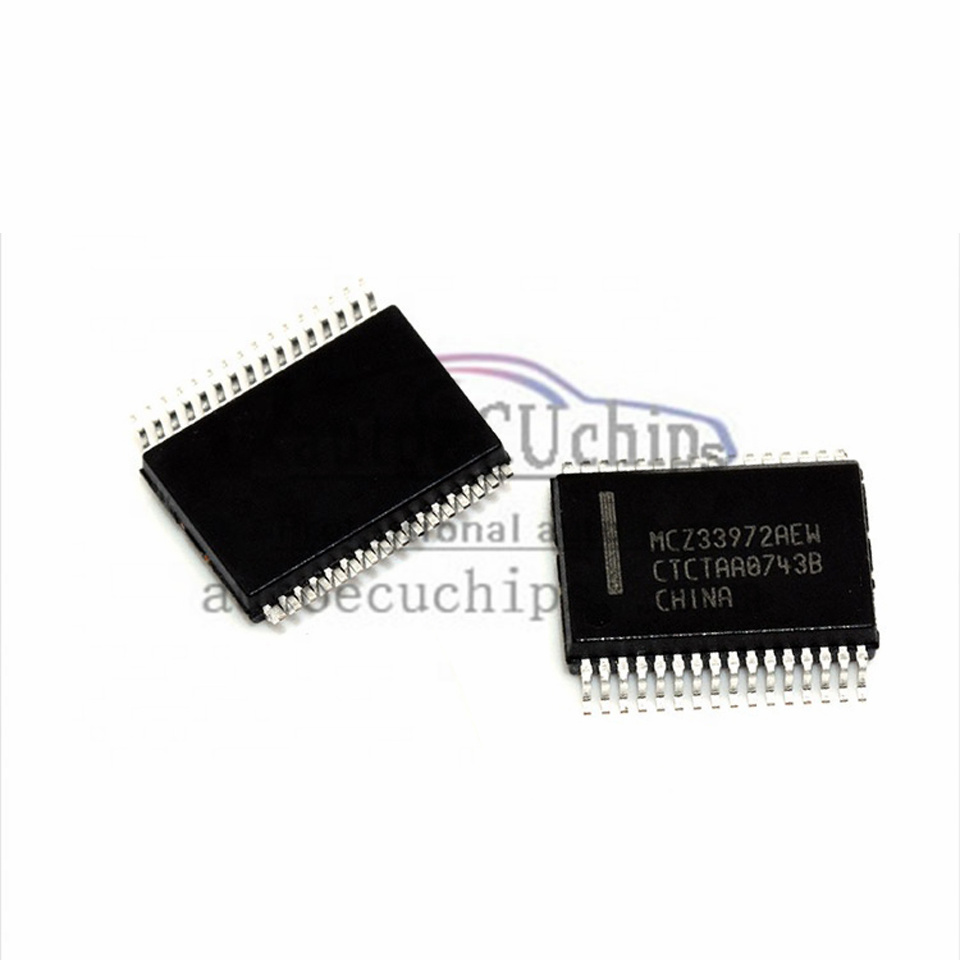

10Pcs MCZ33972AEW MCZ33972EW MCZ33972ATEW Cruze BCM Car Turn signal Chip Freescale Original IC VW Repair Driver
The MCZ33972AEW parts manufactured by Freescale are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The MCZ33972AEW components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the MCZ33972AEW Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The MCZ33972ATEW is a multifunctional switch detection interface chip from NXP Semiconductors for a wide range of switch detection applications in automotive electronic systems. More information about the MCZ33972ATEW is provided below:
Features
- Switch Detection Capability: Supports up to 22 switch detection channels, capable of detecting the closed and disconnected states of switches.
- Multiple operating voltage ranges:
- Main supply voltage (VpWR): 5.5 V to 26 V
- Mains voltage (VpWR(FO)) in quasi-functional mode: 8.0 V to 38/40 V
- Low-power mode: with sleep mode to reduce power consumption.
- Multiple Protection Functions: Includes over-voltage, under-voltage, short-circuit, and thermal protection.
- Programmability: Flexible configuration and control via SPI (Serial Peripheral Interface).
- Analog Multiplexer: Built-in 22 selectable analog multiplexer for analog signal acquisition and processing.
- Wet Current Timer: Each switch input has a 20 ms timer to control the initial wet current of the switch.
- Flexible digital interface: Supports multiple digital communication modes and command configurations.
Technical Parameters
- Operating voltage range: 5.5 V to 40 V
- Operating temperature range: -40°C to +125°C (automotive grade)
- Package type: 32-SOIC
- Number of switch detection channels: 22
- Wet current timer: 20 ms
- Analog multiplexer: 22 select 1
- Digital interface: SPI (Serial Peripheral Interface)
Precautions
- COMPATIBILITY: Before purchasing, please verify that the chip is compatible with your application and ensure that the voltage, current and other requirements of the circuit are met.
- Installation Instructions:
- Ensure that the heat dissipation design of the board is reasonable to meet the heat dissipation requirements of the chip during high power operation.
- During installation, pay attention to the correct insertion and soldering of pins to avoid false soldering and short circuit.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
MCZ33972ATEW is a high performance switching detection interface chip manufactured by NXP Semiconductors and widely used in automotive electronic systems. Its high channel count, low power consumption, multiple protection functions and flexible configuration capability make it an excellent performer in automotive electronic control units.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
