The MP9486AGN-Z parts manufactured by MPS are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The MP9486AGN-Z components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the MP9486AGN-Z Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
- **Features**:
- Ultra-wide input voltage range: 100V (4.5V–100V)
- Integrated high-side power MOSFET; peak switch current limit: 3.5A (typical)
- Hysteretic voltage-mode control; ultra-fast response; no external compensation required
- Switching frequency up to 1MHz; enables use of small external components
- PWM dimming control input available for LED applications
- Integrated Short-Circuit Protection (SCP)
- Low quiescent current: 170 µA
- Over-Temperature Protection (OTP)
- Automotive-grade operating temperature range: -40°C to +125°C
Technical Specifications
- **Input Voltage Range**: 4.5 V to 100 V (Recommended operating conditions: 4.5V–95V)
- **Output Voltage**: Fixed 5V (MP9486AGN-Z fixed output version) / Adjustable (MP9486A adjustable version)
- **Output Current**: 1 A (continuous output)
- **Peak Switch Current Limit**: 3.5 A (typical)
- **Switching Frequency**: Up to 1 MHz
- **Quiescent Current**: 170 µA
- **Control Topology**: Buck (step-down), hysteretic voltage-mode control
- **Synchronous Rectifier**: None (non-synchronous rectification)
- **Output Type**: Fixed (MP9486AGN-Z) / Adjustable
- **Number of Output Channels**: 1
- **Operating Temperature Range**: -40°C to +125°C (TJ)

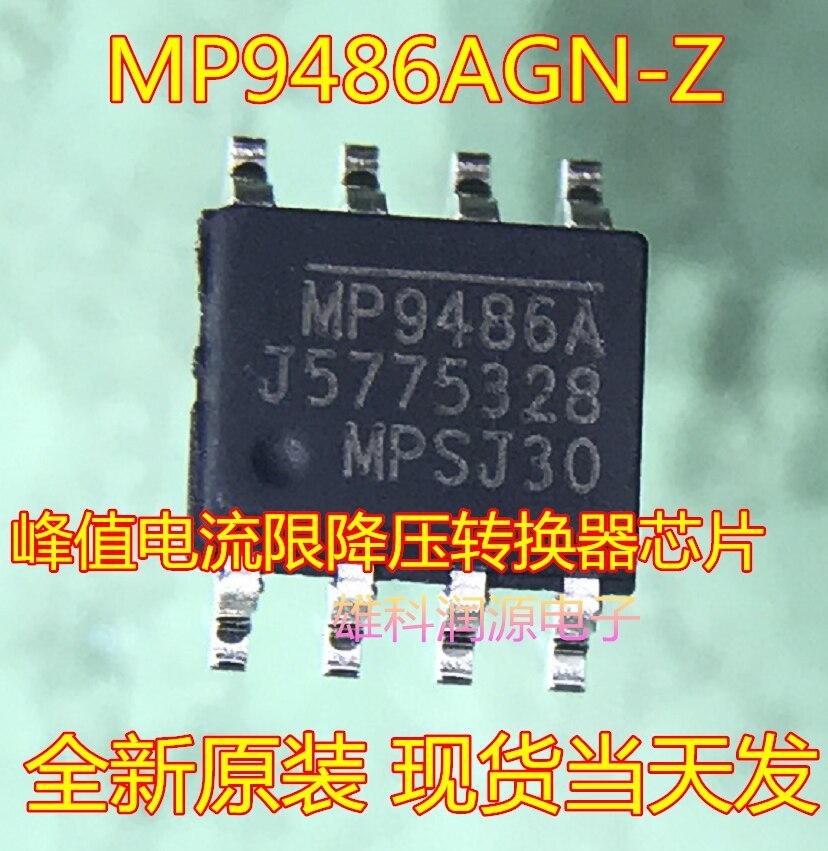

- **Package Type**: SOIC-8 EP (8-SOIC, 0.154" / 3.90 mm wide, with exposed pad)
- **Mounting Style**: Surface Mount (SMD/SMT)
- **Packaging**: Tape & Reel (2,500 units/reel, -Z suffix)
- **RoHS Status**: Lead-free / RoHS compliant
- **Product Lifecycle**: Active (In mass production)
**Important Notes**
- **Compatibility**: Please verify compatibility with your application before purchase.
- Package Match: SOIC-8 EP (with exposed thermal pad); ensure the PCB footprint includes a connection for the thermal pad.
- Input Voltage: Ensure the supply voltage is within the 4.5V–100V range (recommended max: 95V).
- Output Voltage: The MP9486AGN-Z is a fixed 5V output version; select other MP9486A models if an adjustable output is required.
- Power Dissipation: Maximum allowable power dissipation is 3.6W (TA=25°C); design thermal management based on actual power dissipation.
- Thermal Resistance: θJA=34°C/W (EV9486-N-00A evaluation board, 2-layer); θJA=50°C/W (JESD51-7 4-layer board).
- Moisture Sensitivity: Yes (observe MSL moisture protection requirements).
- **Installation Instructions**:
- ESD Protection: The chip is ESD-sensitive; wear an anti-static wrist strap before handling.
- Soldering Temperature: Reflow peak temperature ≤260°C; soldering duration must comply with lead-free standards.
- Thermal Pad: The SOIC-8 EP exposed pad must be connected to a large copper area or thermal vias to ensure effective heat dissipation.
- Decoupling Capacitor: Connect an appropriate ceramic decoupling capacitor (e.g., 10µF or larger) in parallel between the VIN pin and ground.
- BST Capacitor: Connect a bootstrap capacitor (e.g., 0.1µF) between the BST and SW pins.
- Freewheeling Diode: Asynchronous rectification architecture; an external Schottky freewheeling diode is required at the SW pin.
- Inductor Selection: Select a suitable power inductor (e.g., 33µH) based on output current and switching frequency.
- Operate the device within the specified temperature range.
- **Troubleshooting**:
- No Output: Check if the input voltage is within the 4.5V–100V range; check the EN pin. ...check if the enable pin is active and if the FB pin feedback network is functioning correctly.
- Abnormal output voltage: Check the feedback resistor network (for adjustable versions) or verify the correct part number for fixed-output versions.
- Chip overheating: Check the thermal pad connection, verify if the load current exceeds 1A, and ensure the switching frequency setting is appropriate.
- Abnormal switching frequency: Check the inductance value and load conditions; note that in hysteretic control mode, the frequency varies with the load.
- PWM dimming failure: Check the DIM pin signal and duty cycle range.
- Frequent short-circuit protection triggering: Check for output short circuits and verify if the load current exceeds the 3.5A peak limit.
- **Alternative Part References**:
- MP9486AGN (Same model, without the "-Z" tape-and-reel suffix)
- MP9486GN (95V input version, similar specifications)
- MP9485 (Similar series, different current capability)
- MP9487 (Similar series, different specifications)
- MP9488 (Similar series, step-down regulator)
- Select the alternative model based on specific input voltage, output current, and package requirements.
- **Technical Support**: For further technical support, please contact Monolithic Power Systems (MPS) or a professional electronic component distributor.
Summary
The MP9486AGN-Z is a high-performance 100V-input step-down (buck) switching regulator manufactured by Monolithic Power Systems (MPS), housed in an SOIC-8 EP package. Its ultra-wide input voltage range (4.5V–100V), integrated high-side MOSFET with a 3.5A peak current limit, hysteretic voltage-mode control (requiring no external compensation), switching frequency up to 1MHz, and low quiescent current of 170µA make it an ideal choice for high-voltage step-down applications such as automotive electronics, industrial power supplies, solar systems, LED drivers, and e-bike controllers. The chip supports PWM dimming (for LED applications) and features built-in short-circuit and over-temperature protection; its automotive-grade operating temperature range (-40°C to +125°C) ensures high reliability. During repair or replacement, ensure the package type matches (SOIC-8 EP). ...thermal pad design), input voltage range, output current limits, and thermal conditions to ensure stable system operation.
