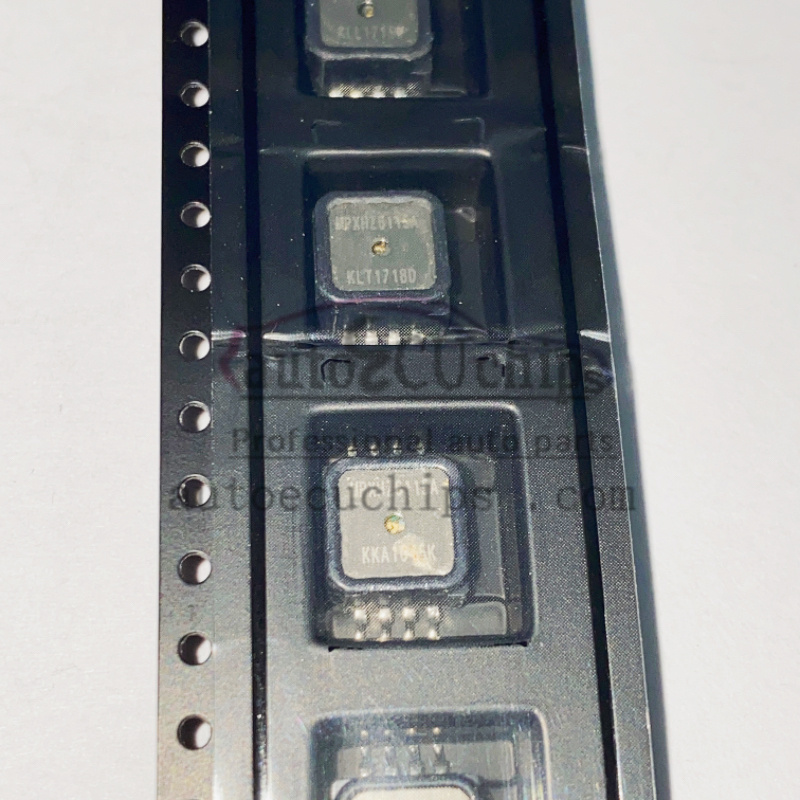

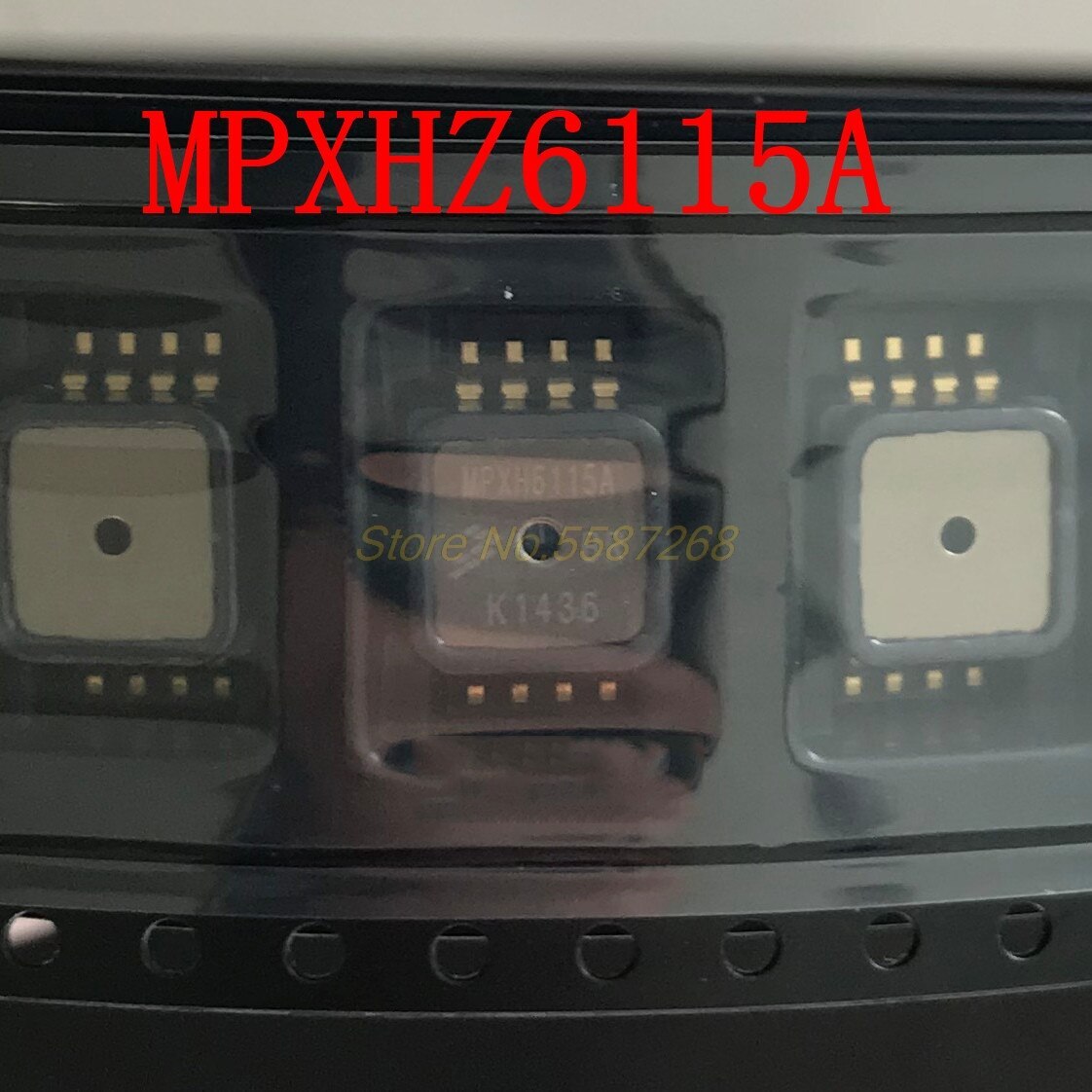

NEW Original 5pcs MPXHZ6115A MPXH6115A MPXHZ6115 MPXH6115 SOP8 IC Pressure Sensor Repair Chip
The MPXHZ6115A parts manufactured by NXP are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The MPXHZ6115A components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the MPXHZ6115A Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are details of MPXHZ6115A SOP8:
- Features:
- Integrated on-chip operational amplifier and thin-film resistor network for high output signal and temperature compensation
- Resistant to high humidity and common automotive media
- High accuracy at high temperatures
- Operating temperature range: -40°C to +125°C
- Maximum error: ±1.5% full-scale output over temperature range of 0°C to 85°C
- Temperature compensated: from -40°C to +125°C
- Suitable for microprocessor or microcontroller systems
Technical Data
- Pressure range: 15 to 115 kPa
- Operating voltage: 4.75 to 5.25 Vdc
- Operating current: 6.0 to 10 mA
- Minimum pressure offset: 0.133 to 0.268 Vdc over 0°C to 85°C temperature range
- Full-scale output: 4.633 to 4.768 Vdc over 0°C to 85°C temperature range
- Full-scale span: 4.433 to 4.568 Vdc over 0°C to 85°C temperature range
- Accuracy: ±1.5% full-scale output over 0°C to 85°C temperature range
- Sensitivity: 45.0 mV/kPa
- Response time: 1.0 ms
- Operating temperature range: -40°C to +125°C
Pin Function
Pin Name Function
1 DNC is not connected to an external circuit or ground. Pin 1 is identified by a chamfered corner.
2 Vs Supply voltage
3 GND Ground
4 Vour Output voltage
5 DNC is not connected to an external circuit or ground.
6 DNC is not connected to an external circuit or ground.
7 DNC is not connected to an external circuit or ground.
8 DNC is not connected to an external circuit or ground.
Applicable Vehicle Models and Devices
- Automotive applications: Suitable for engine control units (ECUs) of various automobile brands, such as BMW, Mercedes-Benz, Volkswagen, etc.
- Industrial equipment: industrial control equipment, weather stations, etc.
- Aviation equipment: aviation altimeter
Cautions
- Compatibility: Before purchasing, please make sure the chip is compatible with your application.
- Installation Note: Make sure the supply voltage meets the chip specifications and use appropriate decoupling capacitors to minimize noise.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
The MPXHZ6115A SOP8 is a high-performance integrated silicon pressure sensor from NXP Semiconductors for a wide range of automotive, industrial, and aerospace applications. Its high accuracy and reliability make it excellent for measuring absolute pressure.
