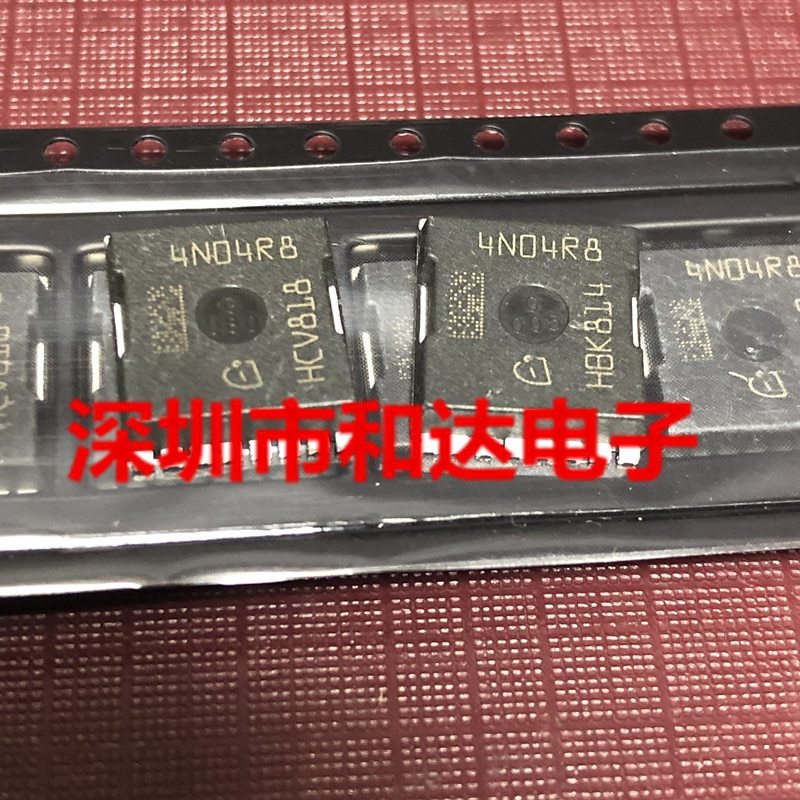

10Pcs IPLU300N04S4-R8 4N04R8 MOSFET N-CH 40V 300A 8HSOF Original Chipnet Repair IC
The IPLU300N04S4-R8 parts are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The IPLU300N04S4-R8 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the IPLU300N04S4-R8 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us
Technical Specifications
- Drain-source voltage (Vdss): 40V
- Continuous drain current (Id): 300A
- Maximum pulse drain current (Id,pulse): 1200A
- On-resistance (RDS(on)): 0.77mΩ (at VGS=10V, Id=300A)
- Threshold voltage (Vgs(th)): 2.0V to 4.0V
- GATE CHARGE (Qg): 287nC (at VGS=10V)
- Input capacitance (Ciss): 22.945nF (at VDS=40V)
- Reverse Transfer Capacitance (Crss): 300pF (at VDS=40V)
- Operating temperature range: -55°C to +175°C
- Package Type: H-PSOF-8-1
- Features:
- High reliability to automotive grade standards
- Low on-resistance for high-current applications
- Multiple protection functions, such as overvoltage protection, short-circuit protection, etc.
- Built-in voltage regulator to handle automotive design issues such as dual batteries, starting voltages and load dips
- RoHS compliant (lead-free)
Cautions
- OPERATING TEMPERATURE RANGE: Ensure operation within a temperature range of -55°C to +175°C for automotive grade applications.
- Storage Conditions: Storage in a dry, anti-static environment is recommended to avoid damage.
- Compatibility: Before use, make sure the chip is compatible with the hardware and software of the target application.
- Protections: Ensure that the circuitry contains appropriate protections, such as fuses and overcurrent protection, to prevent damage.
Summary
The IPLU300N04S4-R8 is a high-performance N-channel enhancement MOSFET for a wide range of automotive electronic systems and industrial control applications. If you require further technical support or a datasheet, please visit the link above or contact the supplier for details.
