The SAK-TC1766-192F80HL parts manufactured by Infineon are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The SAK-TC1766-192F80HL components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the SAK-TC1766-192F80HL Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
- **Features**:
- TriCore™ 1.3M 32-bit RISC architecture CPU, Harvard architecture, single-cycle execution
- 1.5 MB embedded program Flash with ECC
- 32 KB data Flash for scalable EEPROM emulation
- 76 KB on-chip SRAM + 8 KB instruction cache + 8 KB Overlay RAM (OVRAM); total SRAM (including cache): 108 KB
- 16 KB Boot ROM (BROM)
- 80 MHz maximum CPU clock frequency
- Floating Point Unit (FPU)
- 2 CAN nodes (MultiCAN, 64 buffers)
- 36 A/D input lines (including 2-channel fast ADC + 32-channel standard ADC)
- 8-channel DMA controller
- Programmable Interrupt Controller (PIC)
- General Purpose Timer Array (GPTA)
- Micro Second Link Interface (MLI)
- Micro Second Channel (MSC)
- Synchronous Serial Channel (SSC)
- Asynchronous/Synchronous Serial Channel (ASC)
- On-chip PLL clock generation
- On-chip voltage regulator
- Memory Checker Unit
- On-Chip Debug Support (OCDS) / JTAG interface
- Automotive-grade operating temperature range: -40°C to +125°C
Technical Specifications
- **Core Processor**: TriCore™ 1.3M (32-bit RISC, Harvard architecture)
- **Program Memory (Flash)**: 1.5 MB (with ECC)
- **Data Flash**: 32 KB (for EEPROM emulation)
- **Data RAM**: 76 KB SRAM + 8 KB instruction cache + 8 KB OVRAM; total 108 KB (including cache)
- **Boot ROM**: 16 KB
- **Max CPU Clock Frequency**: 80 MHz
- **ADC Resolution**: 8-bit / 10-bit / 12-bit (2-channel fast ADC + standard ADC) 32 channels)
- **ADC Channels**: 36 (including FADC)
- **CAN Nodes**: 2 (MultiCAN, 64 buffers)
- **DMA Channels**: 8
- **Serial Interfaces**: 2×ASC, 2×SSC, 1×MSC, 2×MLI
- **Timers**: GPTA (General Purpose Timer Array)
- **Floating-Point Unit**: Yes (FPU)
- **I/O Pins**: 81 general-purpose I/O
- **Supply Voltage**: 1.42 V – 1.58 V (core voltage), 3.3 V I/O
- **Data Bus Width**: 32-bit
- **Operating Temperature Range**: -40°C to +125°C (TA)
- **Package Type**: PG-LQFP-176 (24 mm × 24 mm × 1.4 mm, 0.5 mm pin pitch)
- **Mounting Type**: Surface Mount (SMD/SMT)
- **Packaging**: Tape & Reel (500 units/reel)
- **RoHS Status**: Lead-free / RoHS compliant, halogen-free
- **Product Lifecycle**: Mass production (Active and Preferred)
Notes
- **Compatibility**: Please verify compatibility with your application before purchasing. - Package/Footprint: PG-LQFP-176 (24 mm × 24 mm, 0.5 mm pitch); verify PCB pad design
- Supply Voltage: Core 1.42V–1.58V, I/O 3.3V; ensure stable external power supply
- Temperature Rating: -40°C to +125°C; ensure compatibility with the application environment
- Marking/Suffix: Suffix "HL" indicates temperature range and package type; "BD"/"BB" denote different stepping versions
- Pin Compatibility: TC1766 series is pin-compatible with models such as TC1764 and TC1762
- Development Tools: Supports DAvE (Digital Application Virtual Engineer) development tools
- **Installation Instructions**:
- ESD Protection: Chip is sensitive to electrostatic discharge; wear an anti-static wrist strap before handling
- Soldering Temperature: Reflow peak temperature ≤260°C; compliant with lead-free soldering standards
- Decoupling Capacitors: Connect appropriate ceramic decoupling capacitors in parallel between VDD/VSS pins and ground
- Crystal Oscillator Connection: Connect external crystal or resonator according to the recommended circuit in the datasheet
- Thermal Design: Ensure sufficient PCB copper area; add thermal vias if necessary
- Operate the device within the specified temperature range
- **Troubleshooting**:
- Chip fails to start: Check supply voltages (1.42V–1.58V core, 3.3V I/O), reset signal, crystal oscillation, and PLL configuration
- Flash programming failure: Check JTAG/OCDS connection, programming voltage, and Flash write-protection settings
- No I/O response: Check port direction register configuration, pull-up/pull-down resistors, and pin integrity
- Abnormal ADC readings: Check reference voltage connection and analog input signal range
- CAN communication failure: Check CAN transceiver connection, termination resistors, and baud rate configuration
- Abnormal DMA transfer: Check DMA channel configuration, source/destination addresses, and transfer length
- **Alternative Model Reference**:
- - SAK-TC1766-192F80HL BD (different stepping version)
- SAK-TC1766-192F80HL BB (different stepping version)
- SAK-TC1764-128F80HL (128 KB Flash, lower capacity version)
- SAK-TC1767-256F133HL (256 KB Flash, 133 MHz, higher performance version)
- SAK-TC1762-128F80HL (128 KB Flash, lower capacity version)
- Replacement models should be selected based on specific Flash/RAM capacity, clock frequency, and package requirements.
- **Technical Support**: If further technical support is required, it is recommended to contact Infineon Technologies or a professional automotive electronics repair service.
Summary

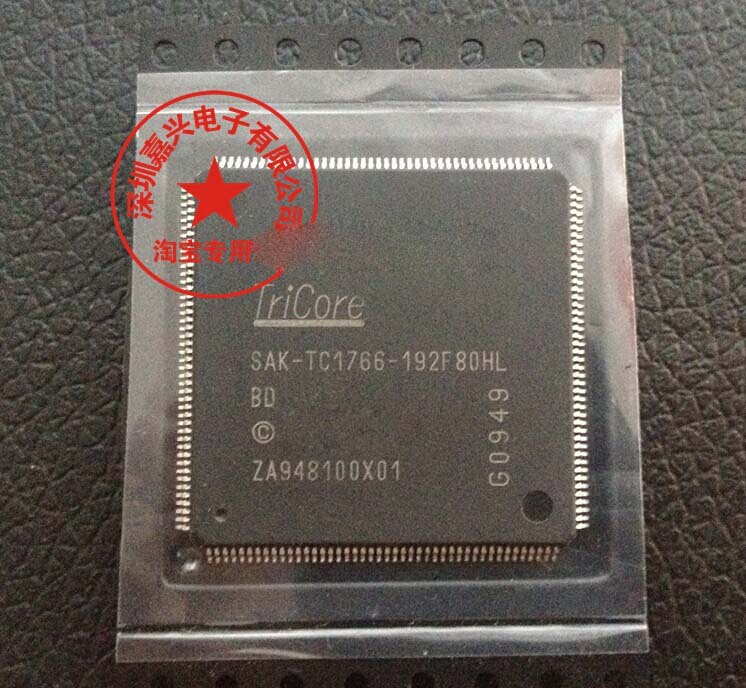

The SAK-TC1766-192F80HL is a high-performance, 32-bit, automotive-grade microcontroller manufactured by Infineon Technologies, housed in a PG-LQFP-176 package. Its TriCore™ 1.3M architecture, 1.5 MB Flash, 108 KB SRAM (including cache), 80 MHz operating frequency, Floating Point Unit (FPU), dual CAN nodes, 36 ADC inputs, and extensive serial interfaces (ASC/SSC/MSC/MLI) make it an ideal choice for high-performance embedded applications such as automotive engine control, transmission control, drive-by-wire systems, and industrial robot control. The chip supports on-chip debugging (OCDS/JTAG) and DAvE development tools, facilitating development and maintenance. Its automotive-grade operating temperature range (-40°C to +125°C) ensures high reliability. During repair or replacement, key factors such as package compatibility (PG-LQFP-176), core supply voltage (1.42V–1.58V), I/O voltage (3.3V), crystal/PLL configuration, and thermal design must be considered to ensure stable system operation.
