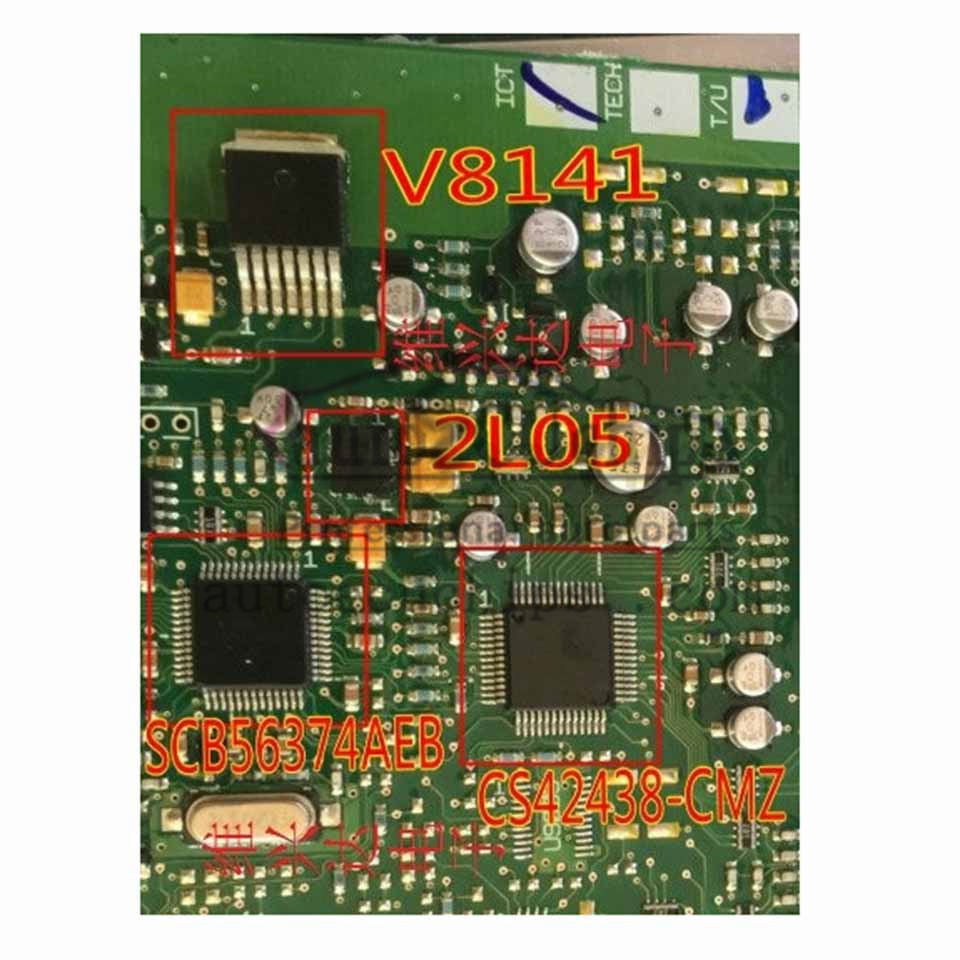

4-piece Set Repair KIT GM Cadillac Buick GL8 Renault Maserati Mazda Bose Amplifier Vulnerable Chip SCB56374AEB NCV8141 2L05 CS42438-CMZ
The SCB56374AEB NCV8141 2L05 CS42438-CMZ parts are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The SCB56374AEB NCV8141 2L05 CS42438-CMZ components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the SCB56374AEB NCV8141 2L05 CS42438-CMZ Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about SCB56374AEB, NCV8141 and CS42438-CMZ, including technical parameters, application scenarios, applicable models and purchasing information:
1. SCB56374AEB
- Chip Overview:
- Model No.: SCB56374AEB
- Package Type: QFP52
- Manufacturer: NXP Semiconductors (formerly Freescale Semiconductor)
- Application Scenario: Mainly used for automotive audio amplifier DSP processor, widely used in car audio system.
- Features: High-performance 32-bit digital signal processor (DSP) for automotive-grade applications, industrial-grade temperature range: -40°C to +105°C, built-in interfaces for multiple peripherals.
- Technical parameters:
- Core: 32-bit high-performance DSP
- Operating voltage: Typically 3.3V to 5V
- Operating temperature range: -40°C to +105°C (automotive grade)
- Package type: QFP52
- Peripheral interfaces: Multiple CAN, LIN, SPI, I²C communication interfaces, multiple ADCs and DACs, multiple timer and capture/compare channels
- Memory: Built-in flash memory and RAM, support for external memory expansion
- Applicable models: Renault (Renault), Buick (Buick), Cadillac (Cadillac), Mazda (Mazda) and other brands of audio systems.
2. NCV8141
- Chip Overview:
- Model Number: NCV8141
- Package Type: TO-220
- Manufacturer: ON Semiconductor
- Application Scenario: Mainly used for power management in automotive electronic systems, such as audio amplifiers, power supply drivers, etc..
- Characteristics: High current carrying capacity, low saturation voltage, applicable to a variety of automotive brands and models.
- Technical parameters:
- Maximum voltage: 40V
- Maximum current: 5A
- Operating temperature range: -40°C to +125°C
- Package Type: TO-220
- Applicable models: General Motors (General Motors), Chevrolet (Chevrolet), Cadillac (Cadillac), Buick (Buick) and other brands of audio systems and electronic control units.
3. CS42438-CMZ
- Chip Overview:
- Model No.: CS42438-CMZ
- Package Type: MQFP-52
- Manufacturer: Cirrus Logic
- Application Scenario: Mainly used for audio codecs (CODEC) in car audio systems, providing high-fidelity audio processing.
- Features: 108 dB signal-to-noise ratio, 192 kHz sampling rate, 6-input, 8-output TDM architecture, suitable for high-end audio systems in a variety of automotive brands.
- Technical parameters:
- Technical parameters: Signal-to-noise ratio: 108 dB
- Sampling rate: 192 kHz
- Input and output channels: 6 inputs and 8 outputs
- Operating voltage: typically 3.3V to 5V
- Operating temperature range: -40°C to +85°C (automotive grade)
- Package type: MQFP-52
- Applicable models: General Motors, Chevrolet, Cadillac, Buick and other brands of high-end audio systems.
Cautions
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your specific application and car model.
- Installation Instructions:
- Make sure the supply voltage meets the chip specifications.
- Use appropriate decoupling capacitors to minimize noise.
- Operate the device within the specified temperature range.
- Technical Support: If further technical support is required, it is recommended that the supplier or manufacturer be contacted.
Summary
The SCB56374AEB, NCV8141, and CS42438-CMZ are high-performance chips commonly used in car audio systems for audio signal processing, power management, and audio codecs, respectively. They are widely used in high-end audio systems of various automobile brands.
