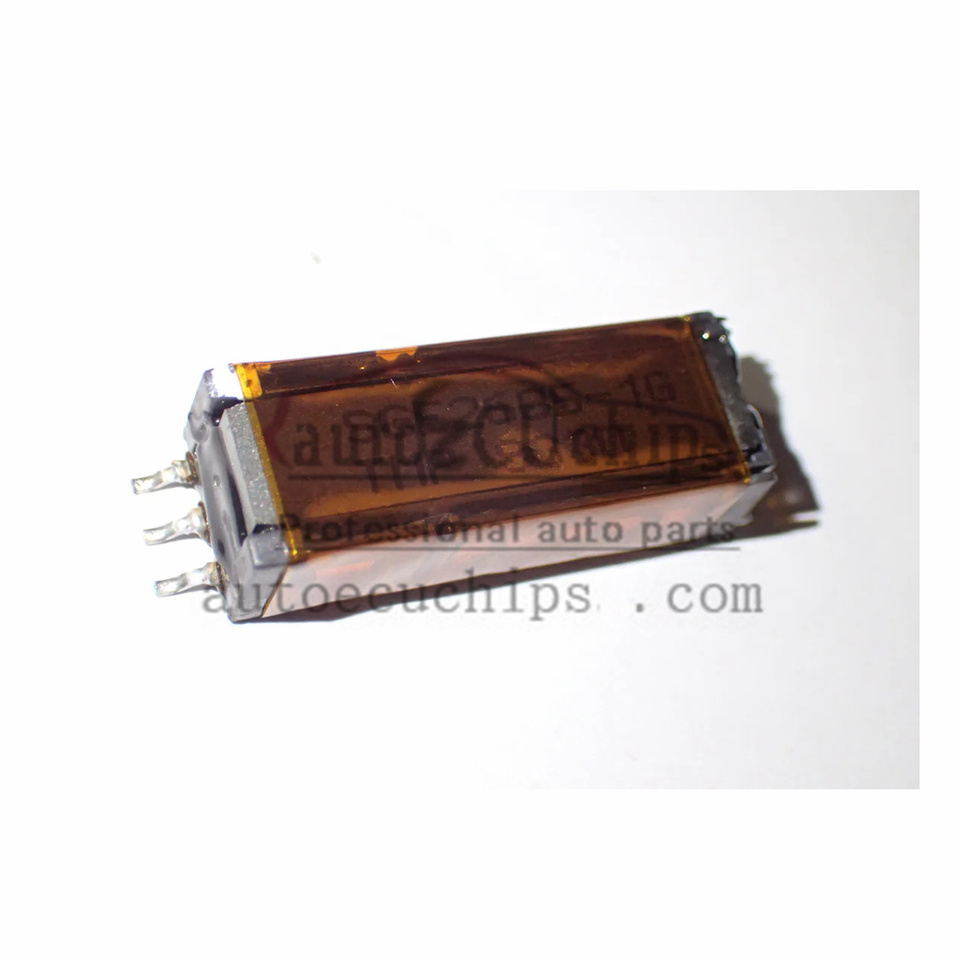

5pcs SGE2685-1G SGE 2685 1 G transformer High Voltage Transformer case Repair Audi A6/Q7 Mercedes instrument cluster LCD LB070WV1-TD01
The SGE2685-1G parts manufactured by autoecuchips.com are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The SGE2685-1G components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the SGE2685-1G Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The SGE2685-1G is a high-voltage transformer manufactured by Microsemi Corporation (now Microchip Technology) for use in cold cathode fluorescent lamp (CCFL) inverter power supplies. The following are detailed information about this chip:
- Features:
- 7W Power
- 62.5:1 Variable Voltage Ratio
- RoHS compliant, lead-free design
- High reliability
Technical Parameters
- Power: 7W
- Transformer ratio: 62.5:1
- Operating Voltage: Typically 12V
- Operating temperature range: -40°C to +85°C
- Storage temperature range: -40°C to +85°C
- Humidity range: 10% to 90% RH (non-condensing)
- Electrical Characteristics:
- Inductance (@10kHz,0.1V):
- L1-2, L2-3: 112µH to 152µH
- L4-5: 1.6mH to 2.05mH
- DC resistance:
- RDC1-2,RDC2-3: 225mΩ to 253mΩ
- RDC4-5: 563Ω to 620Ω
- Quality factor (Q):
- Q1-2, Q2-3: 15 to 18
- Q4-5: 20 to 24
- Maximum Output Power: 7W
- Maximum Output Voltage: 1600VRMS
- Insulation Voltage:
- Secondary to core: 2500VRMS (1 minute)
- Primary to core: 1000VRMS (min)
- Primary to secondary: 2500VRMS (min)
Application Scenarios
- Automobile dashboard background light: used for the dashboard background light of Audi A6, Q7, Mercedes-Benz C-Class and other models.
- CCFL Inverter Power Supply: Inverter power supply for cold cathode fluorescent lamps.
Cautions
- COMPATIBILITY: Before purchasing, please make sure the transformer is compatible with your application.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
- STORAGE CONDITIONS: It is recommended that the transformer be kept in a dry storage cabinet to avoid humidity.
SUMMARY
The SGE2685-1G is a high performance high voltage transformer for a wide range of automotive dashboard backlight and CCFL inverter power applications. Its high reliability and RoHS compliant design make it an excellent performer in automotive electronic systems.
