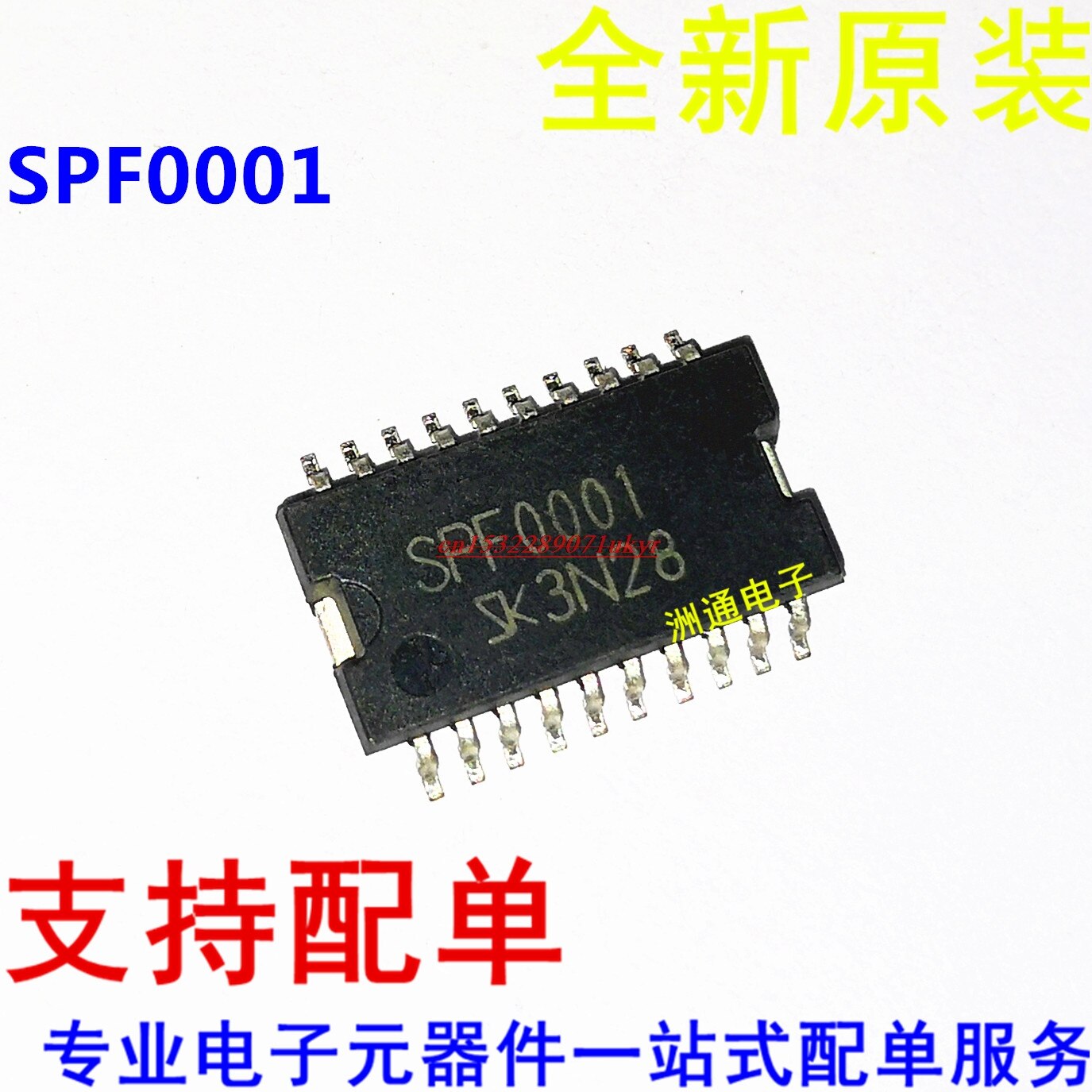

5pcs SPF0001 SPF0001-VF HSOP20 Original Car Audio Amplifier Chips Repair Chipnet

Automotive Chip Details: SPF1001-VF HSOP20 Dual NPN Transistor
Component Overview
Model: SPF1001-VF (may be similar to SPF0001-VF)
Package: HSOP20
Type: Dual NPN Transistor
Manufacturer: Sanken Electric Co.
Environmental standards: RoHS compliant
Package Characteristics (HSOP20)
Number of pins: 20
Package type: Heat Sink Plastic Small Outline Package (HSOP), which saves space and has good heat dissipation properties
Dimensions: length 15.9 mm, width 11.0 mm, height 3.35 mm
Mounting: Surface mount technology (SMD), suitable for rapid installation in automated production lines.
Technical parameters (refer to SPF0001-VF)
Collector-emitter voltage (VCEO): up to 115 volts
Collector Current (IC): Supports ±6A, suitable for bidirectional current handling
Power consumption (PC): up to 2.5 watts
DC current gain (hFE): ranges from 400 to 1500, providing flexible current amplification capability
Saturation Voltage (VCE(sat)): only 0.12 volts maximum, helping to reduce power loss
Polarity: NPN type to meet specific circuit design requirements
Built-in protection: Equipped with a built-in Zener diode to provide overvoltage protection.
Application Scenarios
Automotive audio amplifiers: Ideal for use in car audio systems to provide efficient power amplification.
General electronics: Suitable for all types of circuits requiring high currents and low saturation voltages.
Industrial Controls: Can be used for motor drives or other industrial scenarios requiring high power handling.
Summary
The SPF1001-VF HSOP20 is a high-performance dual NPN transistor especially suited for automotive audio amplifiers and general-purpose electronic devices. Its compact HSOP20 package design offers the advantages of low saturation voltage, high current handling, and a built-in Zener diode. For more technical support or purchase information
