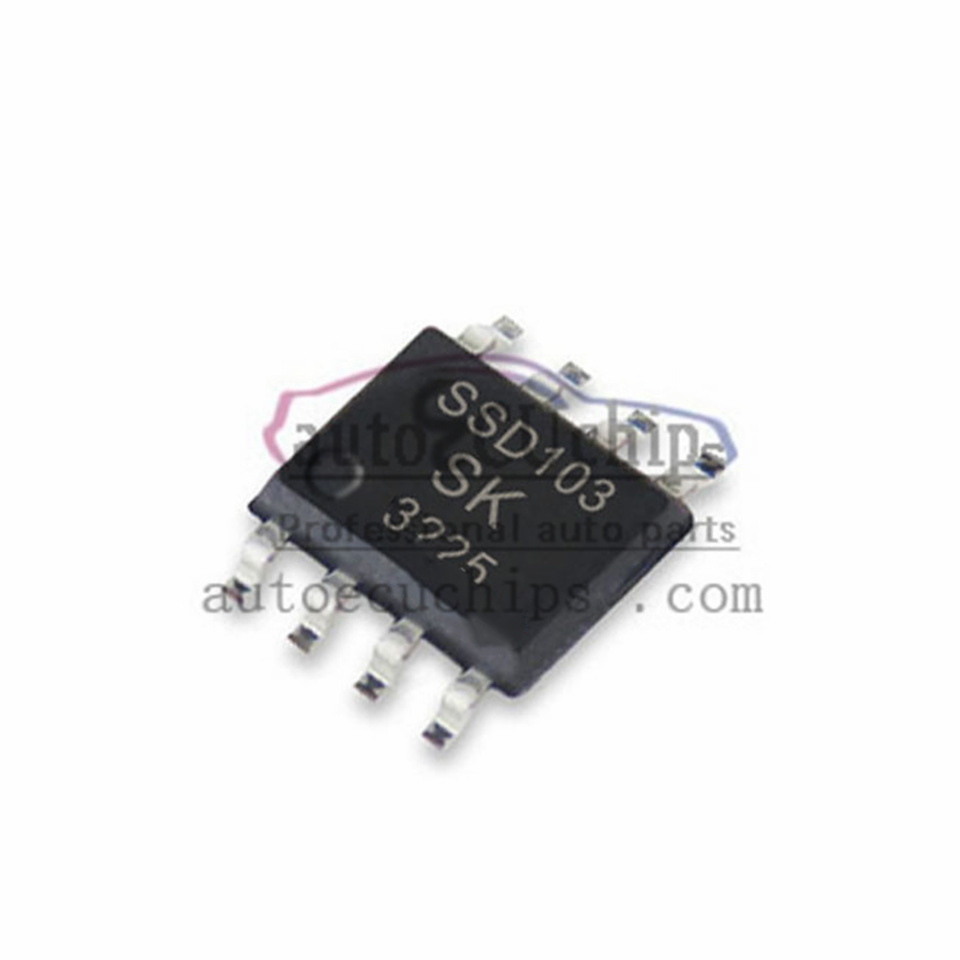

New Original 10PCS SK SSD103 SOP8 Car injection Driver IC Chip Repair Honda Motor Chipnet
The SSD103 parts manufactured by autoecuchips.com are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The SSD103 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the SSD103 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
SSD103 is a Surface-mount Power Transistor (SSD103) manufactured by Sanken Electric, which is widely used in automotive electronics, industrial automation and power management. The following are detailed information about this chip:
- Features:
- Low saturation voltage (VCE(sat))
- Built-in Zener diode between collector-emitter
- High DC current amplification (hFE)
- RoHS compliant
Technical Data
- Maximum collector-emitter voltage (VCEO): 65V
- Maximum collector current (IC):
- Continuous: 6A
- Pulse: 10A (pulse width ≤ 300μs, duty cycle ≤ 2%)
- Maximum power consumption (Pd):
- At 25°C: 1.5W
- Operating temperature range (Tj): -55°C to +150°C
- Storage temperature range (Tstg): -55°C to +150°C
- DC Current Amplification (hFE):
- Minimum: 400
- Maximum: 1500
- Saturation voltage (VCE(sat)):
- Max: 0.2V (at IC=6A)
- Package type: SOP-8
Application Scenarios
- Automotive electronics: for automotive electronic control units (ECUs), engine control units (ECUs), etc.
- Industrial automation: for high-efficiency power conversion and motor drives.
- Power management: for high-frequency switching applications.
- Injectors: For automotive fuel injection systems.
Precautions
- Compatibility: Before purchasing, please verify that the chip is compatible with your application.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
- STORAGE CONDITIONS: It is recommended to store in a dry storage cabinet to avoid humidity.
SUMMARY
The SSD103 is a high performance surface mount power bipolar transistor for a wide range of automotive electronics and industrial automation applications. Its low saturation voltage and high DC current amplification make it an excellent performer in high-efficiency power conversion and motor drives.
