The SUB75N08-10 parts manufactured by Vishay are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The SUB75N08-10 components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the SUB75N08-10 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.

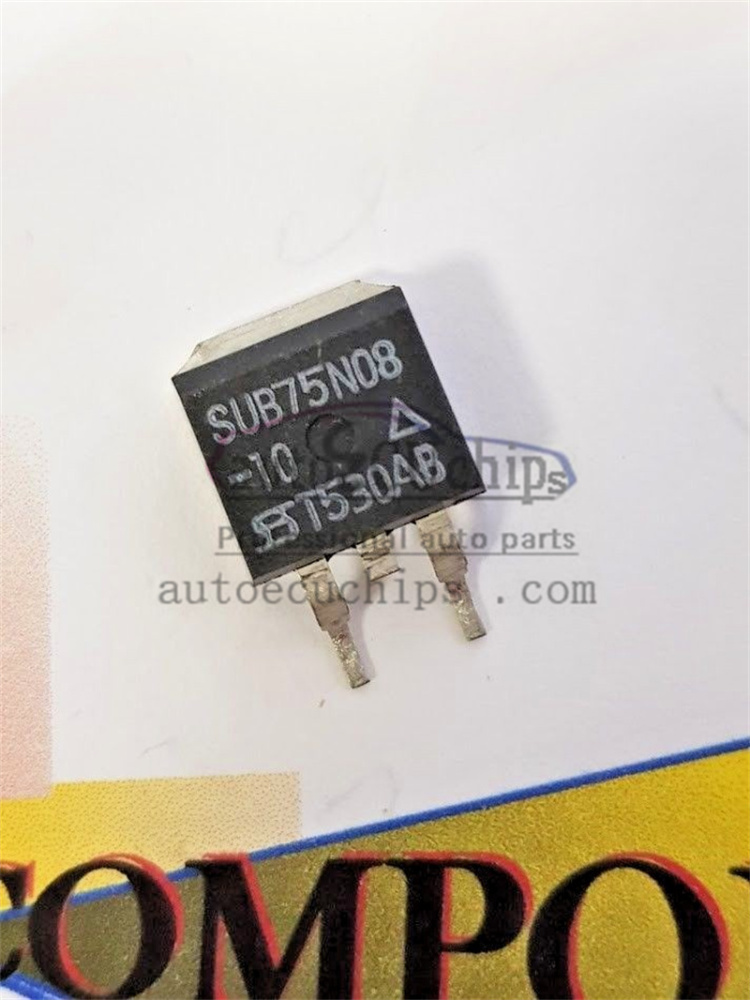

Below are detailed information about the SUB75N08-10 chip:
- Features : N-channel enhancement MOSFET with low on-resistance, high current carrying capacity, and fast switching speed to improve system efficiency and reliability.
Applicable Models and Brands
SUB75N08-10 chips are widely used in the electronic control systems of many automobile brands, the following are some common applicable models and brands:
- BMW: such as the electronic control system of BMW 3-series, 5-series, 7-series and other models.
- Mercedes-Benz: Electronic control systems for Mercedes-Benz C-Class, E-Class, S-Class, etc.
- Volkswagen: Electronic control systems for Volkswagen Golf, Passat, Maeten, etc. Toyota: Electronic control systems for Toyota Corolla, etc.
- Toyota: Electronic control systems for Toyota Corolla, Camry, etc.
Parameters
- Maximum drain-source voltage (Vds): 75V.
- Maximum gate source voltage (Vgs): ±20V.
- Continuous drain current (Id): 75A.
- On-resistance (Rds(on)): 4.5mΩ typical at Vgs = 10V.
- Power dissipation (Pd): 187W.
- Operating Temperature Range (Tj): -55°C to +175°C.
- Input capacitance (Ciss): 4800pF.
- Output capacitance (Coss): 250pF.
- GATE CHARGE (Qg): 35.5nC.
- Rise time (tr): 8ns.
- Falling time (tf): 8ns.
- Package size: TO-263 package size is approximately 6.73mm x 9.65mm x 4.83mm.
Precautions
- Compatibility : Before purchasing, be sure to check if the SUB75N08-10 chip is compatible with your application, we recommend referring to the official design document for your specific application or consulting a professional.
- Mounting and Soldering :
- Be careful to control the temperature and time when soldering to avoid damage to the chip.
- Connect the circuit according to the correct pin definition to prevent the chip from being inoperative or damaged due to wrong wiring.
- Add necessary protection circuits in the circuit design, such as over-voltage protection, over-current protection, etc., to ensure the stable operation of the chip in the electronic system.
- Use suitable decoupling capacitors to reduce the impact of power ripple on the chip.
Summary: SUB75N08-10 chips are widely used in automotive electronic systems and industrial control and other fields because of their excellent performance and reliability. In the process of procurement and use, pay attention to the compatibility and installation specifications of the chip, and make full use of the available technical support resources to ensure its stable operation in the electronic system.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
