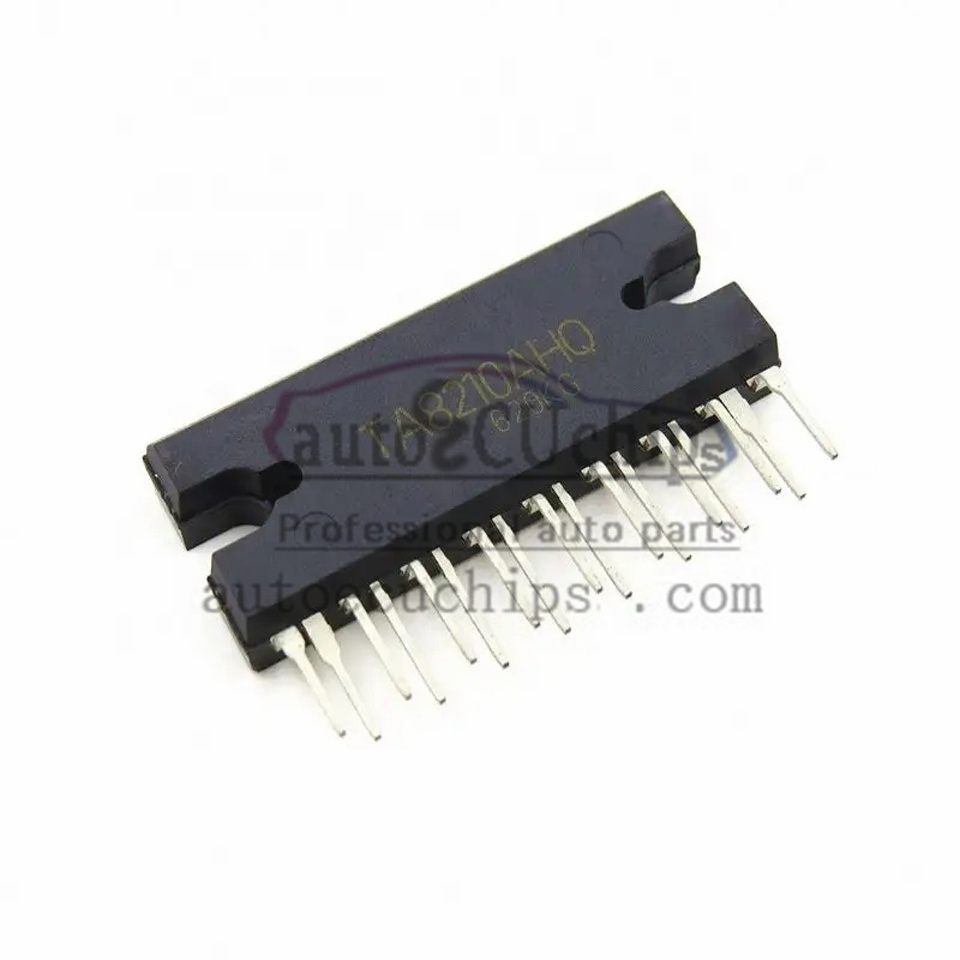

5pcs TA8210AH TA8210AHQ TA8210 ZIP17 Car Audio Amplifier IC Repair Driver
The TA8210AHQ parts manufactured by TOSHIBA are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The TA8210AHQ components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the TA8210AHQ Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about the TA8210AHQ chip:
Technical Parameters
- Output power: 20W BTL × 2ch
- Operating voltage: 9V to 18V
- Output current: 9A instantaneous peak
- Maximum power consumption: 50W
- Operating temperature range: -30°C to +85°C
- Total Harmonic Distortion (THD): 0.04% (standard) (VCC = 13.2V, f = 1kHz, POUT = 1W, RL = 4Ω, GV = 50dB)
- Output Noise Voltage: 0.30 mVrms (standard) (VCC = 13.2V, RL = 4Ω, GV = 50dB, Rg = 0Ω, BW = 20Hz20kHz)
- Voltage Gain: 48-52 dB
- Input impedance: 30 kΩ
- Output Offset Voltage: ±0.3V
- Mute function: Supported, enabled by (1) pin Low
- Standby function: Supported, enabled by pin (4) Low.
- Protection: Thermal shutdown, overvoltage, antenna short circuit, ground short circuit, load short circuit
Features
- High output power: Up to 20W per channel (in BTL mode) for car audio systems.
- Low distortion: Total harmonic distortion as low as 0.04%, ensuring high fidelity of audio output.
- Low Noise: Output noise voltage as low as 0.30mVrms, providing a clear audio experience. Multiple Protection Functions: Built-in thermal shutdown.
- Multiple protection functions: Built-in thermal shutdown, over-voltage, short-circuit and other protection mechanisms to ensure the safety of the chip in abnormal conditions.
- Standby and Mute Function: Supports standby and mute function, which can be pin-controlled to reduce power consumption and avoid unnecessary noise.
- Low thermal resistance design: Peripheral devices with low thermal resistance and good heat dissipation can reduce the rise of chip temperature and minimize the impact of high temperature on performance.
Cautions
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your car audio system.
- Installation Instructions:
- Make sure the chip is mounted in the right direction and the pins are aligned with the pads on the board.
- During the soldering process, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
