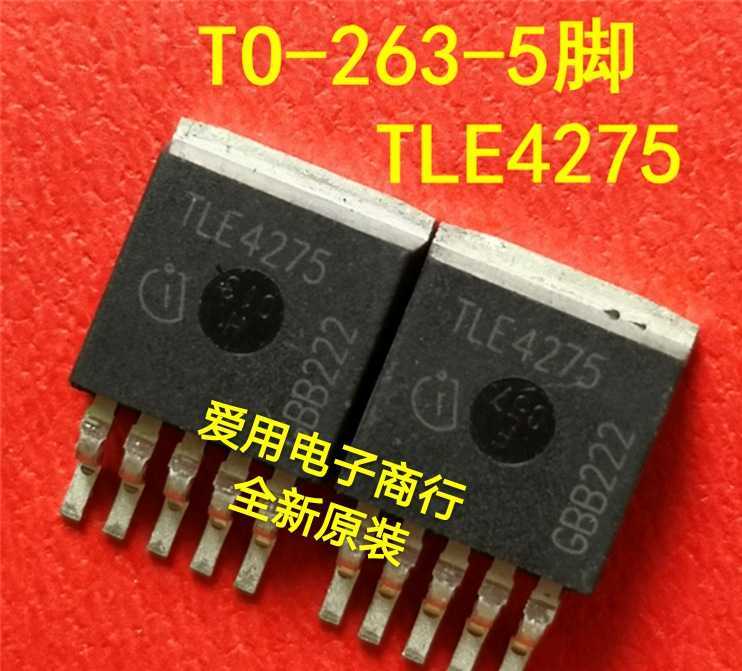

The TLE4275Q parts manufactured by TI are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The TLE4275Q components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the TLE4275Q Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The following provides detailed information regarding the TLE4275Q chip:
Technical Parameters
- Output Voltage: 5.0 V ± 2% (Fixed Output)
- Maximum Output Current: 450 mA (Typical), 500 mA (Select Versions)
- Input Voltage Range: 5.5 V – 45 V (45 V Max Transient)
- Dropout Voltage: 170 mV (Typical) @ 250 mA; 500 mV (Max) @ 450 mA
- Quiescent Current (Iq): 170 µA (Typical); 300 µA (Max)
- Shutdown Current: 1 µA (Typical)
- Operating Junction Temperature Range: -40°C to +150°C (Automotive Grade)
- Thermal Shutdown Temperature: 175°C (Typical); 15°C Hysteresis
- Protection Features:
- Thermal Shutdown
- Short-Circuit Protection (Current Limit)
- Reverse Polarity Protection
- Overvoltage Protection
- Reset Function (RESET):
- Power-On Reset
- Undervoltage Reset
- Reset Threshold: 4.65 V (Typical) (during output voltage drop)
- Reset Delay: Programmable via external capacitor on DELAY pin
- Package Thermal Resistance:
- TO-263-5 (KTT): θJA ≈ 38.8°C/W, θJC ≈ 2.6°C/W
- TO-252-5 (KVU): θJA ≈ 55.6°C/W, θJC ≈ 3.2°C/W
- HTSSOP-20 (PWP): θJA ≈ 43.4°C/W, θJC ≈ 4.7°C/W
Pin Configuration (TO-263-5 / TO-252-5)
Pin Name Function
1 IN Input Voltage; requires a ceramic bypass capacitor connected to GND.
2 RESET Open-drain reset output; requires an external pull-up resistor.
3 GND Ground; internally connected to the heat sink.
4 DELAY Reset delay time setting; requires an external capacitor connected to GND.
5 OUT Regulated Output; requires a capacitor of ≥ 22 µF connected to GND.
Typical Application Circuit
- Input Capacitor: 10 µF electrolytic + 100 nF ceramic (placed close to the IN pin).
- Output Capacitor: 22 µF to 500 µF, ESR 1 mΩ – 20 Ω (low-ESR X5R/X7R ceramic capacitors are recommended).
- DELAY Capacitor: 100 pF to 500 nF; determines the RESET delay time.
- RESET Pull-up Resistor: Typically 10 kΩ to 100 kΩ.
Alternative Models
Model Manufacturer Key Differences
TLE720M05 Infineon Higher current capability.
TLV1117-50-Q1 TI 1A output; no reset function.
TL431 + External Transistor Multiple Requires external adjustment components; lower cost.
TPS7B86-Q1 TI 500 mA output; includes Power-Good function.
TPS7B87-Q1 TI 500 mA output; adjustable output voltage.
Important Notes
- Compatibility: The TLE4275Q features a fixed 5V output and is non-adjustable; if a different voltage is required, please select an adjustable model or an alternative solution.
- Installation Guidelines:
- TO-263/TO-252 packages require adequate heat dissipation; a copper pad area of ≥ 6 cm² (single-layer PCB) is recommended, or use thermal vias to conduct heat to internal PCB layers.
- The capacitor connected to the DELAY pin determines the reset delay time; a typical value of 100 nF corresponds to a delay of approximately 10 ms. The specific delay can be calculated using the formula: t_delay ≈ C_DELAY × 0.7 V / 2.2 µA. - Excessive ESR in the output capacitor may lead to instability; priority should be given to X5R/X7R ceramic capacitors or low-ESR tantalum capacitors.
- Technical Support: For further technical assistance, it is recommended to contact Texas Instruments or an authorized distributor.
Summary
The TLE4275Q is a high-performance, automotive-grade 5V low-dropout (LDO) regulator manufactured by Texas Instruments. It integrates various functions—including power-on/undervoltage reset, overtemperature protection, short-circuit protection, and reverse-polarity protection—making it suitable for providing regulated 5V power within 12V/24V automotive power systems. Its wide input voltage range, ultra-low quiescent current, and comprehensive protection mechanisms ensure high practicality and reliability in automotive body electronics applications, such as instrument clusters, Body Control Modules (BCMs), and HVAC systems.
