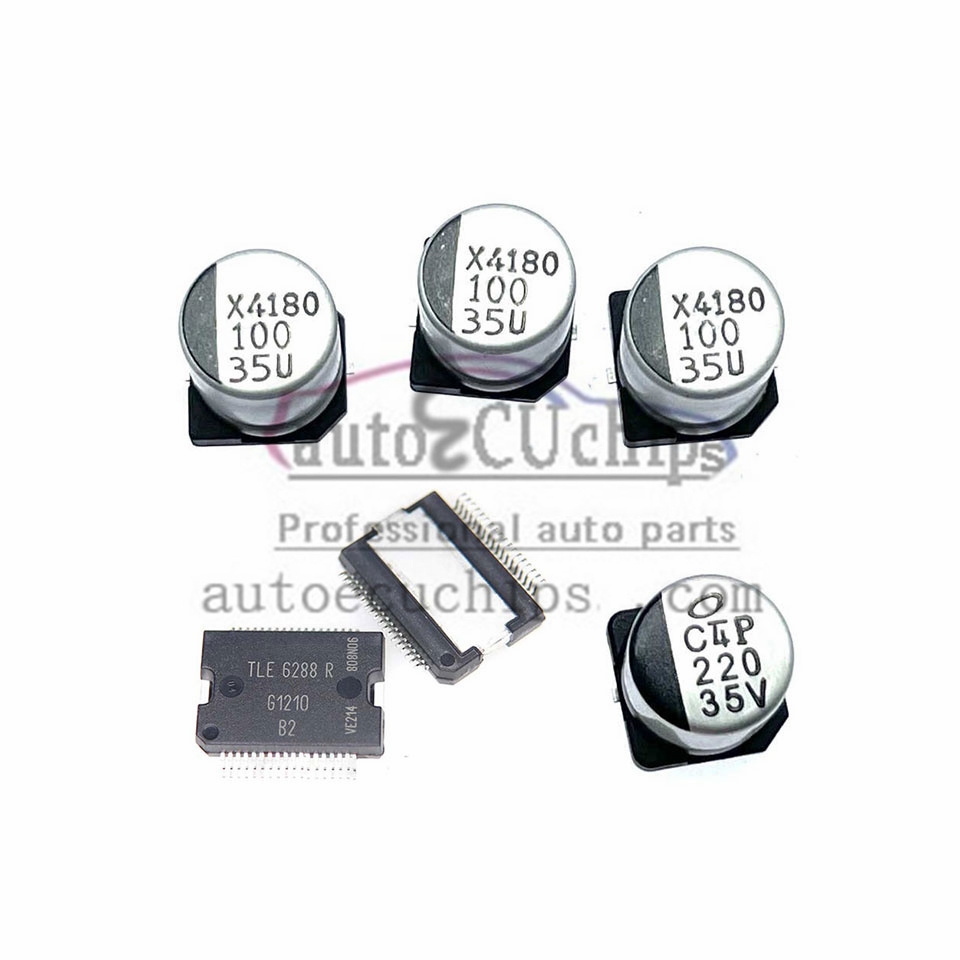

TLE6288R 100UF35V 220UF P0748 Repair Kit hyundai Engine Gearbox ECU Board Electronic Pressure Control Battery Calve Chip Driver
The TLE6288R parts manufactured by Infineon are available for purchase at Autoecuchips.com. Here you can find various types and values of electronic parts from the world's leading manufacturers. The TLE6288R components of Autoecuchips.com are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on Autoecuchips.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the TLE6288R Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
Below are detailed information about the TLE6288R chip:
Technical Parameters
- Number of channels: 6 channels
- On-resistance per channel: 150 mΩ
- Operating voltage: 4.5V to 5.5V
- Maximum output current: 2A per channel, 3.6A for the entire IC
- Maximum power consumption: 800 mW
- Operating temperature range: -40°C to +105°C
- Quiescent current: 50 µA
- Propagation delay: 200 ns
- Compatibility: Compatible with 3.3V and 5V microcontrollers
Functional Features
- High reliability: Embedded protections including over-current (current limit), over-temperature, and over-voltage (active clamp) protection.
- Diagnostic functions: over-current, over-temperature, open load (off state) diagnostic functions.
- Flexible Configuration: Channels 1-3 are high-side channels with integrated charge pumps and can be individually programmed for autonomous peak and hold current adjustment; channels 4-6 also have integrated charge pumps and can be configured as high-side or low-side switches.
- Multiple operating modes: Configurable as high-side or low-side switches for a wide range of automotive applications.
- Low power consumption: Low quiescent current for battery powered applications.
- Electromagnetic compatibility: Electrostatic discharge (ESD) protection on all pins.
- Environmental compliance: RoHS compliant.
Applicable Automobile Makes and Models
- Volkswagen: The TLE6288R is used as a solenoid driver chip in the engine computer boards of Volkswagen's Maeten and other models, responsible for controlling the solenoid valves of the engine and transmission to ensure the precise operation of the vehicle's drivetrain.
- Hyundai: TLE6288R is used in the engine computer board of Hyundai Maiten and other models to drive the solenoid valves and control the vehicle's drivetrain, solving problems such as P0748 (Electronic Pressure Control Solenoid Valve A Failure).
- BMW: TLE6288R is used in the transmission computer of some BMW models to drive the solenoid valve and ensure the normal operation of the transmission.
- Mercedes-Benz: TLE6288R is used in the transmission control system of some Mercedes-Benz models to drive the solenoid valve to realize precise control of the transmission.
Cautions
- COMPATIBILITY: Before purchasing, please make sure the chip is compatible with your automotive electronic system.
- Installation Instructions:
- Make sure the chip is mounted in the correct direction and the pins are aligned with the pads on the board.
- During soldering, pay attention to temperature control to avoid overheating and damaging the chip.
- Take appropriate static protection measures to avoid static electricity damage to the chip.
- Technical Support: If further technical support is required, it is recommended to contact the supplier or manufacturer.
Summary
The TLE6288R is a high-performance 6-channel intelligent multichannel switch manufactured by Infineon Technologies for a wide range of automotive electronics applications. Its high reliability, multiple protection features, and flexible configurations make it an excellent performer in automotive electronic systems.
Welcome to our shop!
Dear friends, if you are very interested and want to order a large number, you can contact us through Whatsapp, Wechat, email or Skype, and we will reply to you within 24 hours.
Product Description:
1.The picture only supplies the reference It may not be the exact one as in our stock because of difr NO.
2.We will ship the items within 3 working days after the payment is reached.
3.When the parts arrive at your local customs, if the parts are charged with customs duties, we are not responsible for any customs duties or import taxes.
REFUNDS & RETURN:
We offer a warranty on all items that we sold. Item will be tested before ship, it will be in good condition, if there are some problems with the item, feel free to contact us.
You must contact us before returning any product . Return must be in new condition (Buyer should return all original and undamaged items under re-saleable condition).
Return the goods and the buyer is responsible for all expenses!!
If you are satisfied with our products, please give positive feedback. Thank you for your help. If you are not satisfied, please let us know. Your constructive suggestions will become the driving force for our modification and improvement. Thanks for your understanding.
